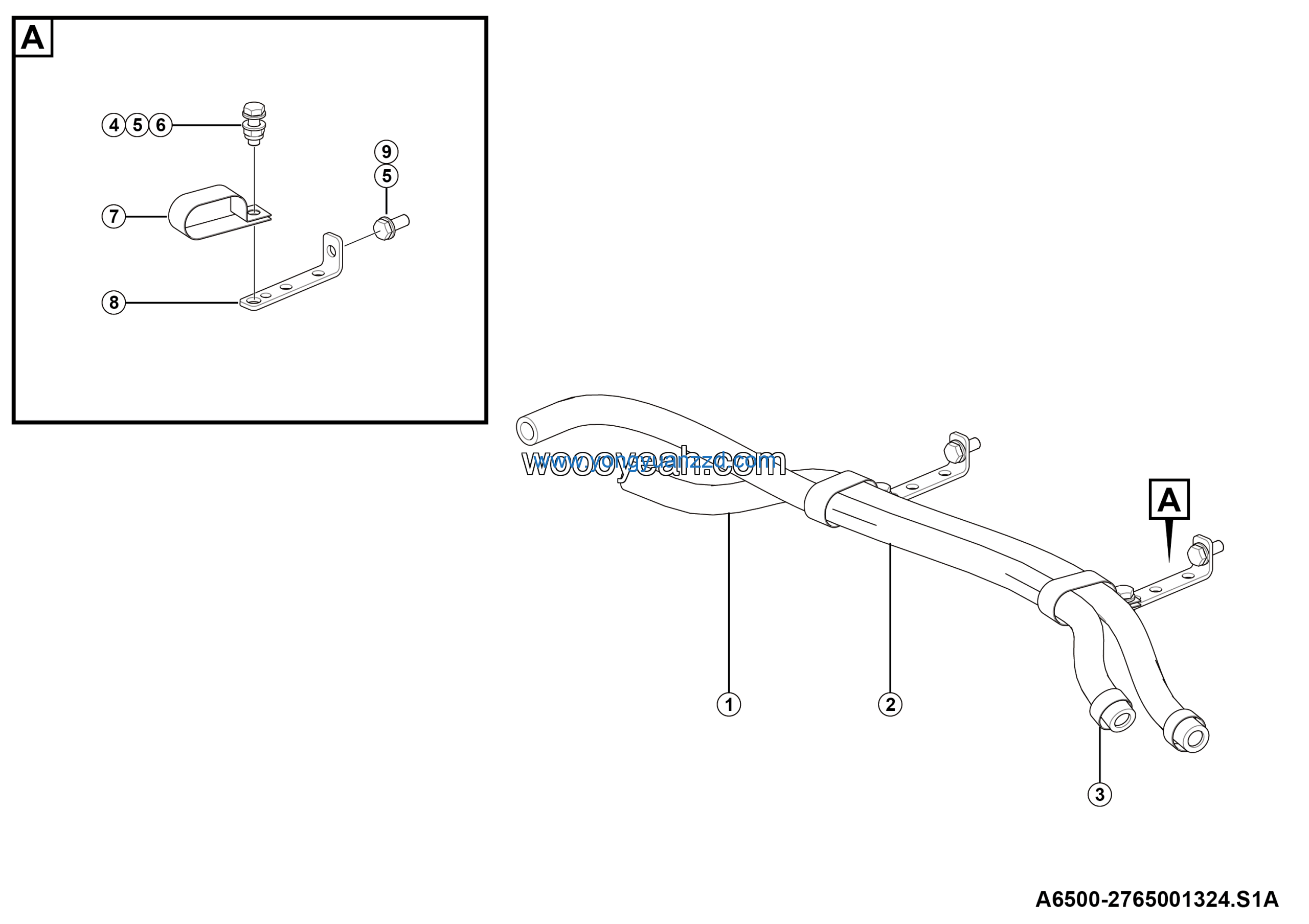

LGMG Mine Truck 2026 – Transmission cooling line assy – A6500-2765001324.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A241
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose 16*5*870 | 27650012411 | 1 |
| 2 | Hose 16*5*880 | 27650012401 | 1 |
| 3 | Clamp φ20-φ32 | 4190710045 | 2 |
| 4 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 2 |
| 5 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 6 |
| 6 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 2 |
| 7 | Double hole R-type clamp R-D32*2-M10 | 4190707988 | 2 |
| 8 | Plate | 27010113352 | 2 |
| 9 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
