LGMG Mine Truck Mine Truck – Air conditioner assembly – N2100-2721010235
Category: Mine Truck > Mine Truck > M0860WE40

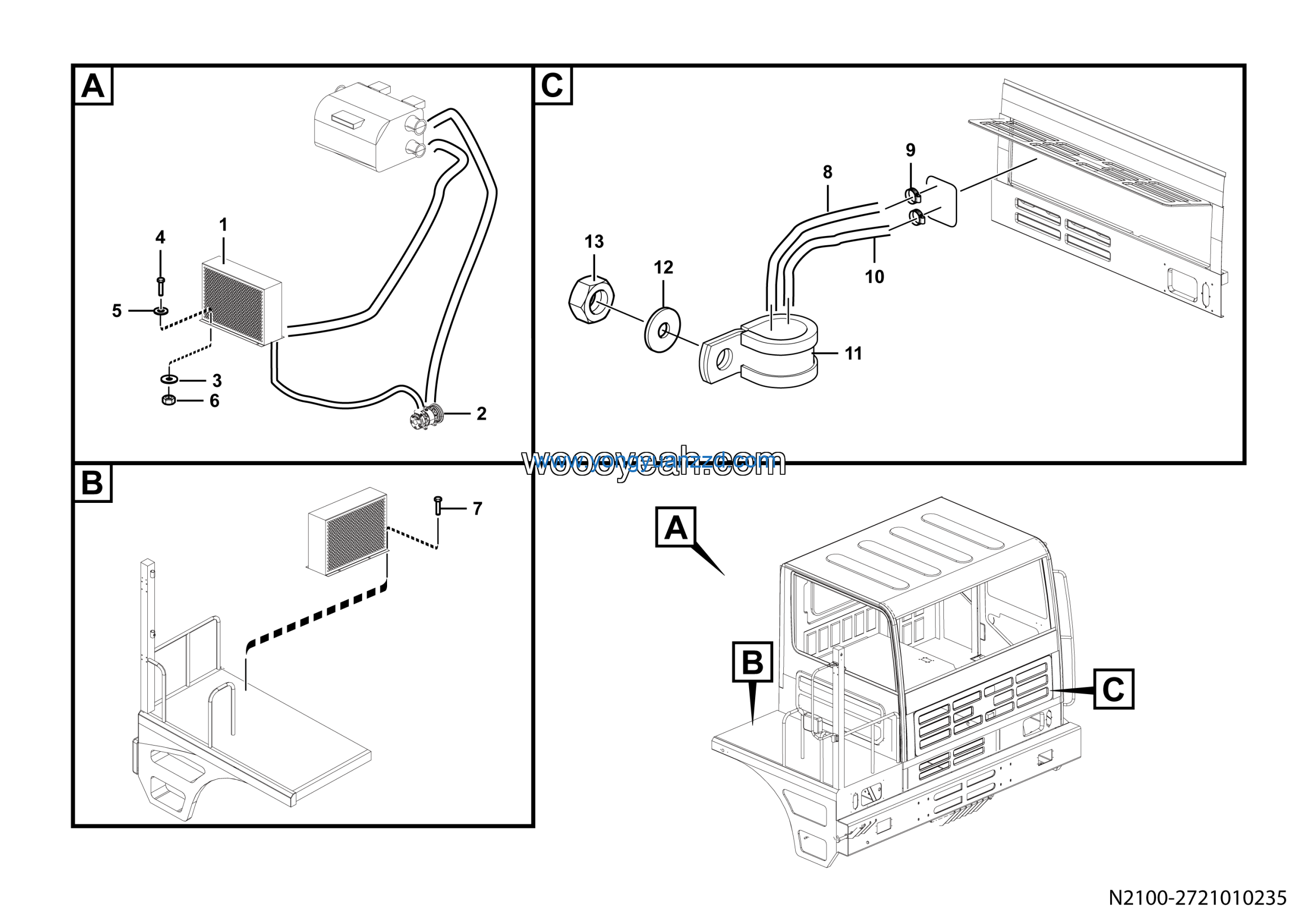

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Heating pipe(outlet) | 27210101682 | 1 |
| 2 | Double nipple clamp | 27210101701 | 2 |
| 3 | Washer GB96.1-6EpZn-300HV | 4015000198 | 2 |
| 4 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 5 | Condenser installation assembly | 4190001482 | 1 |
| 6 | Compressor assembly | 27210102671 | 1 |
| 7 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 8 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 10 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 11 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 6 |
| 12 | Heating pipe (suction) | 27210101672 | 1 |
| 13 | Hose clamp JB8870-D32 | 4017000011 | 4 |
