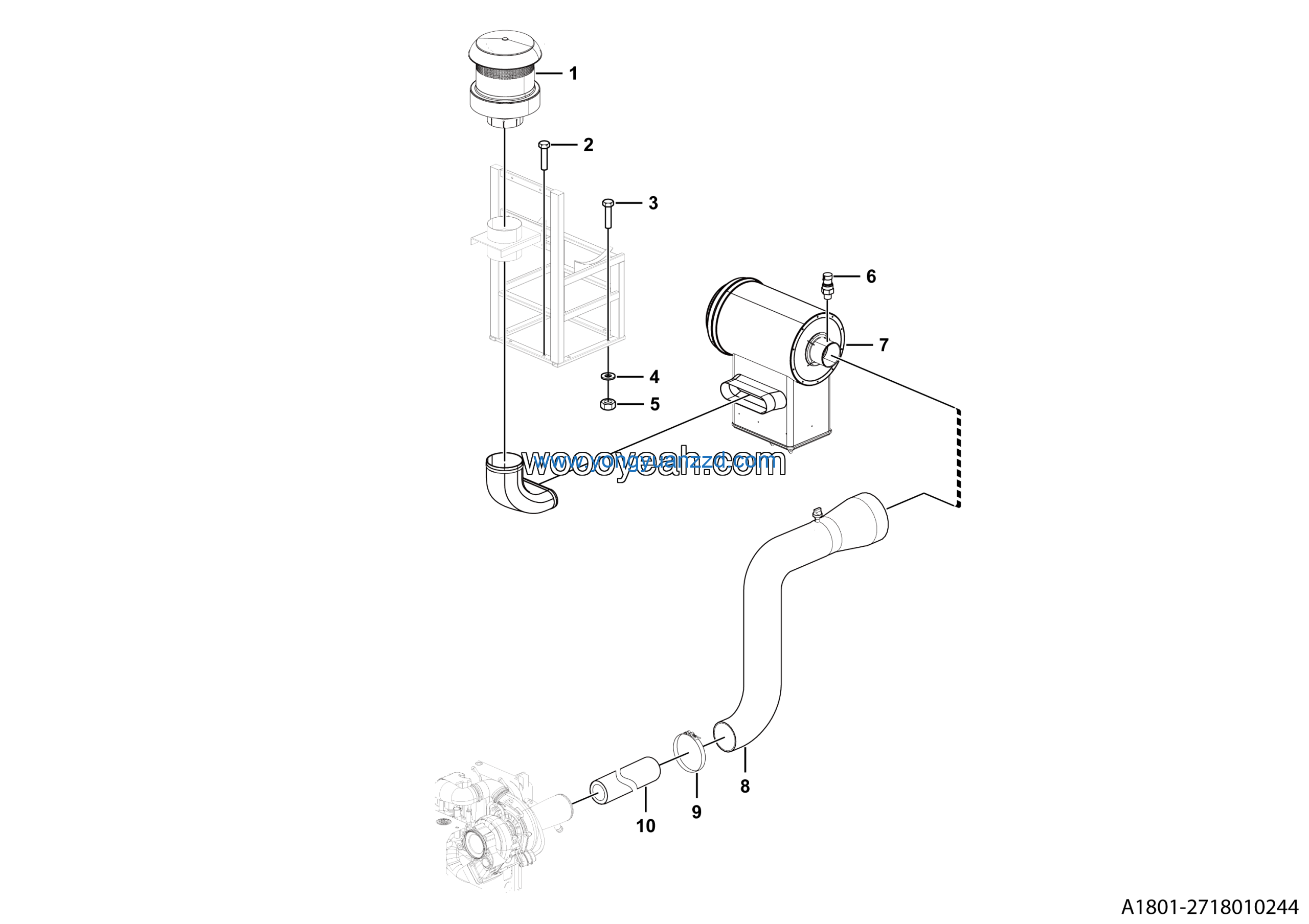

LGMG Mine Truck Mine Truck – Air filter assy – A1801-2718010244
Category: Mine Truck > Mine Truck > M0860WBH0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe | 27180102192 | 1 |
| 2 | Cyclone coarse filter subassy 1000293601 | 4110001274 | 1 |
| 3 | Bolt GB5782-M12*50EpZn-8.8 | 4011000064 | 4 |
| 4 | Bolt GB5782-M12*90EpZn-8.8 | 4011000414 | 4 |
| 5 | Washer GB96.1-12EpZn-300HV | 4015000186 | 16 |
| 6 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 7 | Air filter blockage alarm 1000267954 | 4110001277 | 1 |
| 8 | Dust air filter assy | 4110001275 | 1 |
| 9 | Engine intake pipe | 4190001653 | 1 |
| 10 | Hose clamp JB8870-D32 | 4017000011 | 2 |
