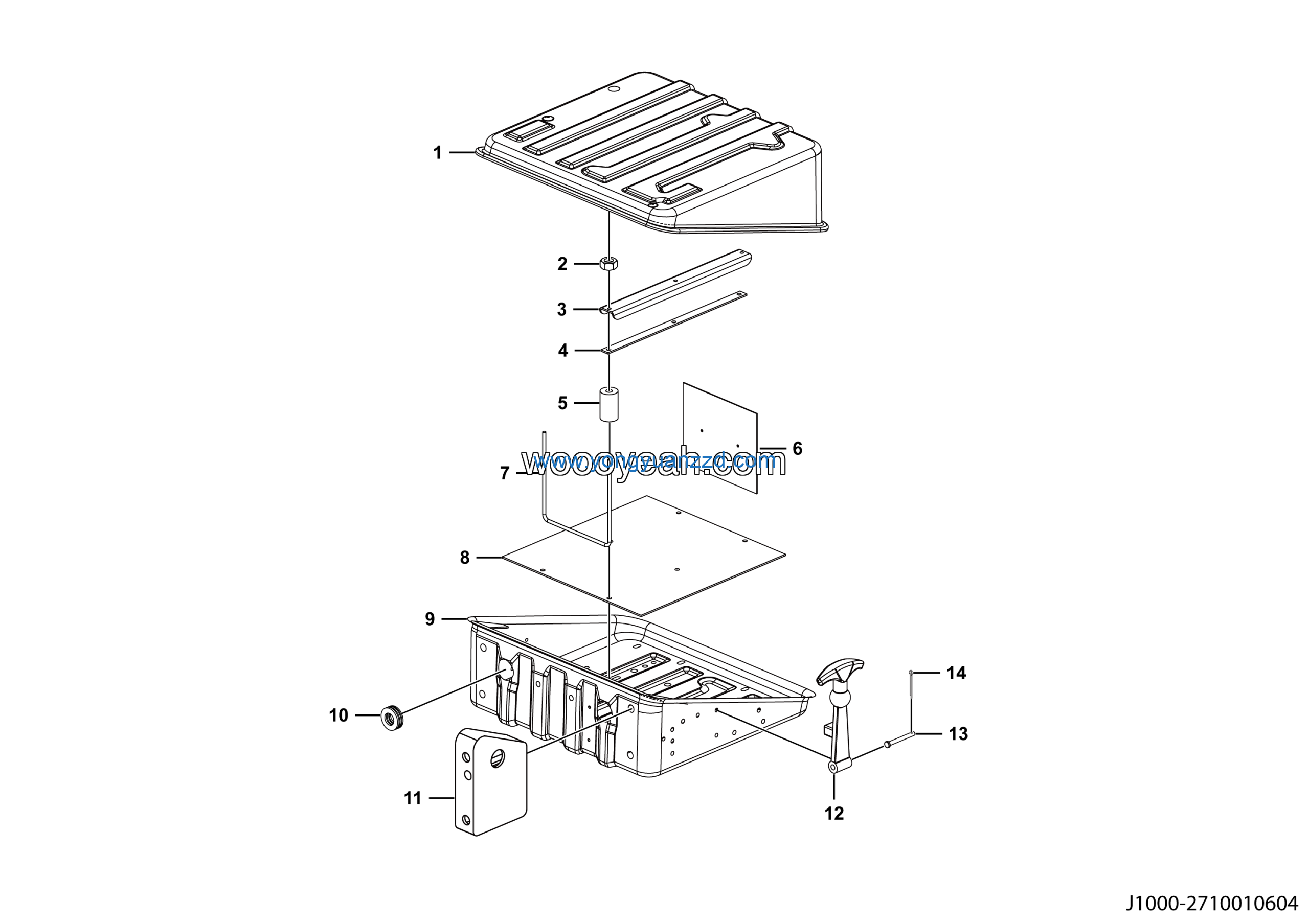

LGMG Mine Truck Mine Truck – Battery box assy – J1000-2710010604
Category: Mine Truck > Mine Truck > M0860WBB0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Threading sheath | 4120000222 | 1 |
| 2 | Battery box bracket | 4110000027 | 1 |
| 3 | Rubber hook | 4110000028 | 1 |
| 4 | Pin GB882-B4*50EpZn-35 | 4016010103 | 1 |
| 5 | Pin GB91-1*10EpZn-Q235A | 4016000096 | 1 |
| 6 | Battery box cover | 4110000026 | 1 |
| 7 | Nut GB6177.1-M8EpZn-8 | 4013010186 | 1 |
| 8 | Fastening channel steel | 4110000067 | 1 |
| 9 | Upr rubber plate | 4110000070 | 1 |
| 10 | Tighten the bolt damping block | 4110000072 | 1 |
| 11 | Mid partition rubber plate | 4110000071 | 1 |
| 12 | Tighten the hook | 4110000068 | 1 |
| 13 | Lower rubber sheet | 4110000069 | 1 |
| 14 | Battery box | 4120000333 | 1 |
