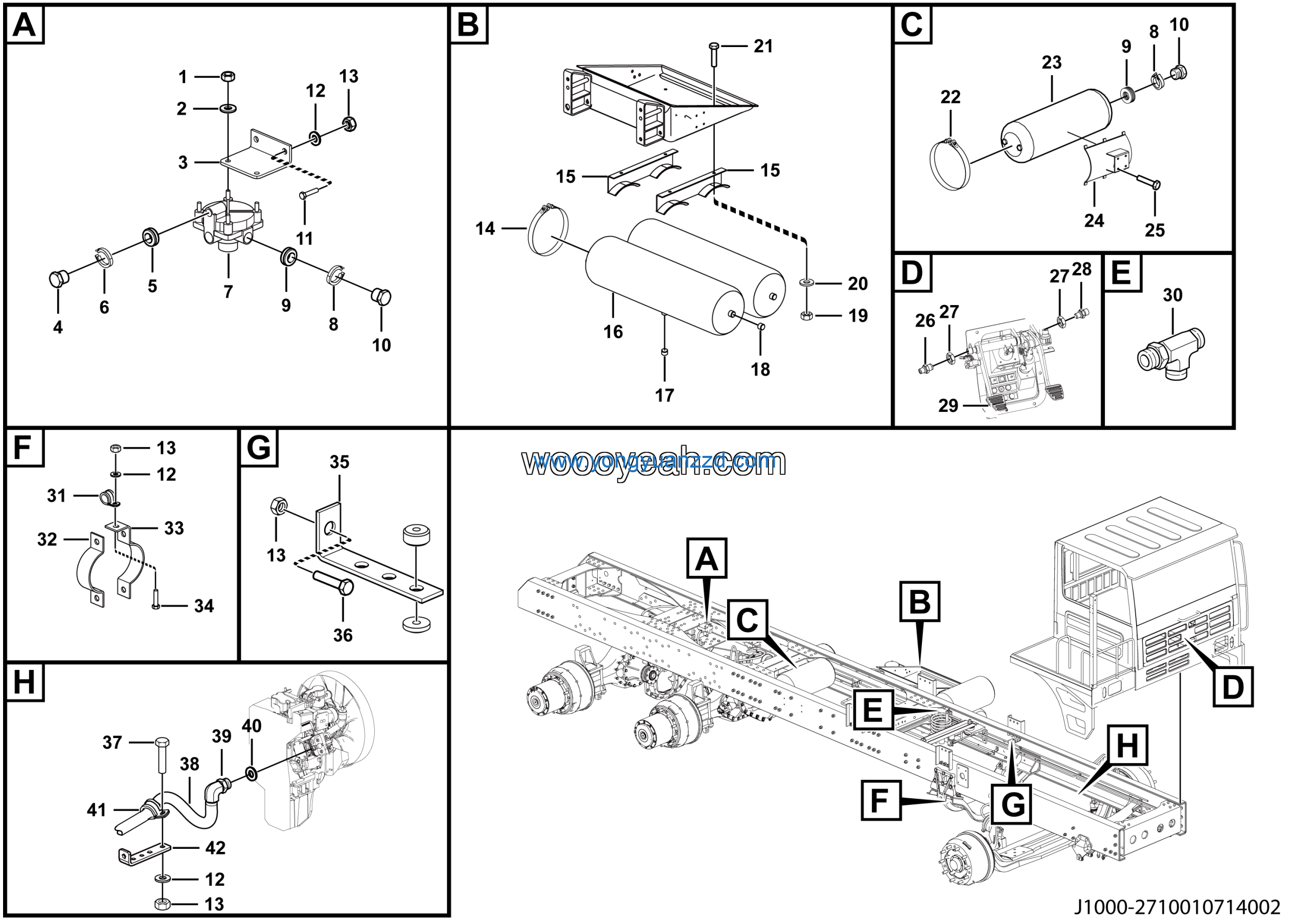

LGMG Mine Truck Mine Truck – Brake service assembly – J1000-2710010714002
Category: Mine Truck > Mine Truck > M0860WAK0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut seat NG12 | 4120000190 | 10 |
| 2 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 17 |
| 4 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 5 | Hose clamp φ280-φ295 | 4120000113 | 4 |
| 6 | Air reservoir bracket | 27100103652 | 2 |
| 7 | Air reservoir 50L | 4120000141 | 2 |
| 8 | Drain valve | 4120000200 | 3 |
| 9 | Plug NG12-M22*1.5 | 4120000201 | 2 |
| 10 | Nut GB6170-M12EpZn-8 | 4013000011 | 7 |
| 11 | Nut GB6170-M8EpZn-8 | 4013000033 | 3 |
| 12 | Washer GB97.1-12EpZn-300HV | 4015000168 | 10 |
| 13 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 7 |
| 14 | Hose clamp φ246-φ250 | 4120000177 | 2 |
| 15 | Air reservoir 30L（246） | 4120000143 | 1 |
| 16 | 30l reservoir bracket | 27100106861 | 1 |
| 17 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 18 | Straight bulkhead joint NG6/2-M16*1.5 | 4120000233 | 2 |
| 19 | Thin nut M16*1.5 | 4120000234 | 2 |
| 20 | M14-NPT1/8 bulkhead union | 27100106211 | 1 |
| 21 | Foot brake valve | 4120000133 | 1 |
| 22 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 23 | T-connector m14-npt1/8-m14 | 27100106991 | 1 |
| 24 | CLAMP | 27110102381 | 4 |
| 25 | Plate 2 | 27110102321 | 4 |
| 26 | Plate1 | 27110102311 | 4 |
| 27 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 6 |
| 28 | Bracket 1 | 27100103561 | 2 |
| 29 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 30 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 31 | Wired hose | 27100107621 | 1 |
| 32 | CONNECTOR | 27100100661 | 4 |
| 33 | Plate | 27100106811 | 1 |
| 34 | Washer JB982-16 | 4015000141 | 6 |
| 35 | Clamp | 27100107611 | 1 |
| 36 | Steel tube support | 27100105871 | 1 |
| 37 | Nut seat NG8 | 4120000194 | 1 |
| 38 | Clip spring NG8 | 4120000196 | 1 |
| 39 | Elastic element NG8 | 4120000197 | 1 |
| 40 | Relay valve | 4120001087 | 1 |
| 41 | Elastic element NG12 | 4120000193 | 10 |
| 42 | Clip spring NG12 | 4120000192 | 10 |
