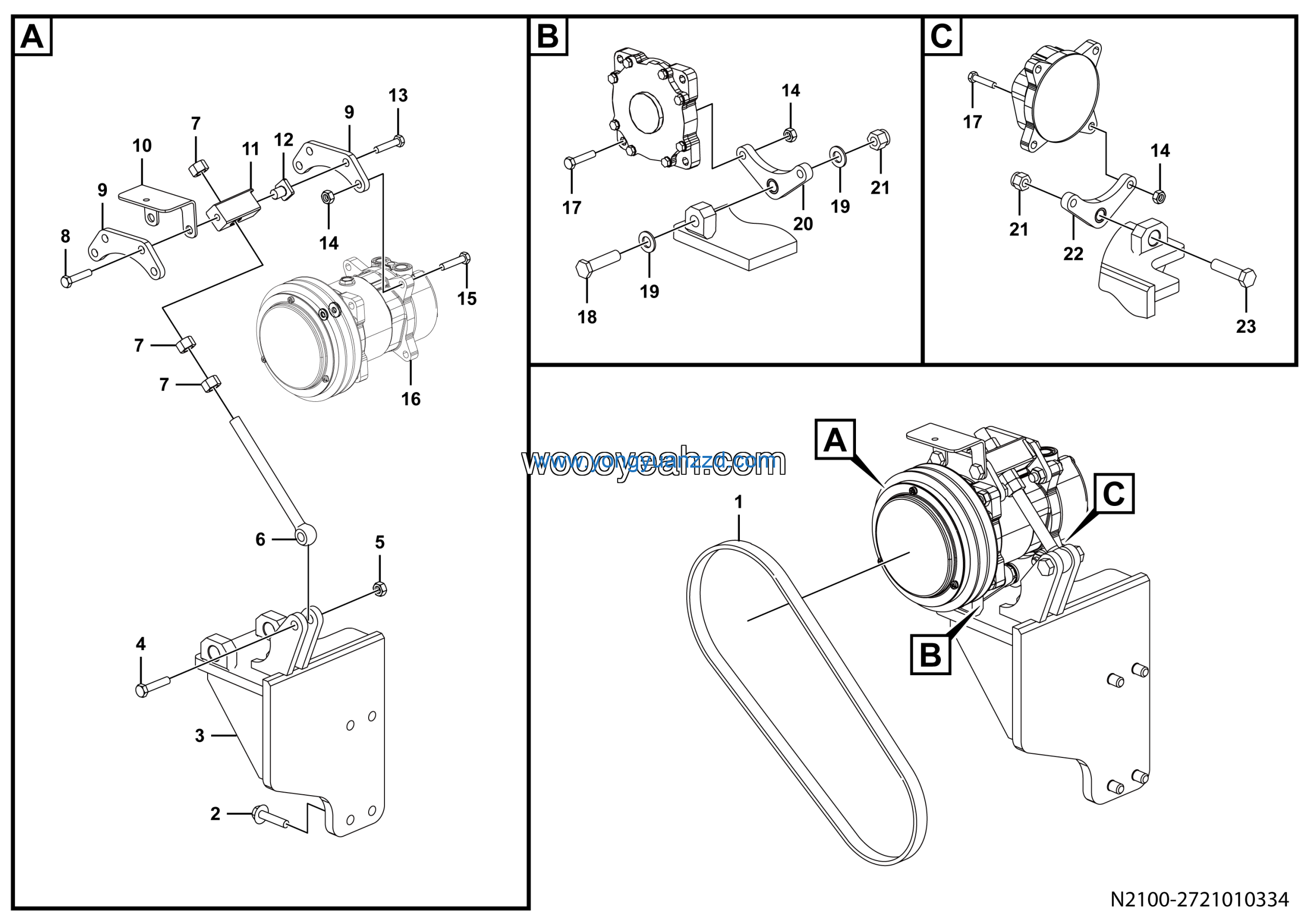

LGMG Mine Truck Mine Truck – Compressor mounting assy – N2100-2721010334
Category: Mine Truck > Mine Truck > M0860WBM0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe support | 27210103351 | 1 |
| 2 | Trimming block | 27210102931 | 1 |
| 3 | Active block | 27210102391 | 1 |
| 4 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 5 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 9 |
| 6 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 7 | Compressor assy | 4190001594 | 1 |
| 8 | Bolt GB5782-M10*40EpZn-8.8 | 4011000504 | 4 |
| 9 | Bolt-m14*55epzn- | 27210103331 | 1 |
| 10 | Washer GB97.1-14EpZn-300HV | 4015000177 | 2 |
| 11 | Compressor belt | 4190001660 | 1 |
| 12 | Front transition plate | 27210103151 | 1 |
| 13 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 14 | Rear transition plate | 27210103161 | 1 |
| 15 | BOLT GB5782-M14*55EpZn-8.8 | 4011000067 | 1 |
| 16 | BOLT GB16674-M12*30-12.9 | 4011010395 | 4 |
| 17 | Support block assembly | 27210103142 | 1 |
| 18 | Bolt GB5782-M12*55EpZn-8.8 | 4011000186 | 1 |
| 19 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 1 |
| 20 | Adjust stud | 27210102701 | 1 |
| 21 | Nut GB6171-M14*1.5EpZn-10 | 4013010007 | 3 |
| 22 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 23 | Transition plate | 27210102912 | 2 |
