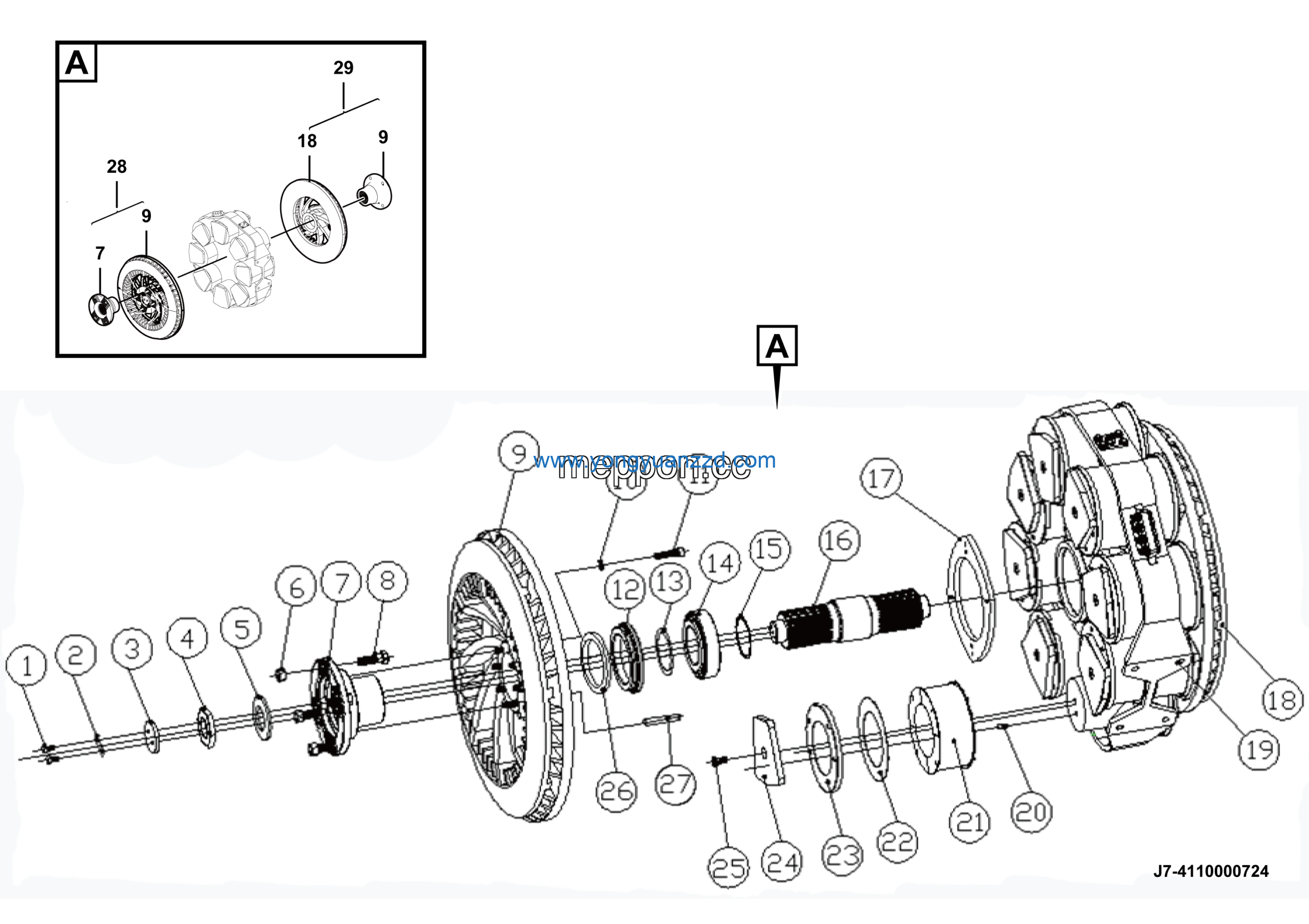

LGMG Mine Truck Mine Truck – Eddy current retarder assy – J8-4110000724
Category: Mine Truck > Mine Truck > M0850WE70
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer Q40310F9 | 4110000724009 | 16 |
| 2 | Screw Q218B1045TF2 | 4110000724010 | 16 |
| 3 | Sealing ring assy 35241282098 | 4110000724011 | 2 |
| 4 | Roter adjusting washer 35241282044 | 4110000724012 | 1 |
| 5 | Bearing NSK32214 | 4110000724013 | 2 |
| 6 | Adjusting washer 35241282034 | 4110000724014 | 1 |
| 7 | Spline shaft 35241332071 | 4110000724015 | 1 |
| 8 | Shaft guard 35241192003 | 4110000724016 | 2 |
| 9 | Rear roter 35241330721 | 4110000724017 | 1 |
| 10 | Stator core assy 35241332018 | 4110000724018 | 1 |
| 11 | Bolt Q150B0616 | 4110000724001 | 4 |
| 12 | Pin Q5220818 | 4110000724019 | 16 |
| 13 | Coil assy 35241332028 | 4110000724020 | 16 |
| 14 | Elastic washer 35241282084 | 4110000724021 | 16 |
| 15 | Coil guard 35241282024 | 4110000724022 | 16 |
| 16 | Magnetic conductive plate 35241282431 | 4110000724023 | 16 |
| 17 | Screw Q2581025 | 4110000724024 | 16 |
| 18 | Mounting sleeve 35241332101 | 4110000724025 | 2 |
| 19 | Internal thread taper pin 35241332111 | 4110000724026 | 16 |
| 20 | Front rotor belt flange assy 35241332058 | 4110000724028 | 1 |
| 21 | Rear roter（with flange）35241332068 | 4110000724029 | 1 |
| 22 | Locking plate 35241282094 | 4110000724002 | 2 |
| 23 | Hold down cap 35241282561 | 4110000724003 | 2 |
| 24 | Locking nut 35241282531 | 4110000724004 | 2 |
| 25 | Elastic washer 35241282074 | 4110000724005 | 2 |
| 26 | Nut GB6184-M14*1.5EpZn-10 | 4013010198 | 8 |
| 27 | Flange 35241332051 | 4110000724006 | 2 |
| 28 | Bolt Q151B1450TF2 | 4110000724007 | 8 |
| 29 | Front roter 35241330711 | 4110000724008 | 1 |
