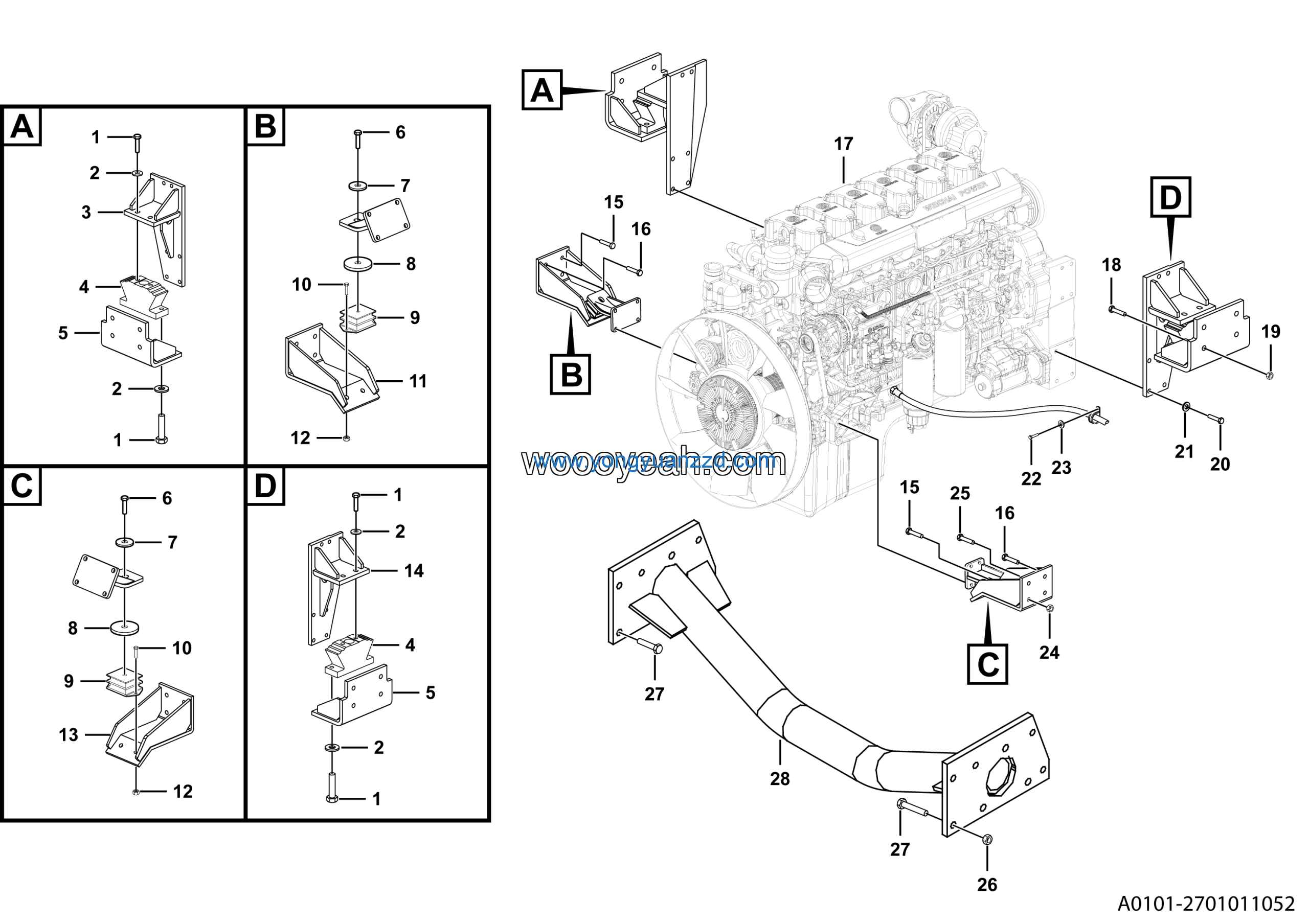

LGMG Mine Truck Mine Truck – Engine assembly – A0101-2701011052
Category: Mine Truck > Mine Truck > M0860WAQ0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 2 | Engine front left leg | 27010109592 | 1 |
| 3 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 4 | Engine front right leg | 27010109622 | 1 |
| 5 | ENGINE BACK RIGHT RAME | 27010101811 | 1 |
| 6 | Bolt GB5783-M14*65EpZn-10.9 | 4011010013 | 3 |
| 7 | Bolt GB5782-M14*50EpZn-10.9 | 4011000988 | 4 |
| 8 | Engine assembly | 4110001347 | 1 |
| 9 | Bolt GB5782-M16*70EpZn-8.8 | 4011000231 | 12 |
| 10 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 12 |
| 11 | Bolt GB5786-M16*1.5*45EpZn-10.9 | 4011000710 | 8 |
| 12 | Bolt GB5786-M14*1.5*40EpZn-10.9 | 4011000214 | 12 |
| 13 | Washer GB97.1-14EpZn-300HV | 4015000177 | 12 |
| 14 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 15 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 16 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 8 |
| 17 | Bolt GB5783-M14*55EpZn-10.9 | 4011010277 | 1 |
| 18 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 10 |
| 19 | Bolt GB5783-M16*65EpZn-10.9 | 4011000665 | 10 |
| 20 | First beam | 27010109643 | 1 |
| 21 | Washer GB1230-16-45 | 4015010101 | 8 |
| 22 | ENGINE LEFT REAR FRAME | 27010101761 | 1 |
| 23 | RR engine mount cushion | 4110000296 | 2 |
| 24 | Engine back seat | 27010101731 | 2 |
| 25 | Bolt GB5786-M12*1.5*30EpZn-10.9 | 4011010276 | 2 |
| 26 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 27 | Trimmed gasket | 27010106821 | 2 |
| 28 | FR suspension cushion | 4110000331 | 2 |
