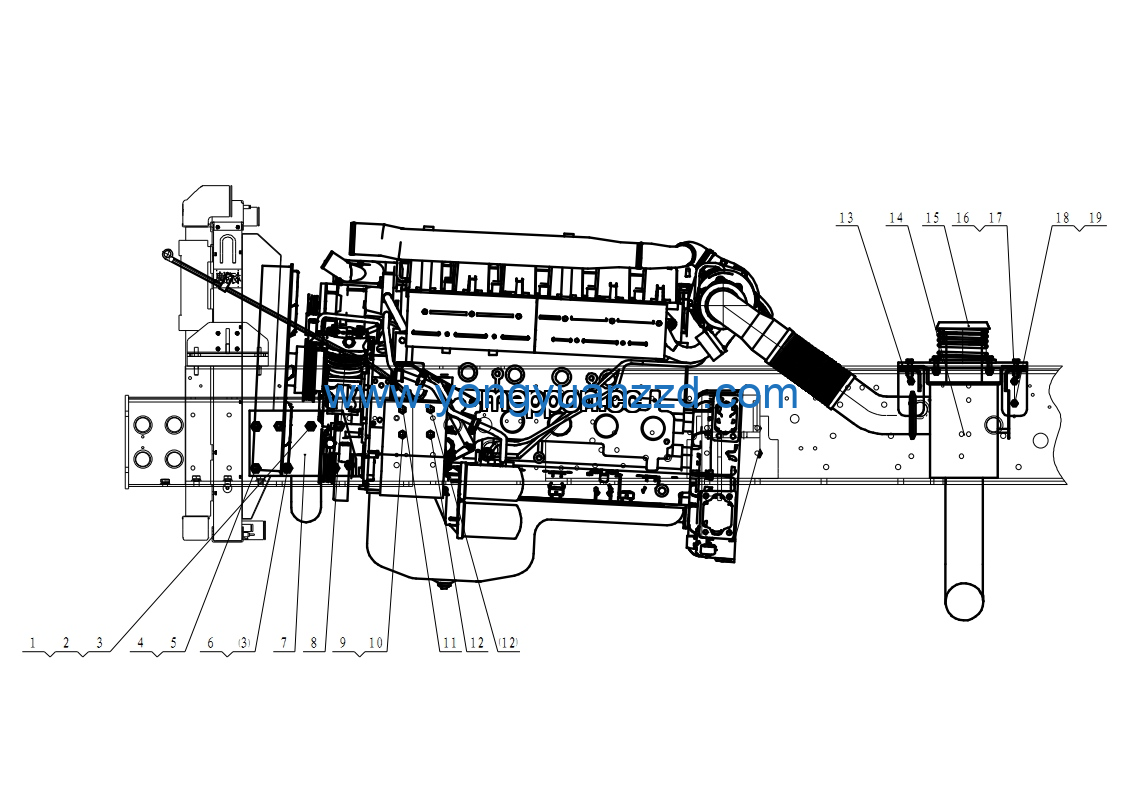

LGMG Mine Truck Mine Truck – Engine Assembly – A2-2701010761002
Category: Mine Truck > Mine Truck > MT86
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 8 |
| 2 | Bolt GB5783-M14*45EpZn-10.9 | 4011000820 | 1 |
| 3 | Bolt GB5783-M14*40EpZn-10.9 | 4011010210 | 4 |
| 4 | Support plate | 27010104931 | 2 |
| 5 | Exhaust system | 27010107631 | 1 |
| 6 | Casing pipe | 27010104721 | 1 |
| 7 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 8 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 9 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 4 |
| 10 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 12 |
| 11 | Bolt GB5785-M18*1.5*85EpZn-10.9 | 4011000850 | 2 |
| 12 | Nut GB6185.2-M18*1.5EpZn-10 | 4013010158 | 6 |
| 13 | Washer 18 | 27120105412 | 6 |
| 14 | Bolt GB5783-M16*75EpZn-10.9 | 4011010232 | 5 |
| 15 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 10 |
| 16 | BOLT GB5785-M18*1.5*75pZn-10.9 | 4011000951 | 4 |
| 17 | FIRST BEAM ASSEMBLY | 27010104821 | 1 |
| 18 | Engine assembly WD12.420 | 4110000772 | 1 |
| 19 | Bolt GB5783-M14*55EpZn-10.9 | 4011010277 | 3 |
