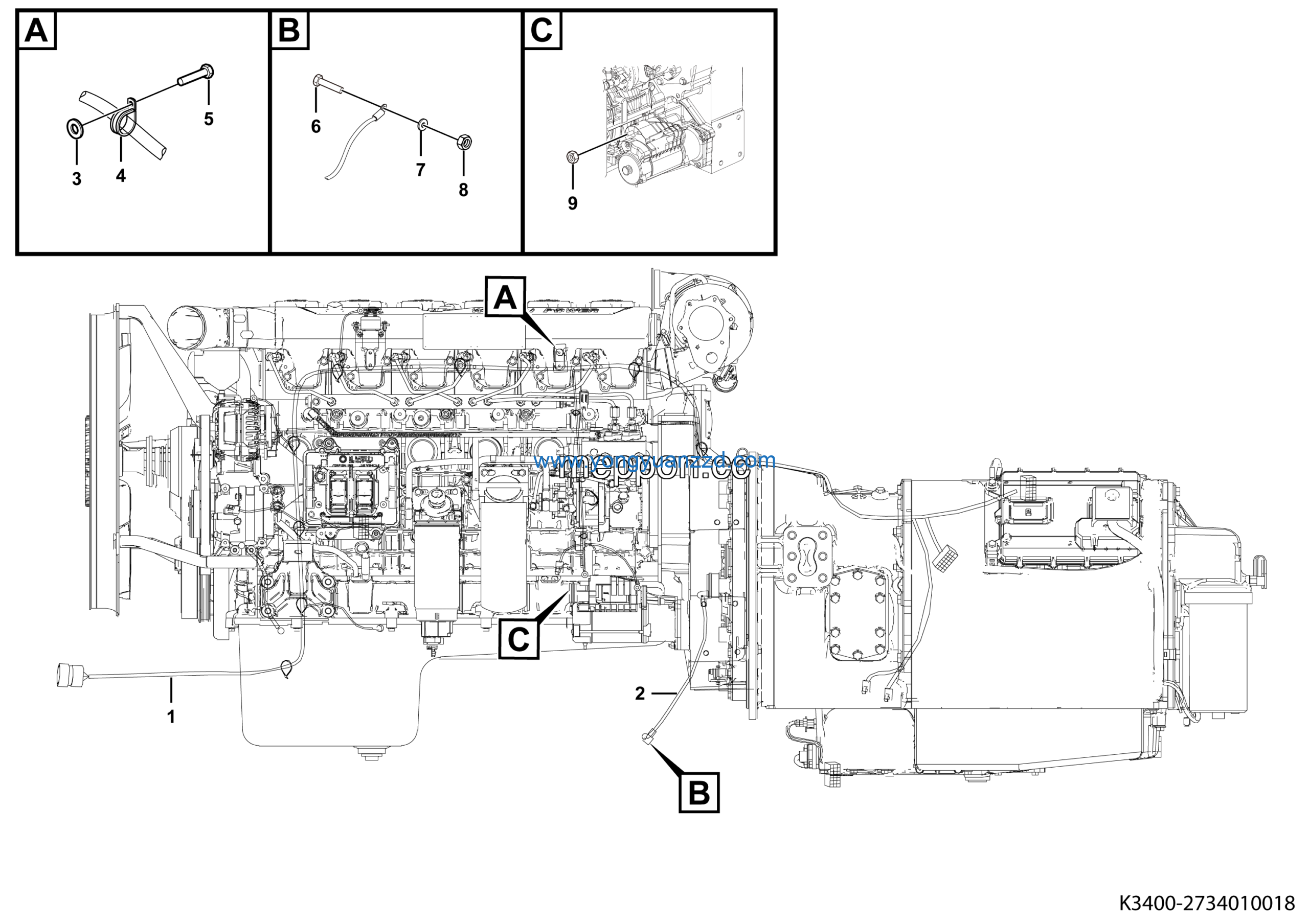

LGMG Mine Truck Mine Truck – Engine electric system assy – K3400-2734010018
Category: Mine Truck > Mine Truck > M0860WE80
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Engine wiring harness | 27340100191 | 1 |
| 2 | Wire | 27200105051 | 1 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 4 | Clamp | 26370001911 | 1 |
| 5 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 6 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 1 |
| 7 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 1 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
