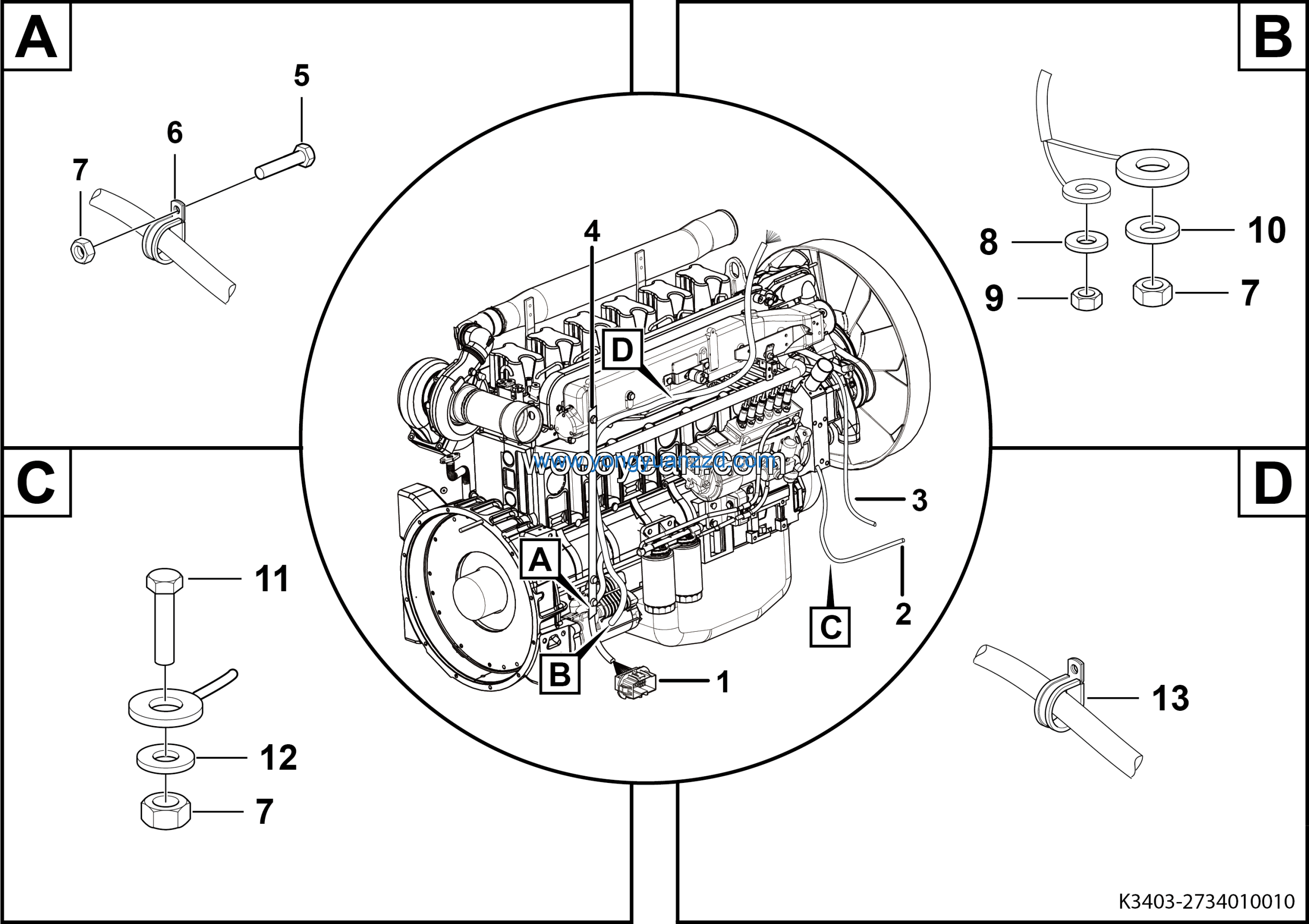

LGMG Mine Truck Mine Truck – Engine electric system assy – K3403-2734010010
Category: Mine Truck > Mine Truck > M0860WC10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 2 | Bolt GB5783-M10*35EpZn-10.9 | 4011000569 | 1 |
| 3 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 1 |
| 4 | Clamp | 26370001911 | 1 |
| 5 | Engine wiring harness | 27340100031 | 1 |
| 6 | Power cord P70*700 | 27340100221 | 1 |
| 7 | Air conditioner compressor ground wire P2.0*400 | 27340100011 | 1 |
| 8 | Plate | 27340100431 | 1 |
| 9 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 10 | Pipe clamp | 26370001951 | 1 |
| 11 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
| 12 | Washer GB97.1-6EpZn-300HV | 4015000207 | 1 |
| 13 | Nut GB6170-M6EpZn-8 | 4013000028 | 1 |
