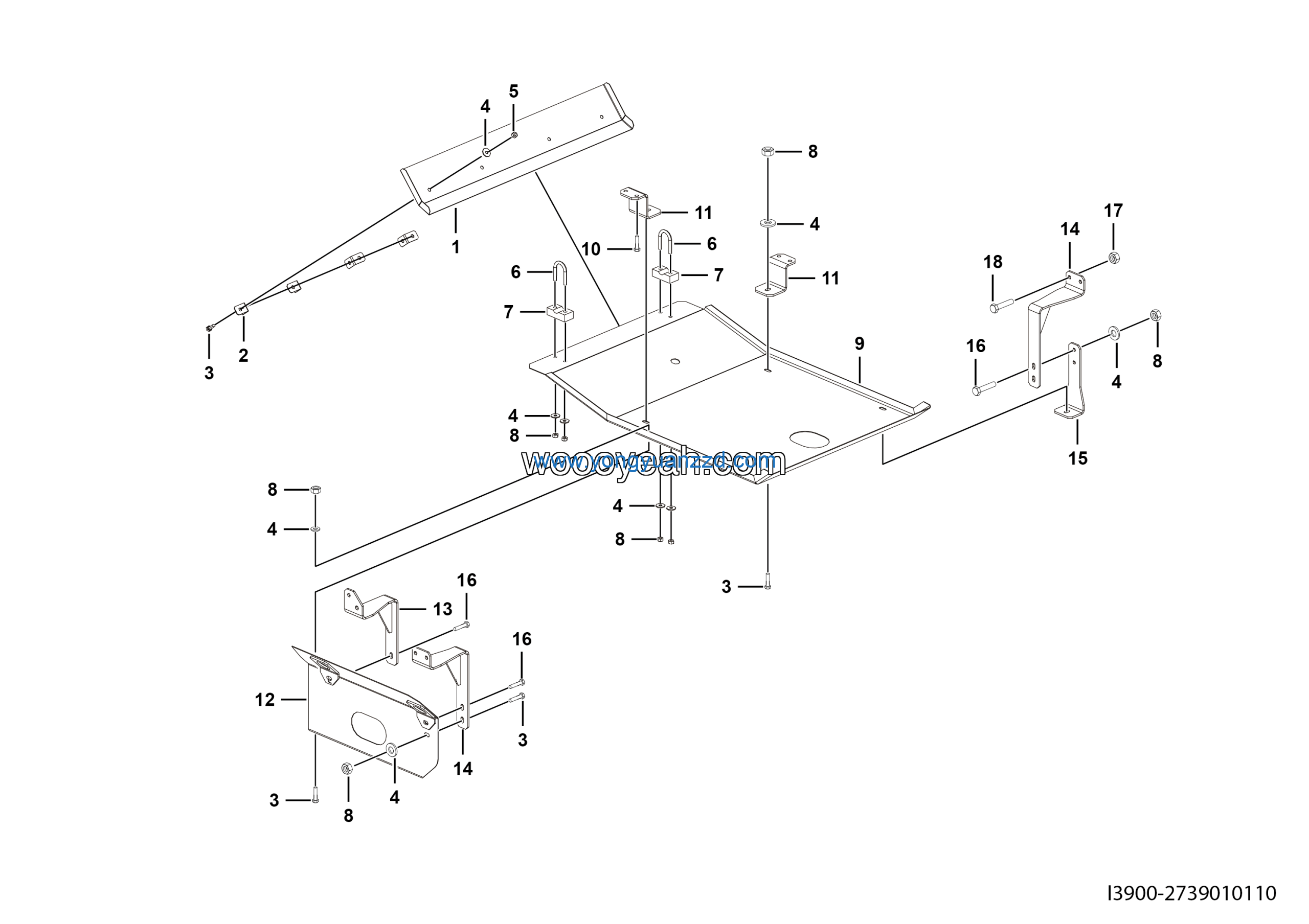

LGMG Mine Truck Mine Truck – Fan guide assy – I3900-2739010110
Category: Mine Truck > Mine Truck > M0860WBE0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*20EpZn-8.8 | 4011000087 | 4 |
| 2 | Connecting seat | 27390101141 | 2 |
| 3 | Baffle assembly | 27390101121 | 1 |
| 4 | Link span | 27390101181 | 1 |
| 5 | Link span | 27390101151 | 2 |
| 6 | Plate | 27390100941 | 1 |
| 7 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 8 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 9 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 4 |
| 10 | Front guard plate | 27390100361 | 1 |
| 11 | Connecting plate | 27390100351 | 4 |
| 12 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 16 |
| 13 | Washer GB96.1-10EpZn-300HV | 4015000197 | 34 |
| 14 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 15 | U SHAP BOLT | 27390100171 | 2 |
| 16 | Rubber mat | 27390100201 | 2 |
| 17 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 16 |
| 18 | Windshield | 27390101111 | 1 |
