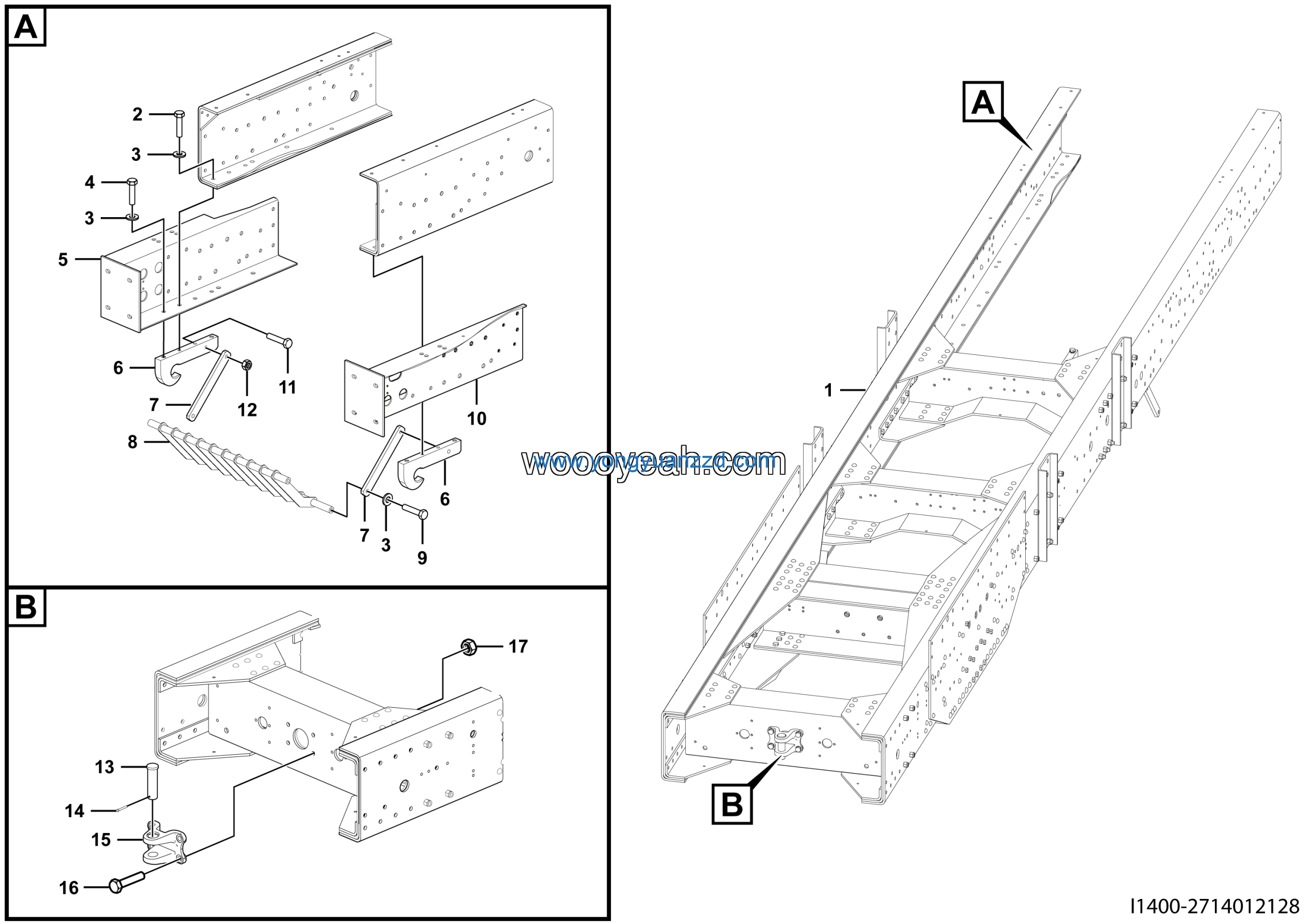

LGMG Mine Truck Mine Truck – Frame assy – I1400-2714012128
Category: Mine Truck > Mine Truck > M0860WA91
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Right plate assembly | 27140117661 | 1 |
| 2 | BOLT GB5785-M16*1.5*75EpZn-8.8 | 4011010461 | 2 |
| 3 | Nut GB6185.2-M16*1.5EpZn-8 | 4013010168 | 2 |
| 4 | Pin | 27140105842 | 1 |
| 5 | No longer used | 4016000106 | 1 |
| 6 | Rear traction seat | 27140104822 | 1 |
| 7 | Bolt GB5785-M16*1.5*60-12.9 | 4011010389 | 4 |
| 8 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 4 |
| 9 | Frame | 27140121293 | 1 |
| 10 | Bolt GB5785-M16*1.5*55-12.9 | 4011010388 | 6 |
| 11 | Washer GB97.1-16EpZn-300HV | 4015000181 | 10 |
| 12 | Bolt GB5785-M16*1.5*35-12.9 | 4011010541 | 2 |
| 13 | Right connect plate assembly | 27140115481 | 1 |
| 14 | Front pull hook | 27140108182 | 2 |
| 15 | Connecting rod | 27140119971 | 2 |
| 16 | Front guard | 27140104952 | 1 |
| 17 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 2 |
