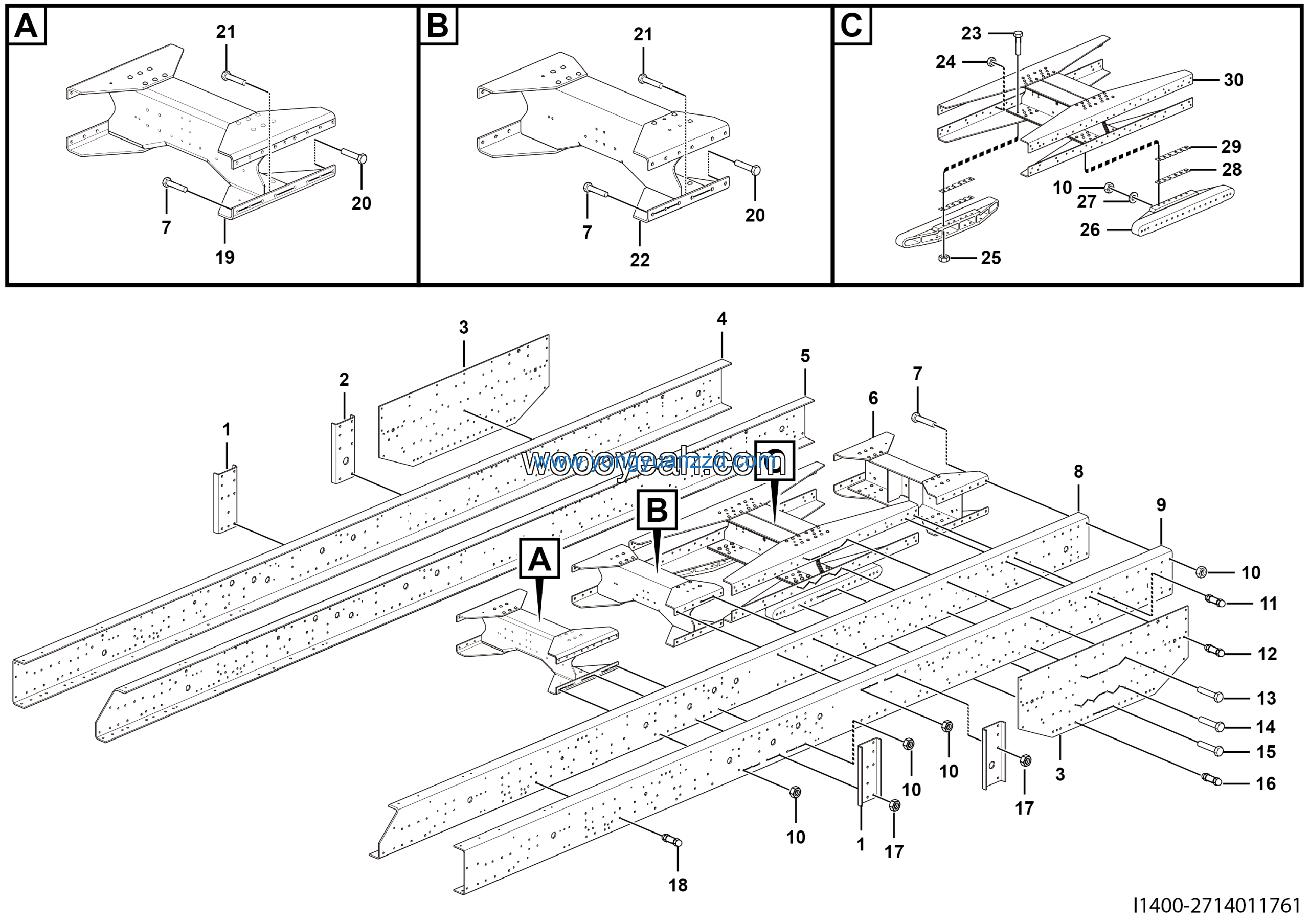

LGMG Mine Truck Mine Truck – Frame – I1400-2714011761
Category: Mine Truck > Mine Truck > M0860WAR0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 55 |
| 2 | Rivet GB867-14*52 | 4019000115 | 22 |
| 3 | Rivet GB867-14*65 | 4019000120 | 44 |
| 4 | Bolt GB5782-M14*50EpZn-10.9 | 4011000988 | 8 |
| 5 | Bolt GB5782-M14*60EpZn-10.9 | 4011000539 | 20 |
| 6 | Bolt GB5782-M16*55EpZn-10.9 | 4011010162 | 8 |
| 7 | RIVET GB867-16*55 | 4019000135 | 28 |
| 8 | Nut GB889.2-M18*1.5EpZn-10 | 4013000252 | 16 |
| 9 | RIVET GB867-14*42 | 4019000110 | 2 |
| 10 | Beam | 27140117321 | 1 |
| 11 | Superstructure connect plate | 27140112711 | 2 |
| 12 | Bolt GB5782-M16*60EpZn-10.9 | 4011000607 | 6 |
| 13 | BOLT GB5785-M18*1.5*65EpZn-10.9 | 4011010202 | 16 |
| 14 | Beam assembly | 27140113101 | 1 |
| 15 | Bolt GB5785-M16*1.5*75EpZn-10.9 | 4011010151 | 12 |
| 16 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 28 |
| 17 | Nut GB6171-M16*1.5-10 | 4013000196 | 12 |
| 18 | Middle seat | 27140104832 | 2 |
| 19 | Washer GB1230-16EpZn-45 | 4015000001 | 8 |
| 20 | Trimmed gasket | 27140115341 | 2 |
| 21 | Trimmed gasket | 27140115331 | 2 |
| 22 | Superstructure connect plate | 27140104751 | 2 |
| 23 | Balance shaft reinforce beam assembly | 27140104761 | 1 |
| 24 | Plate | 27140117092 | 2 |
| 25 | Right carling | 27140117651 | 1 |
| 26 | Right reinforce carling | 27140117641 | 1 |
| 27 | Tail carling assembly | 27140111651 | 1 |
| 28 | Bolt GB5782-M16*50EpZn-10.9 | 4011010149 | 41 |
| 29 | Left reinforce carling | 27140117631 | 1 |
| 30 | Left carling | 27140117621 | 1 |
