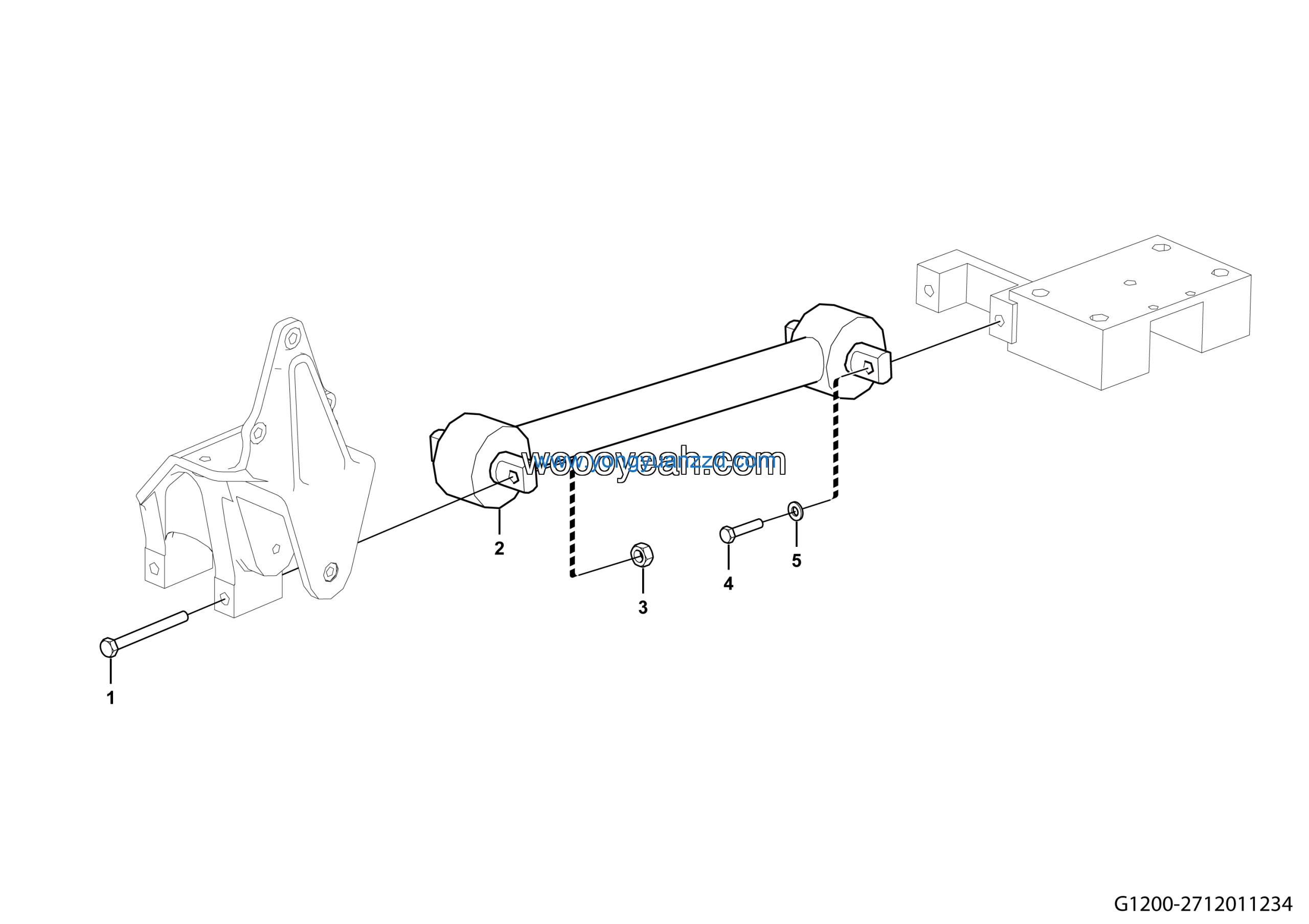

LGMG Mine Truck Mine Truck – Front thrust rod installation assy – G1200-2712011234
Category: Mine Truck > Mine Truck > M0860WEK0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | BOLT GB5782-M20*170-12.9 | 4011010399 | 4 |
| 2 | FR thrust rod assy | 4110000290 | 2 |
| 3 | Nut GB6185.1-M20EpZn-12 | 4013010226 | 4 |
| 4 | Bolt GB5783-M20*85-12.9 | 4011010403 | 4 |
| 5 | washer | 27120104441 | 4 |
