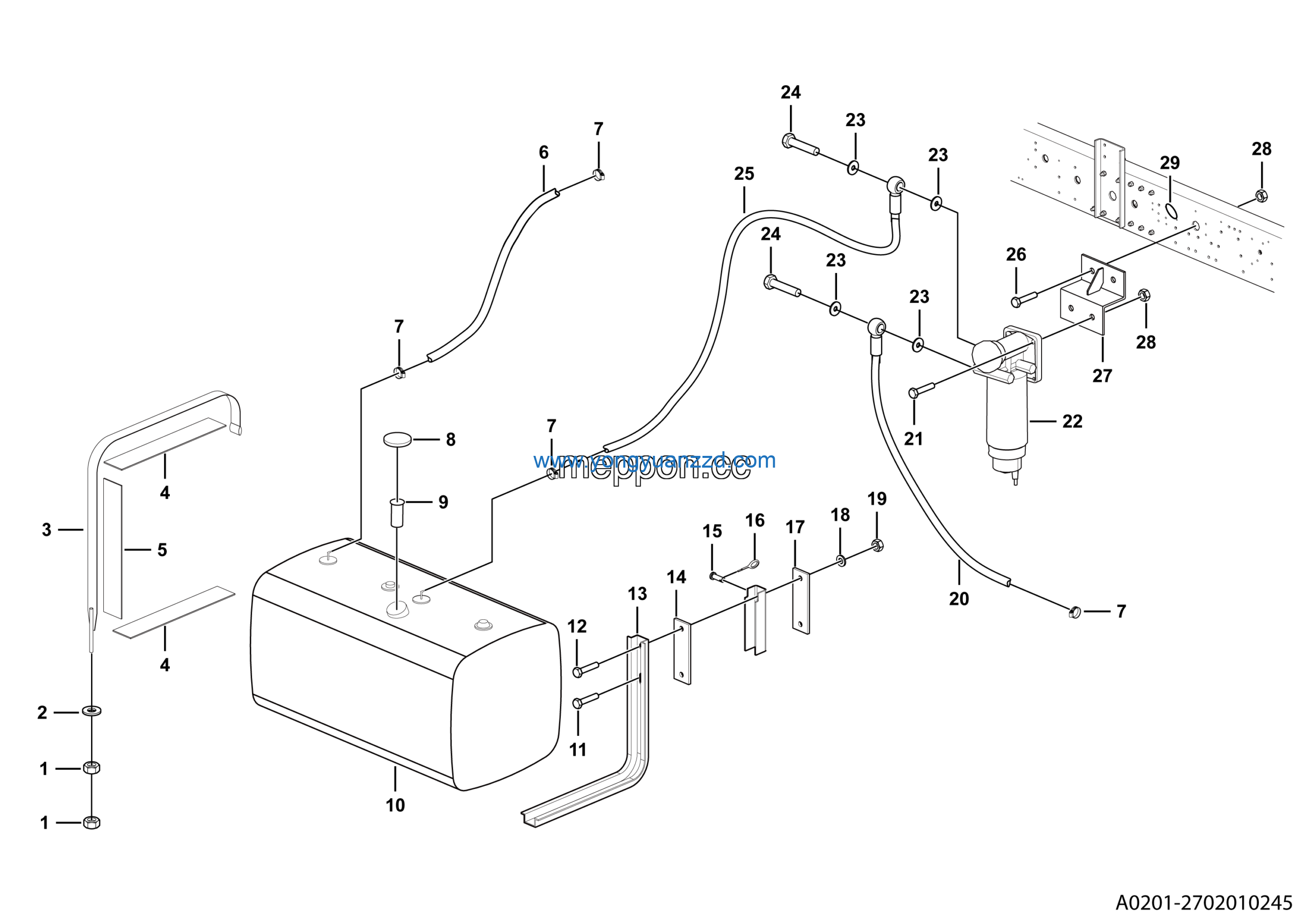

LGMG Mine Truck Mine Truck – Fuel – A0201-2702010245
Category: Mine Truck > Mine Truck > M0860WAN0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fuel tank body 530L | 4110000796 | 1 |
| 2 | Bolt GB5782-M16*70EpZn-10.9 | 4011000824 | 4 |
| 3 | Bolt GB5782-M16*80EpZn-10.9 | 4011000438 | 2 |
| 4 | Fuel tank bracket assy | 4110000118 | 1 |
| 5 | Backing plate | 27020101971 | 2 |
| 6 | Pin | 4110000120 | 3 |
| 7 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 3 |
| 8 | Fixed plate | 27020101021 | 3 |
| 9 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 10 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 11 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 12 | Pipe | 27020102471 | 1 |
| 13 | Bolt GB16674.1-M12*45EpZn-8.8 | 4011000467 | 2 |
| 14 | Fuel filter 1000444742 | 4110001100 | 1 |
| 15 | Washer JB1002-16-T2 | 4015000120 | 5 |
| 16 | Bolt JB999-M16*1.5*35EpZn-35 | 4011000318 | 2 |
| 17 | Pipe | 27020102461 | 1 |
| 18 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 2 |
| 19 | Coarse strainer support | 27020102241 | 1 |
| 20 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 21 | Cable protector | 27140108701 | 2 |
| 22 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 23 | Cable tie assy | 4110000119 | 3 |
| 24 | Flap | 4110000122 | 6 |
| 25 | Flap | 4110000121 | 3 |
| 26 | Pipe | 27020102483 | 1 |
| 27 | Hose clamp JB8870-D20 | 4017000010 | 4 |
| 28 | Aluminium oil box cover | 4049010004 | 1 |
| 29 | Fuel sieve | 4110000046 | 1 |
