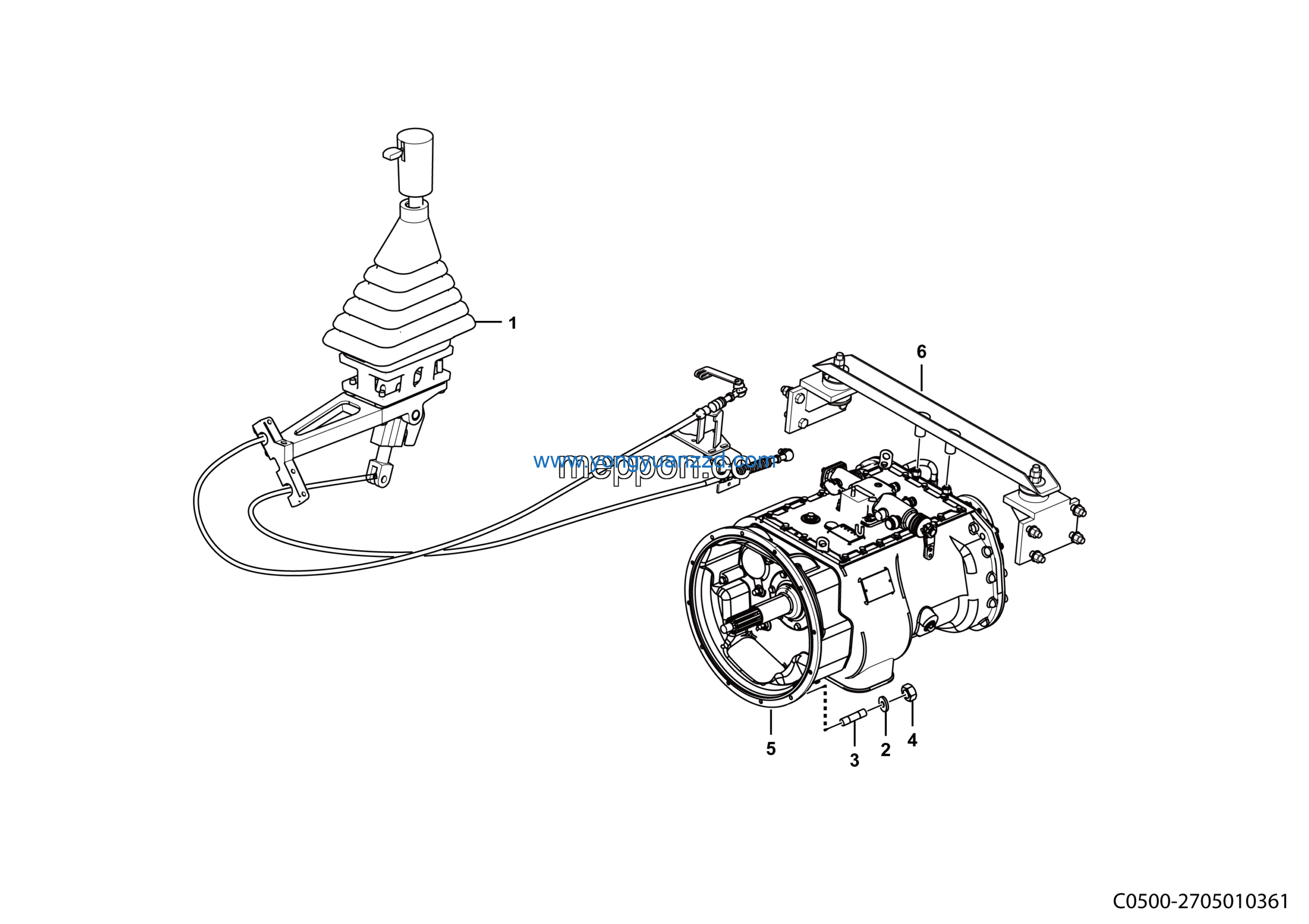

LGMG Mine Truck Mine Truck – Gearbox assembly – C0500-2705010361
Category: Mine Truck > Mine Truck > M0860WAQ0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | VARIABLE SPEED CONTROL ASSEMBLY | 27050103521 | 1 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 3 | Stud GB899-A M10*30EpZn-8.8 | 4012010108 | 12 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
| 5 | 7DS200K Gearbox assembly | 4110001002 | 1 |
| 6 | Transmission anchorage assembly | 27050104101 | 1 |
