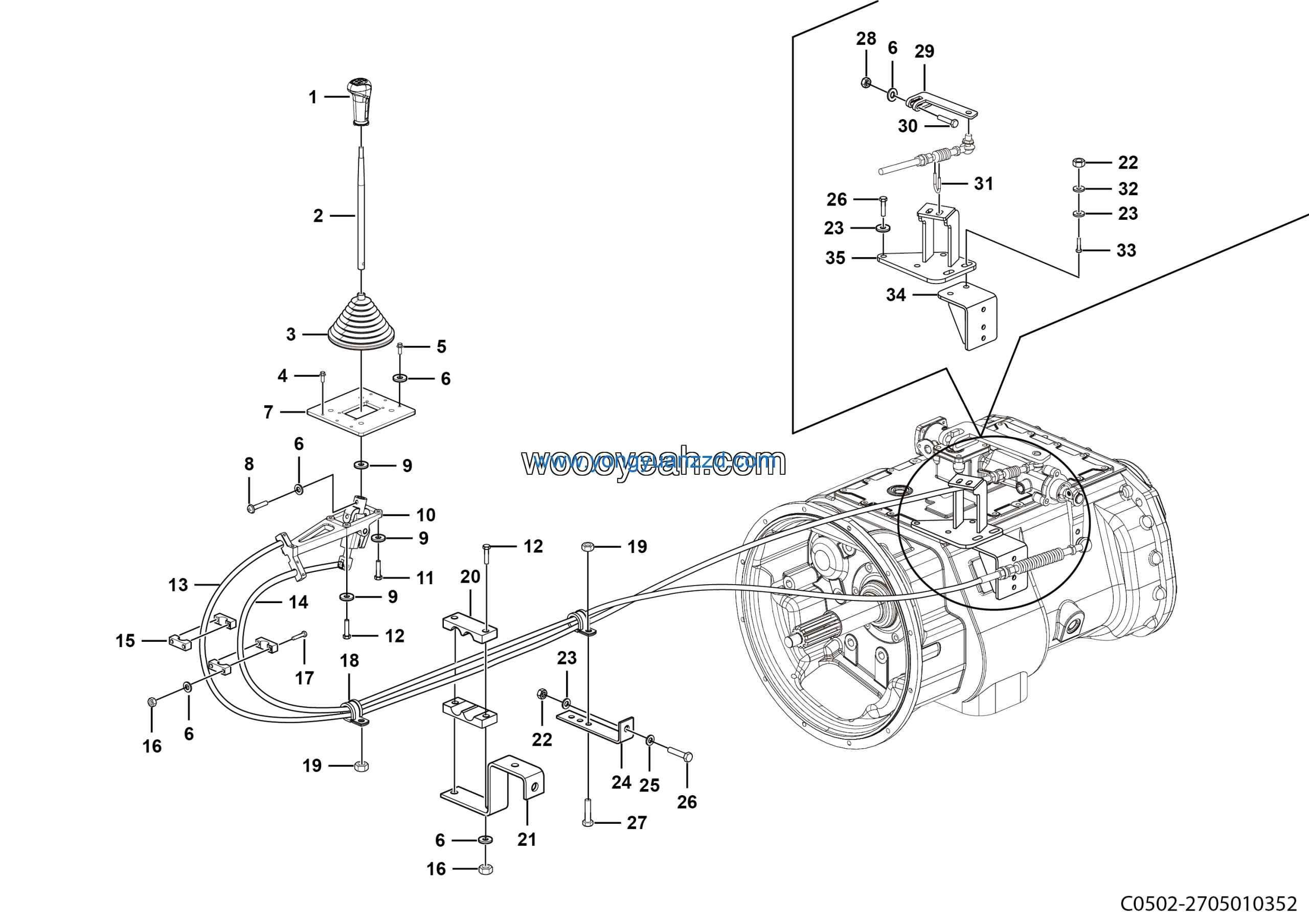

LGMG Mine Truck Mine Truck – Gearbox control assembly – C0502-2705010352
Category: Mine Truck > Mine Truck > M0860WB00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Controller | 27050101531 | 1 |
| 2 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 3 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 4 |
| 4 | The selector flexible shaft assembly | 27050101551 | 1 |
| 5 | The shift flexible shaft assembly | 27050101562 | 1 |
| 6 | IRONⅡ | 27050104672 | 4 |
| 7 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 6 |
| 8 | Bolt GB5782-M8*50EpZn-8.8 | 4011000223 | 4 |
| 9 | Flexshaft clamp | 27050101691 | 2 |
| 10 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 11 | Shift handle crank assembly | 27050105331 | 1 |
| 12 | IRONⅠ | 27050104661 | 2 |
| 13 | Bracket | 27050104682 | 1 |
| 14 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
| 15 | Washer GB93-10-65Mn | 4015000025 | 6 |
| 16 | Bracket | 27050101701 | 1 |
| 17 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 18 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 19 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 1 |
| 20 | Nut GB889.1-M8EpZn-8 | 4013000210 | 1 |
| 21 | Selecting rocker arm | 4110000545 | 1 |
| 22 | 7 speed gearbox handle-control assembly | 4110001395 | 1 |
| 23 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 24 | U-Clamp assy | 4190000302 | 2 |
| 25 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 26 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 1 |
| 27 | Shifting flexible shaft bracket | 4110000546 | 1 |
| 28 | Selecting flexible shaft bracket | 4110000515 | 1 |
| 29 | Dust cover assembly | 27050101191 | 1 |
| 30 | Screw GB818-M5*25EpZn-4.8 | 4014010009 | 4 |
| 31 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 32 | Washer GB848-8EpZn-300HV | 4015010215 | 14 |
| 33 | Block | 27050105101 | 1 |
| 34 | Screw GB70.1-M8*25-8.8 | 4014000171 | 6 |
| 35 | Washer GB93-8-65Mn | 4015000036 | 5 |
