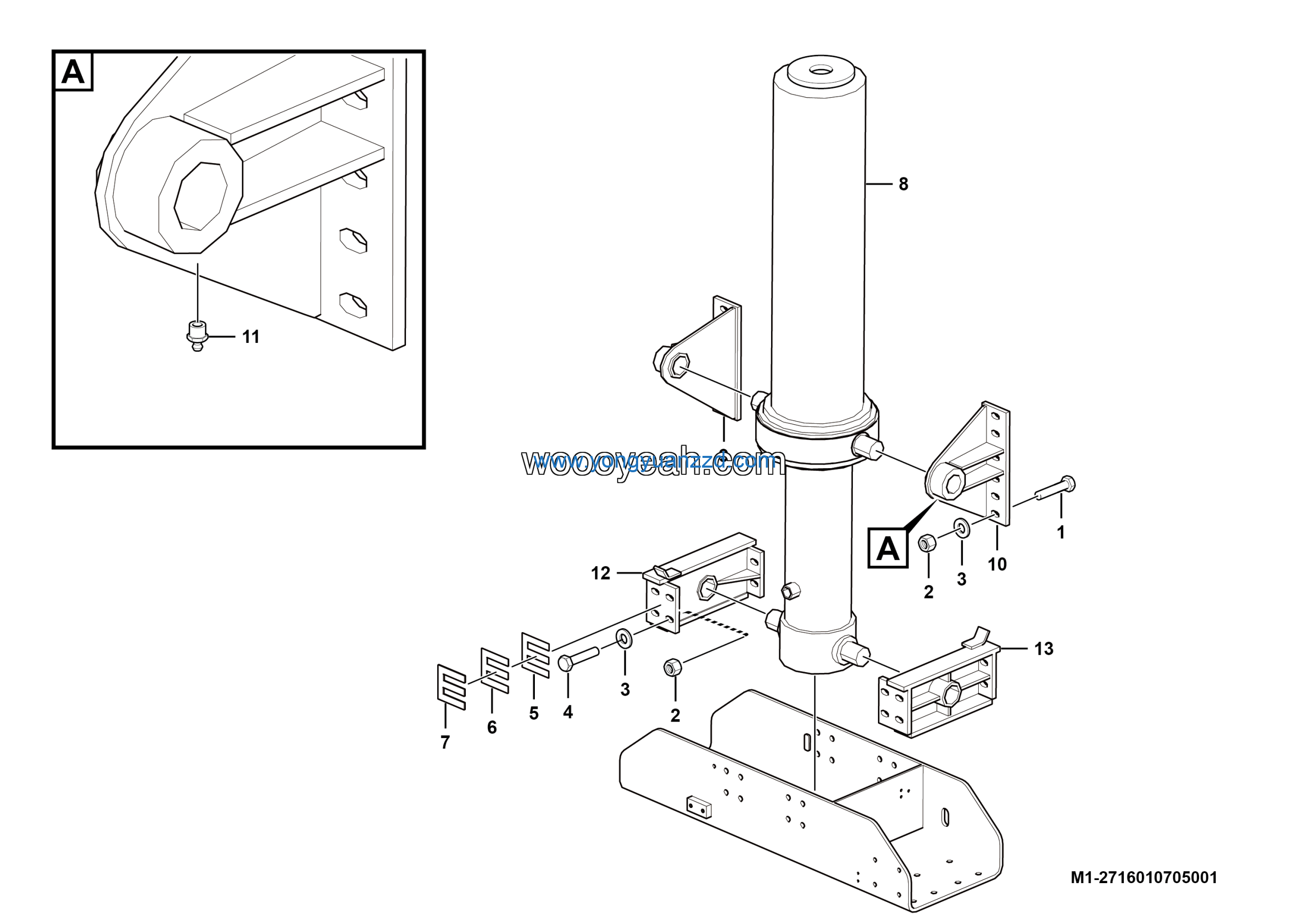

LGMG Mine Truck Mine Truck – Hydraulic lifting assembly-DP – M1-2716010705001
Category: Mine Truck > Mine Truck > MT86
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hydro-cylinder bracket（RH） | 4120001007 | 1 |
| 2 | Butter nozzle | 4120001010 | 4 |
| 3 | Frame bracket | 4120001008 | 1 |
| 4 | Frame bracket | 27160106881 | 1 |
| 5 | Bolt GB5782-M16*70EpZn-10.9 | 4011000824 | 12 |
| 6 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 28 |
| 7 | Washer GB1230-16EpZn-45 | 4015000001 | 44 |
| 8 | Bolt GB5782-M16*60EpZn-10.9 | 4011000607 | 16 |
| 9 | Trimmed gasket | 27160106411 | 1 |
| 10 | Trimmed gasket | 27160106421 | 1 |
| 11 | Trimmed gasket | 27160106431 | 1 |
| 12 | Hyd cylinder 4TG-F196-4700ZZ | 4120001054 | 1 |
| 13 | Hydro-cylinder bracket（LH） | 4120001006 | 1 |
