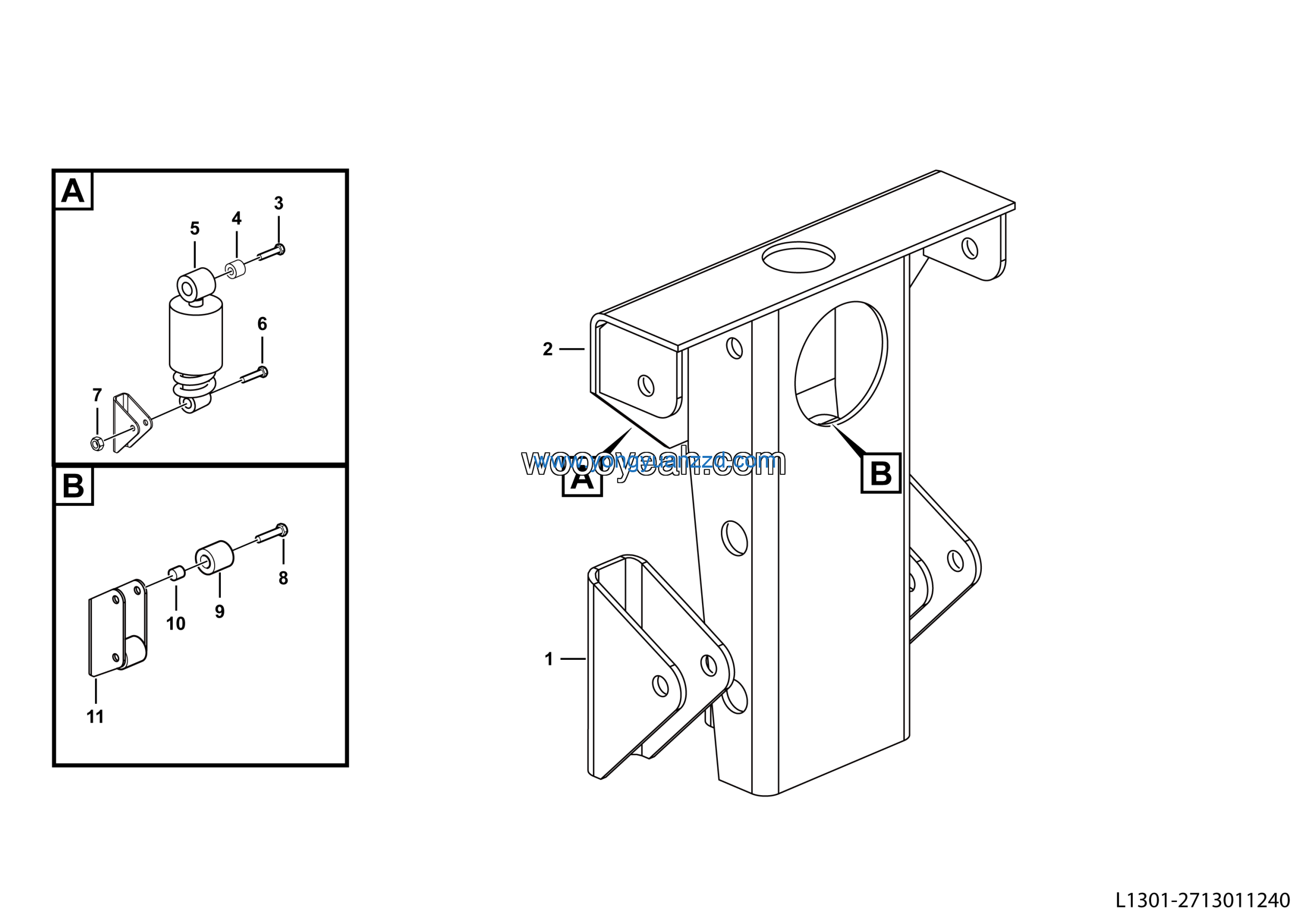

LGMG Mine Truck Mine Truck – Left rear susoension assy – L1301-2713011240
Category: Mine Truck > Mine Truck > M0860WEQ0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Sleeve | 27130102331 | 2 |
| 2 | Guid roller bracket | 27130102481 | 1 |
| 3 | Damper subframe | 27130102471 | 2 |
| 4 | Gp-cab back suspension | 27130115121 | 1 |
| 5 | Bolt GB5782-M14*100EpZn-8.8 | 4011010155 | 2 |
| 6 | Damper spacer sleeve | 27130102241 | 2 |
| 7 | Coarse spring shock absorber | 4110001055 | 2 |
| 8 | Bolt GB5782-M14*75EpZn-8.8 | 4011010190 | 2 |
| 9 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 6 |
| 10 | Bolt GB5782-M14*80EpZn-8.8 | 4011000832 | 2 |
| 11 | Sleeve | 27130102321 | 2 |
