LGMG Mine Truck Mine Truck – Middle drive shaft – F3-4110000740
Category: Mine Truck > Mine Truck > MT86

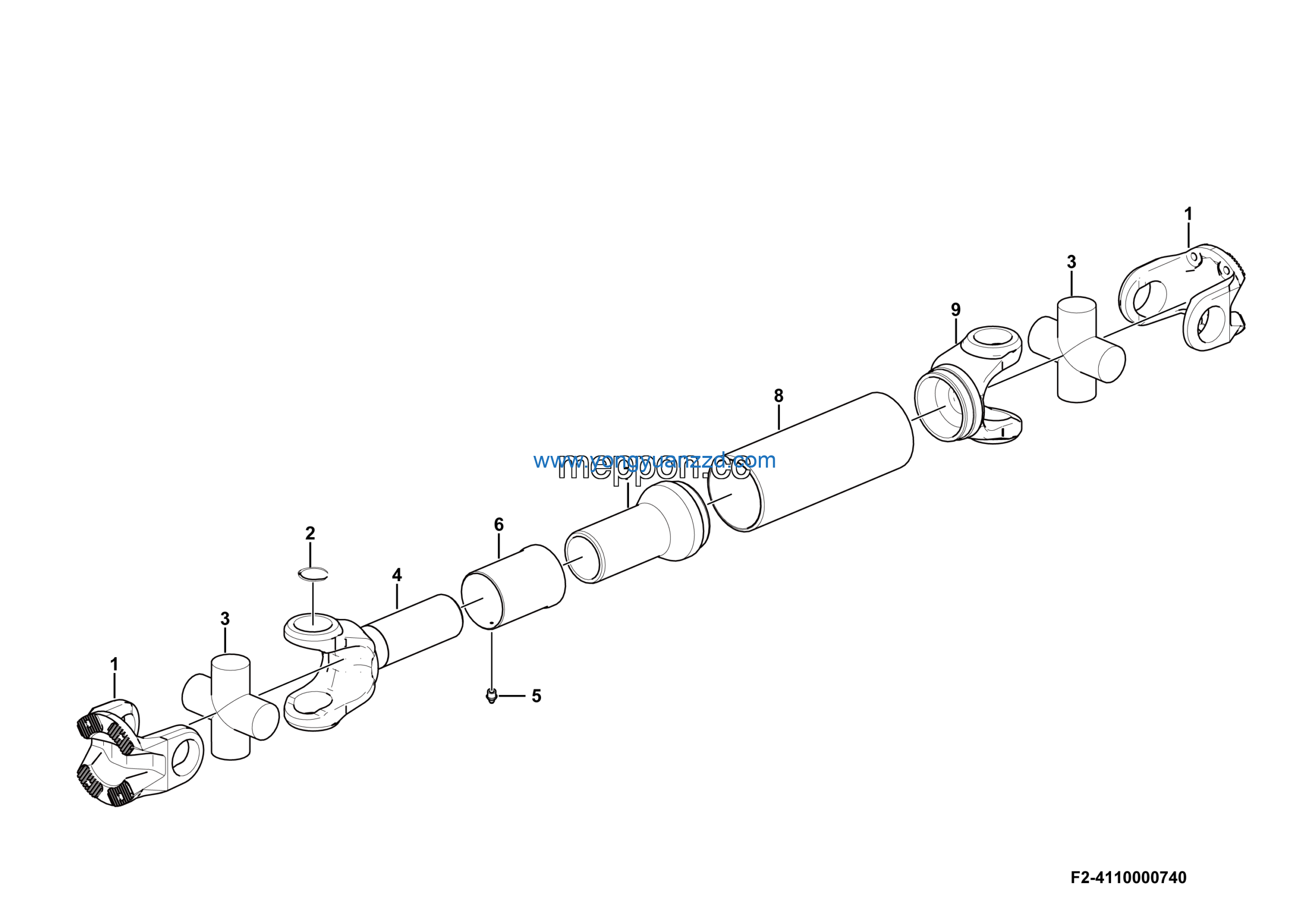

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Flange fork 6564110011 | 4110000402001 | 1 |
| 2 | Clip spring 6564110073 | 4110000402002 | 1 |
| 3 | Cross shaft assy 65668165B | 4110000402003 | 1 |
| 4 | Shaft fork 6564110105L | 4110000402004 | 1 |
| 5 | Grease nipple M6 | 4030000535 | 1 |
| 6 | Dust cover assy | 4110000402006 | 1 |
| 7 | Spline hub 6564110008A | 4110000402007 | 1 |
| 8 | Axle tube 140×5 Axle tube | 4110000740001 | 1 |
| 9 | Cardan fork 6564112505L | 4110000402009 | 1 |
