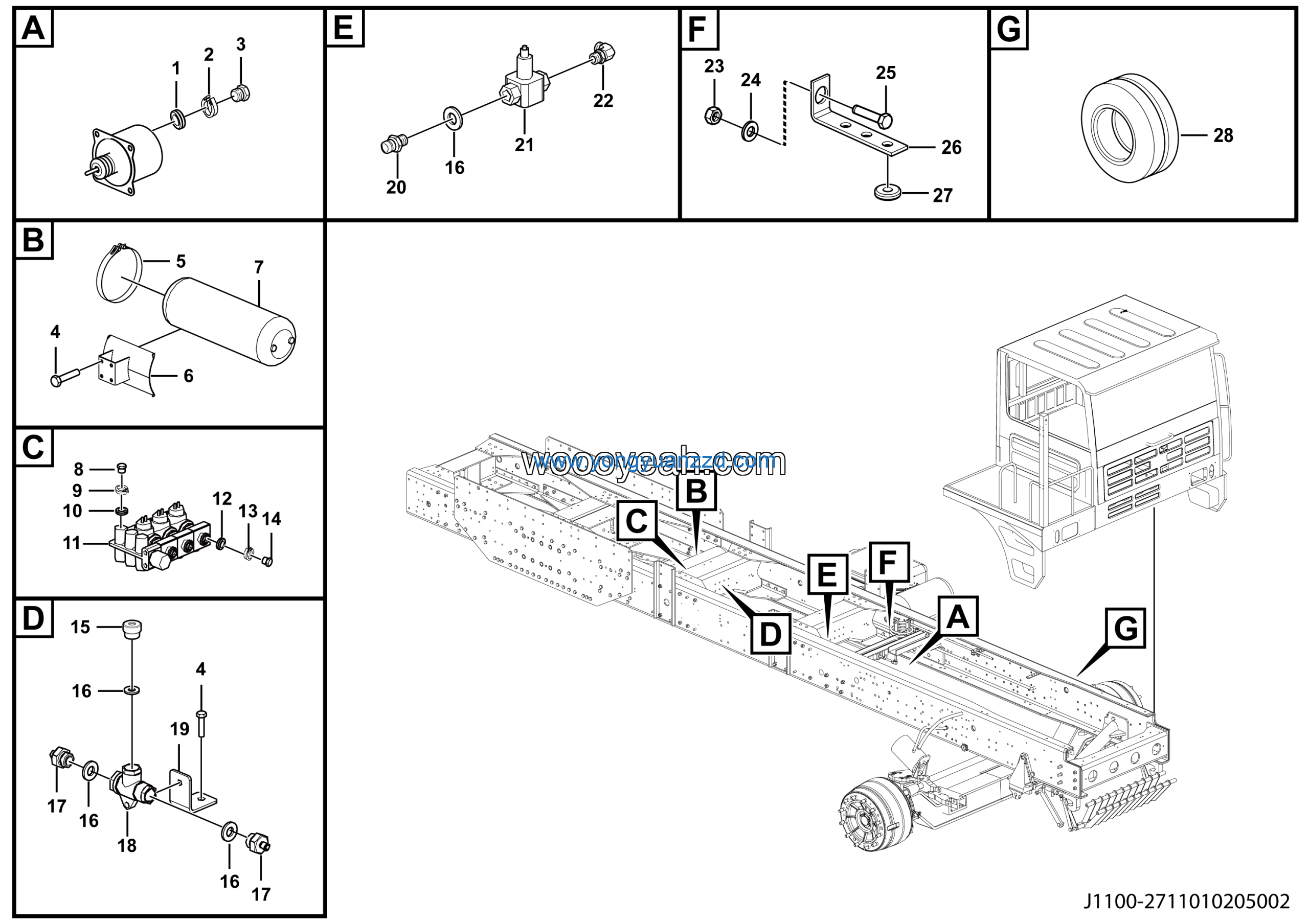

LGMG Mine Truck Mine Truck – Parking brake assembly – J1100-2711010205002
Category: Mine Truck > Mine Truck > M0860WAA0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clip spring NG6 | 4120000212 | 5 |
| 2 | Triple solenoid valve | 4120000500 | 1 |
| 3 | Clip spring NG12 | 4120000192 | 8 |
| 4 | Elastic element NG12 | 4120000193 | 8 |
| 5 | Nut seat NG12 | 4120000190 | 8 |
| 6 | Adapter M22-NG6 | 27110101971 | 1 |
| 7 | Washer JB982-22 | 4015000092 | 6 |
| 8 | Joint M22-M12 | 27100104611 | 2 |
| 9 | Dual way check valve | 4120000361 | 1 |
| 10 | Two-way check valve bracket | 27110101981 | 1 |
| 11 | Clip spring NG8 | 4120000196 | 4 |
| 12 | M22-M22 Joint | 27110101181 | 1 |
| 13 | Relief valve | 4120000138 | 1 |
| 14 | M22-M18 Rectangular joint | 27100100681 | 1 |
| 15 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 16 | Washer GB97.1-10EpZn-300HV | 4015000162 | 7 |
| 17 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 18 | Bracket 1 | 27100103561 | 4 |
| 19 | Spacer ring | 4120000226 | 20 |
| 20 | Fagging | 27100107131 | 1 |
| 21 | Elastic element NG8 | 4120000197 | 4 |
| 22 | Nut seat NG8 | 4120000194 | 4 |
| 23 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 5 |
| 24 | Hose clamp φ246-φ250 | 4120000177 | 2 |
| 25 | Bracket of 30L reservior(246) | 27100106321 | 1 |
| 26 | Air reservoir 30L（246） | 4120000143 | 1 |
| 27 | Nut seat NG6 | 4120000213 | 5 |
| 28 | Elastic element NG6 | 4120000211 | 5 |
