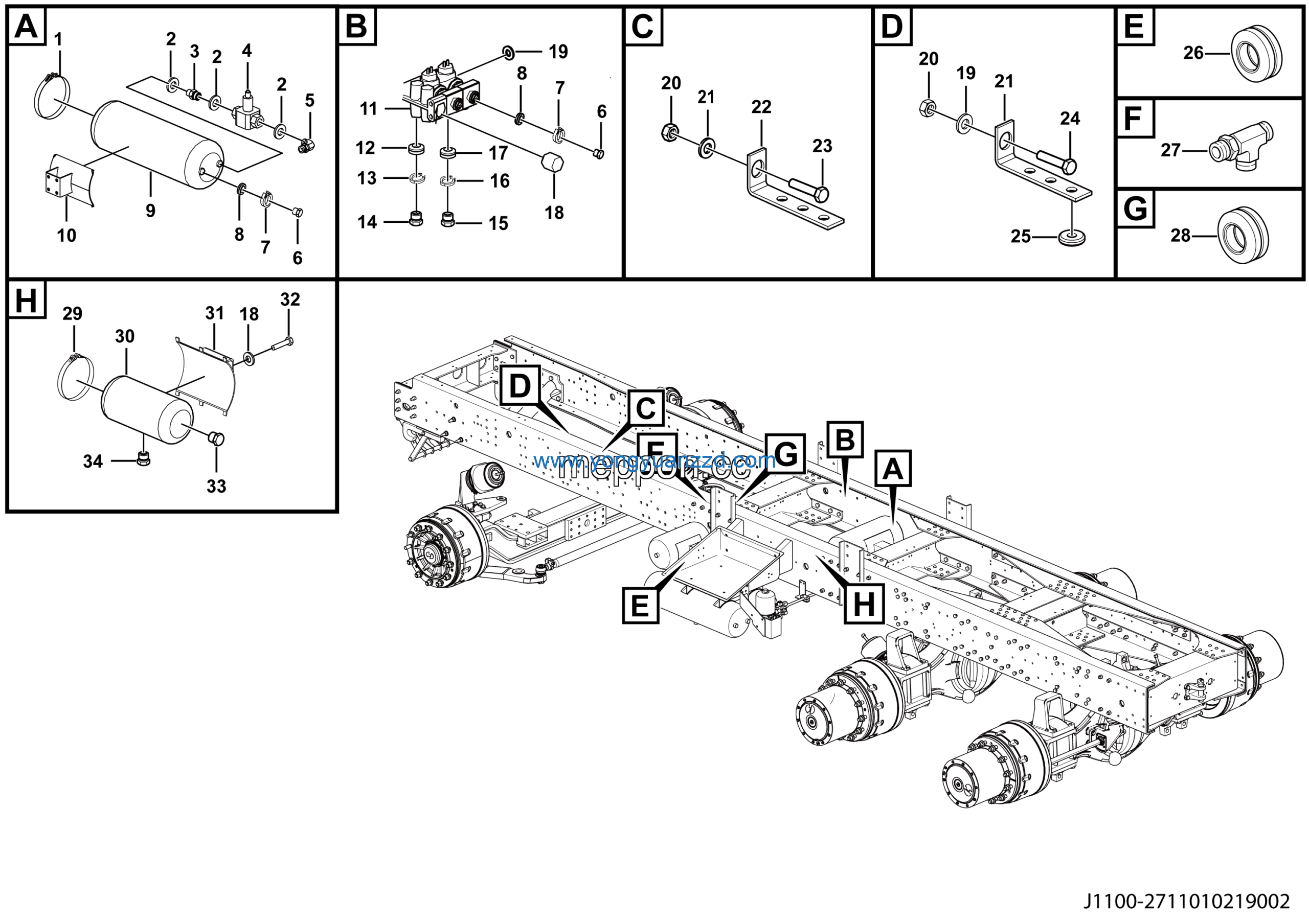

LGMG Mine Truck Mine Truck – Parking brake assembly – J1100-2711010219002
Category: Mine Truck > Mine Truck > M0860WAU0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 30l reservoir bracket | 27110102131 | 1 |
| 2 | Two solenoid valve assy | 4120001139 | 1 |
| 3 | Elastic element NG8 | 4120000197 | 3 |
| 4 | Clip spring NG8 | 4120000196 | 3 |
| 5 | Nut seat NG8 | 4120000194 | 3 |
| 6 | Nut seat NG6 | 4120000213 | 3 |
| 7 | Clip spring NG6 | 4120000212 | 3 |
| 8 | Elastic element NG6 | 4120000211 | 3 |
| 9 | Plug NG8-M16*1.5 | 4120000214 | 1 |
| 10 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 11 | Hose clamp φ246-φ250 | 4120000177 | 2 |
| 12 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 13 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 14 | Bracket 1 | 27100103561 | 3 |
| 15 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 16 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 17 | Spacer ring | 4120000226 | 20 |
| 18 | Fagging | 27100107131 | 1 |
| 19 | T-connector M14-M12-M14 | 27110101341 | 1 |
| 20 | String casing | 27140105021 | 2 |
| 21 | Hose clamp φ275-φ280 | 4120000178 | 2 |
| 22 | Washer JB982-22 | 4015000092 | 3 |
| 23 | Air reservoir 30L（275） | 4120000142 | 1 |
| 24 | Air reservoir bracket | 27110101221 | 1 |
| 25 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 26 | Plug NG12-M22*1.5 | 4120000201 | 1 |
| 27 | Drain valve | 4120000200 | 2 |
| 28 | M22-M22 Joint | 27110101181 | 1 |
| 29 | Relief valve | 4120000138 | 1 |
| 30 | M22-M18 Rectangular joint | 27100100681 | 1 |
| 31 | Nut seat NG12 | 4120000190 | 7 |
| 32 | Clip spring NG12 | 4120000192 | 7 |
| 33 | Elastic element NG12 | 4120000193 | 7 |
| 34 | Air reservoir 30L（246） | 4120000143 | 1 |
