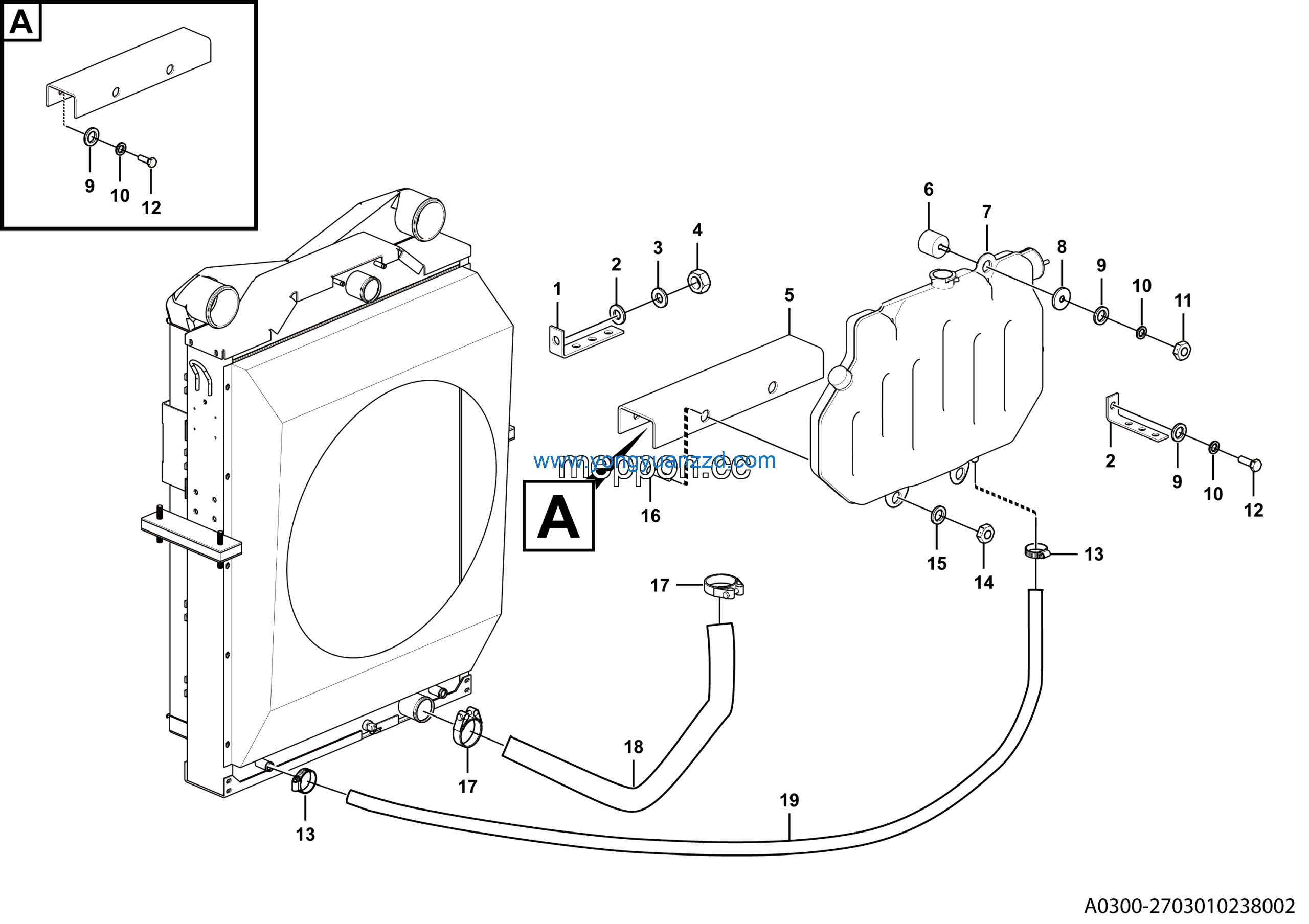

LGMG Mine Truck Mine Truck – Raditor – A0300-2703010238002
Category: Mine Truck > Mine Truck > M0860WEN0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-8EpZn-300HV | 4015000072 | 5 |
| 2 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 3 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 4 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 5 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 10 |
| 6 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 7 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 8 | No longer used | 4019010101 | 4 |
| 9 | Engine intake water pipe | 27030102361 | 1 |
| 10 | Water supply tube of water tank | 27030102031 | 1 |
| 11 | Bracket 1 | 27100103561 | 4 |
| 12 | Washer GB93-6-65Mn | 4015000035 | 3 |
| 13 | Washer GB97.1-6EpZn-300HV | 4015000207 | 3 |
| 14 | Nut GB6170-M6EpZn-8 | 4013000028 | 3 |
| 15 | E*PANSION TANK BRACKET | 27030102221 | 1 |
| 16 | Rubber shock block | 4110000211 | 1 |
| 17 | Expansion water tank | 4190000607 | 1 |
| 18 | washer | 27030102011 | 1 |
| 19 | Washer GB93-8-65Mn | 4015000036 | 5 |
