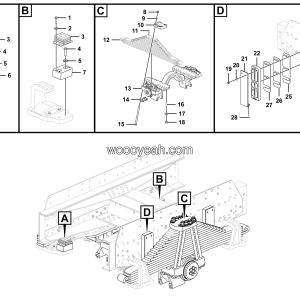

LGMG Mine Truck Mine Truck – Rear leaf spring installation assy – G1204-2712011415
Category: Mine Truck > Mine Truck > M0860WBE0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 2 | BOLT GB5785-M16*1.5*75EpZn-8.8 | 4011010461 | 8 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 4 | Bearer of middle axle spacing block | 27120117551 | 2 |
| 5 | Bearer of rear axle spacing block | 27120117601 | 2 |
| 6 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 8 |
| 7 | Bolt GB5782-M14*120EpZn-8.8 | 4011000348 | 8 |
| 8 | Washer GB97.1-14EpZn-300HV | 4015000177 | 8 |
| 9 | Oriented plate | 27120109521 | 4 |
| 10 | Side limiting cushion block | 27120117571 | 4 |
| 11 | RR leaf spring assy | 4110001981 | 2 |
| 12 | Bolt GB5785-M14*1.5*80EpZn-8.8 | 4011000112 | 8 |
| 13 | Adjust spacer | 27120104011 | 4 |
| 14 | Adjust spacer | 27120103991 | 4 |
| 15 | Adjust spacer | 27120105011 | 4 |
| 16 | Bolt GB5786-M14*1.5*30-8.8 | 4011000903 | 8 |
| 17 | STUD GB899-A-M18*1.5*50flZny-12.9-480 | 4012010119 | 36 |
| 18 | Nut GB6171-M18*1.5flZnyc-12-480 | 4013010257 | 36 |
| 19 | Washer 18 | 27120105412 | 36 |
| 20 | Pin GB91-5*63EpZn-Q235A | 4016010134 | 4 |
| 21 | Retaining ring | 27120115131 | 4 |
| 22 | Guide pin | 27120103821 | 4 |
| 23 | Pin | 27120115122 | 4 |
| 24 | Spring pressing block | 27120103851 | 2 |
| 25 | Bolt | 27120116771 | 16 |
| 26 | Six angle with the shoulder self-locking nut | 27120103841 | 16 |
| 27 | NORD-LOCK WASHER NL30SP | 4015010248 | 16 |
| 28 | Balance shaft assembly | 27120114301 | 1 |
| 29 | Leaf spring limit block | 4110000355 | 4 |
| 30 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 16 |
