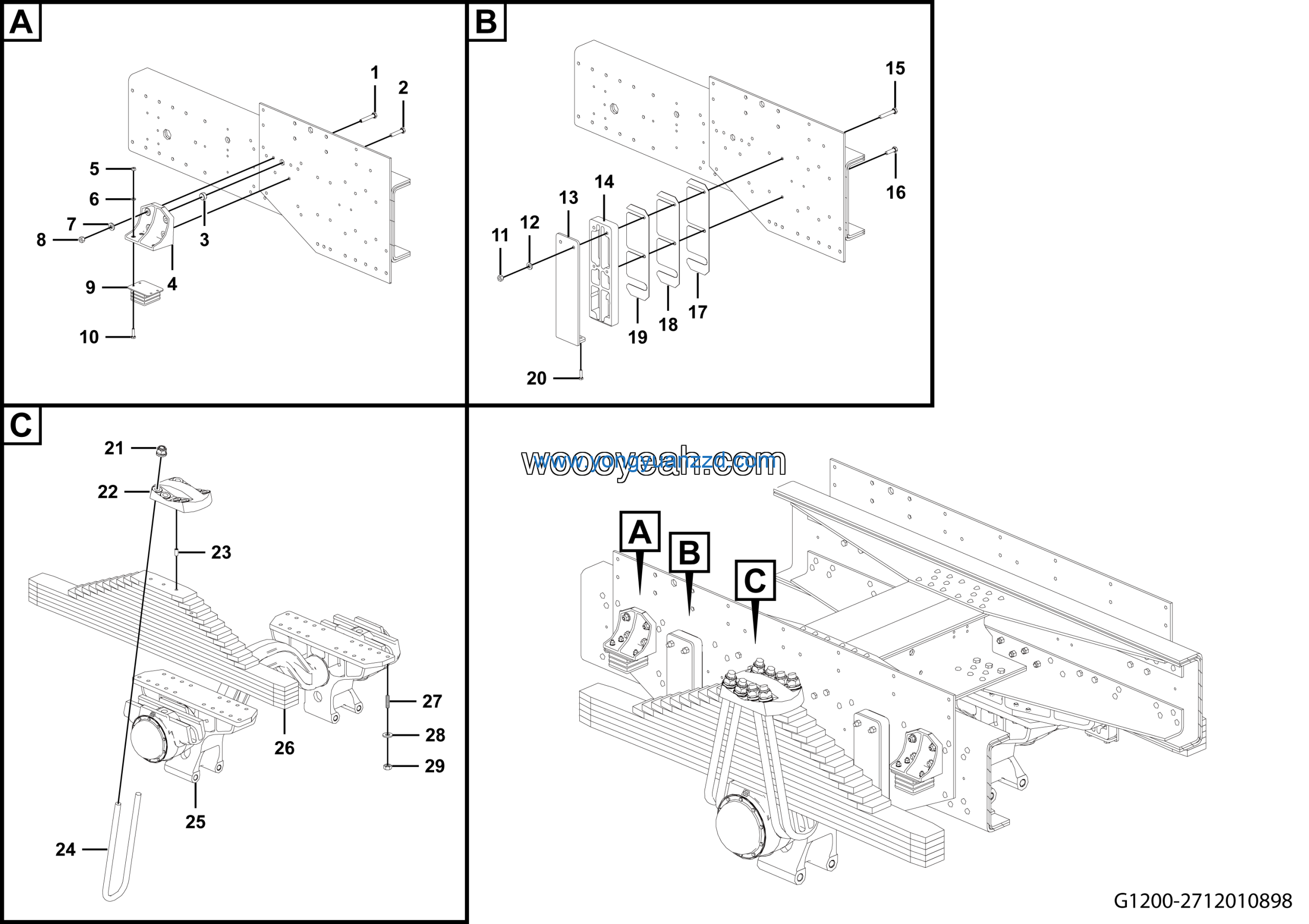

LGMG Mine Truck Mine Truck – Rear suspension assembly – G1200-2712010898
Category: Mine Truck > Mine Truck > M0860WE40
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 16 |
| 2 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 8 |
| 3 | Washer GB97.1-14EpZn-300HV | 4015000177 | 8 |
| 4 | Oriented plate | 27120109521 | 4 |
| 5 | Side limiting cushion block | 27120109491 | 4 |
| 6 | Bolt GB5782-M14*120EpZn-8.8 | 4011000348 | 8 |
| 7 | Bolt GB5785-M14*1.5*80EpZn-8.8 | 4011000112 | 8 |
| 8 | Adjust spacer | 27120104011 | 4 |
| 9 | Adjust spacer | 27120103991 | 4 |
| 10 | Adjust spacer | 27120105011 | 4 |
| 11 | Bolt GB5782-M14*80EpZn-10.9 | 4011010433 | 8 |
| 12 | Bolt GB5786-M14*1.5*30-8.8 | 4011000903 | 8 |
| 13 | Six angle with the shoulder self-locking nut | 27120103841 | 16 |
| 14 | Spring pressing block | 27120103851 | 2 |
| 15 | Guide pin | 27120103821 | 4 |
| 16 | Rear spring U-bolt | 27120103831 | 8 |
| 17 | Balance shaft axle housing assembly | 27120103781 | 1 |
| 18 | Rear the spring assembly | 4110001338 | 2 |
| 19 | STUD GB899-A-M18*50-12.9 | 4012010105 | 36 |
| 20 | Washer 18 | 27120105412 | 36 |
| 21 | No longer used | 4011010141 | 36 |
| 22 | Bolt GB5782-M14*70EpZn-10.9 | 4011010211 | 8 |
| 23 | Cushion block | 27120113681 | 4 |
| 24 | The limiting block supporting frame | 27120103961 | 4 |
| 25 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 16 |
| 26 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 27 | Washer GB1230-14EpZn-45 | 4015000358 | 16 |
| 28 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 16 |
| 29 | Leaf spring limit block | 4110000355 | 4 |
