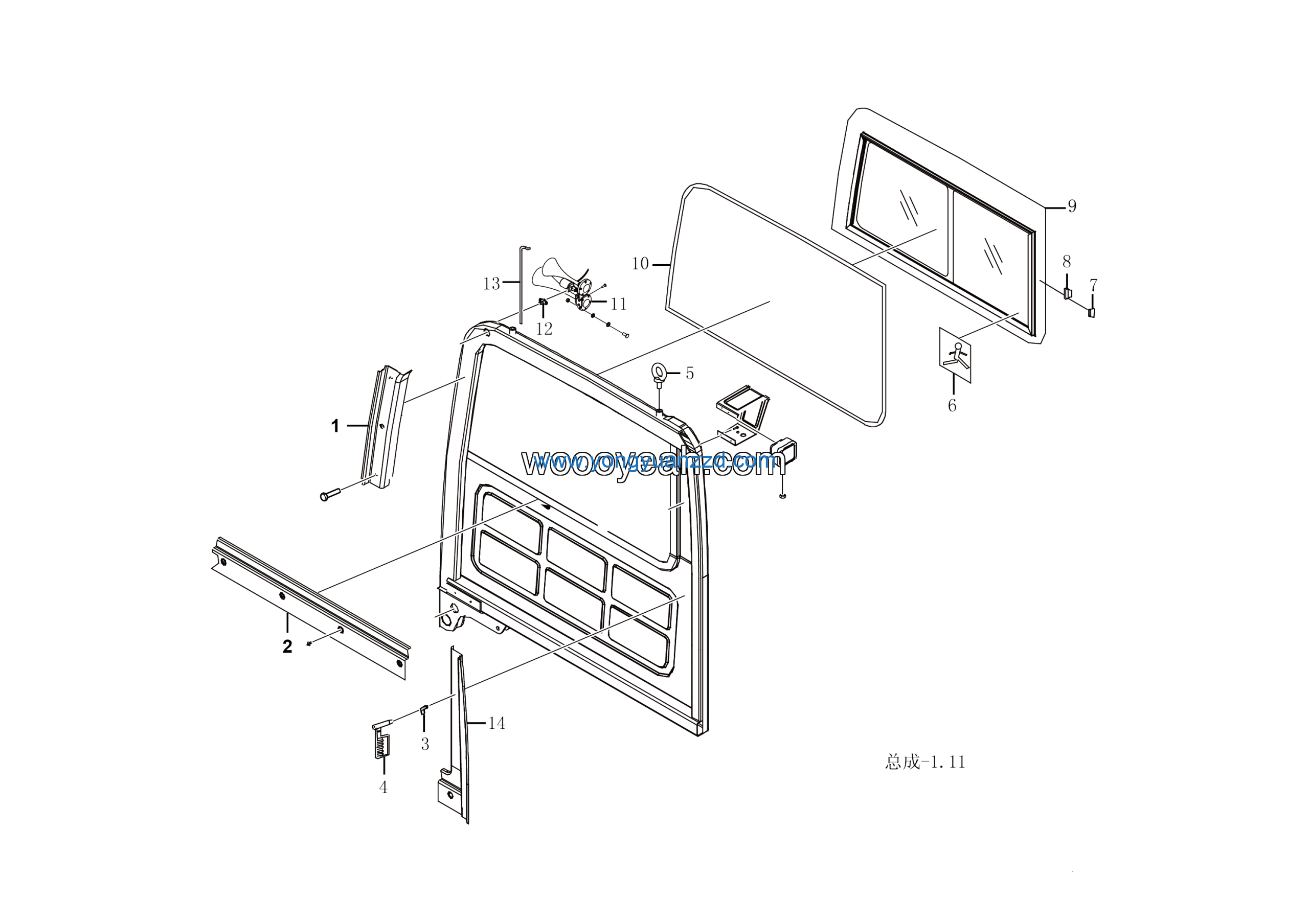

LGMG Mine Truck Mine Truck – Right cover assembly ws33002550238 – L1300-4190001098643
Category: Mine Truck > Mine Truck > M0860WAA0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Right side glass WS3300255092 | 4190001098656 | 1 |
| 2 | Interior U-shaped strip WS33002550215 | 4190001098657 | 1 |
| 3 | Air horn assy WS33002550076 | 4190001098658 | 1 |
| 4 | Joint assy WS33002550216 | 4190001098659 | 1 |
| 5 | Air horn pipe assy WS33002550217 | 4190001098660 | 1 |
| 6 | RH front column trim assy WS33002550134 | 4190001098644 | 1 |
| 7 | RH side enclosure trim WS33002550021 | 4190001098645 | 1 |
| 8 | Safety hammer support assy WS33002550052 | 4190001098647 | 1 |
| 9 | Safety hammer assy WS33002550053 | 4190001098648 | 1 |
| 10 | RH rear enclosure trim assy WS33002550006 | 4190001098649 | 1 |
| 11 | Lifting ring WS33002550213 | 4190001098652 | 2 |
| 12 | Escape sign | 4190001098653 | 1 |
| 13 | Sliding window lock assy WS33002550184 | 4190001098554 | 1 |
| 14 | Window Lock | 4190000180003 | 1 |
