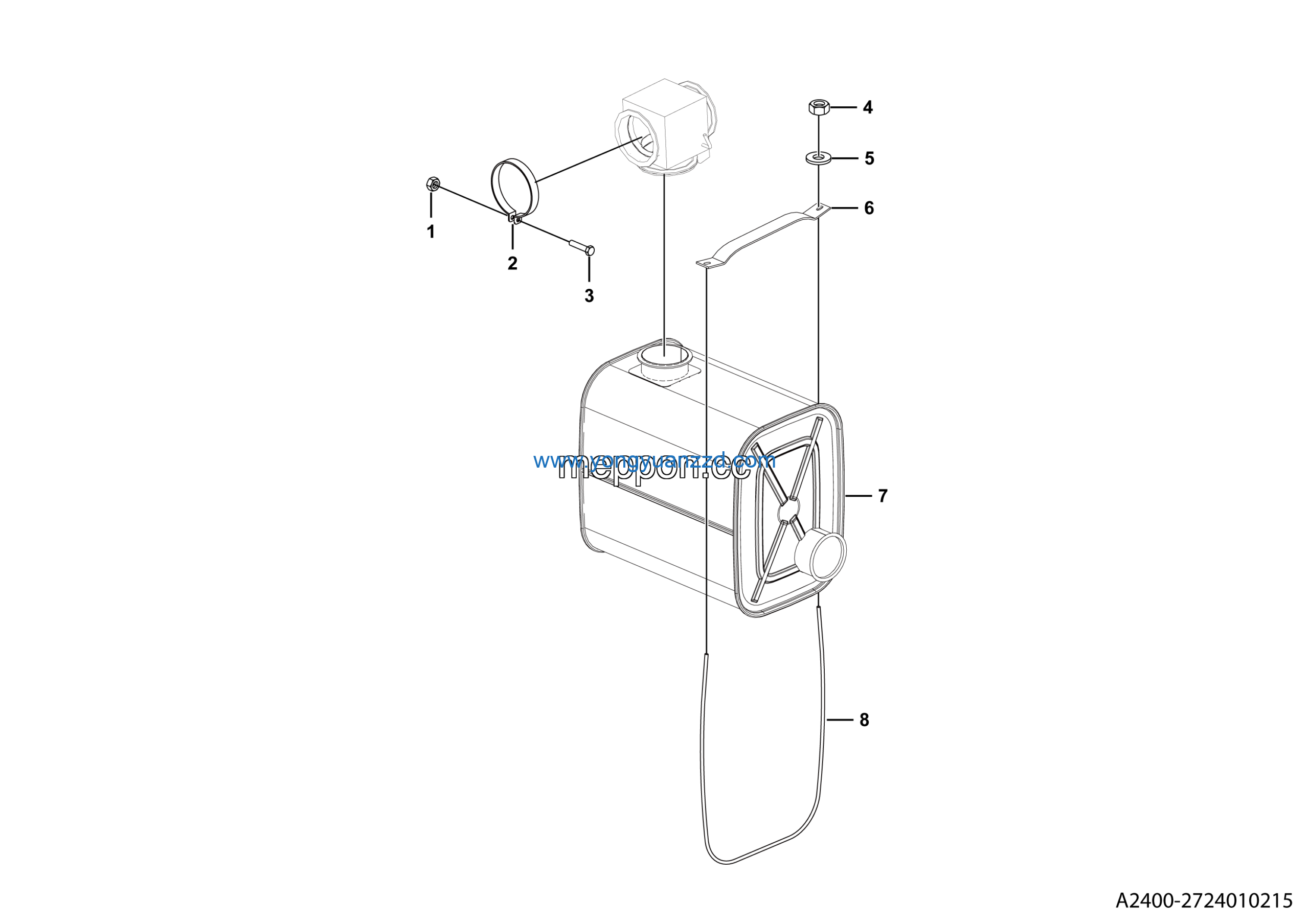

LGMG MT86H Mine Truck – Silencer assembly – A2400-2724010215
Category: Mine Truck > MT86H > M086HWA30
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 2 | Clamp | 4110000768 | 1 |
| 3 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 1 |
| 4 | Nut GB6170-M8EpZn-8 | 4013000033 | 12 |
| 5 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 6 | Plate | 27010110711 | 3 |
| 7 | Muffler assy | 4110001284 | 1 |
| 8 | TENSIONING LEVER | 27010101611 | 3 |
