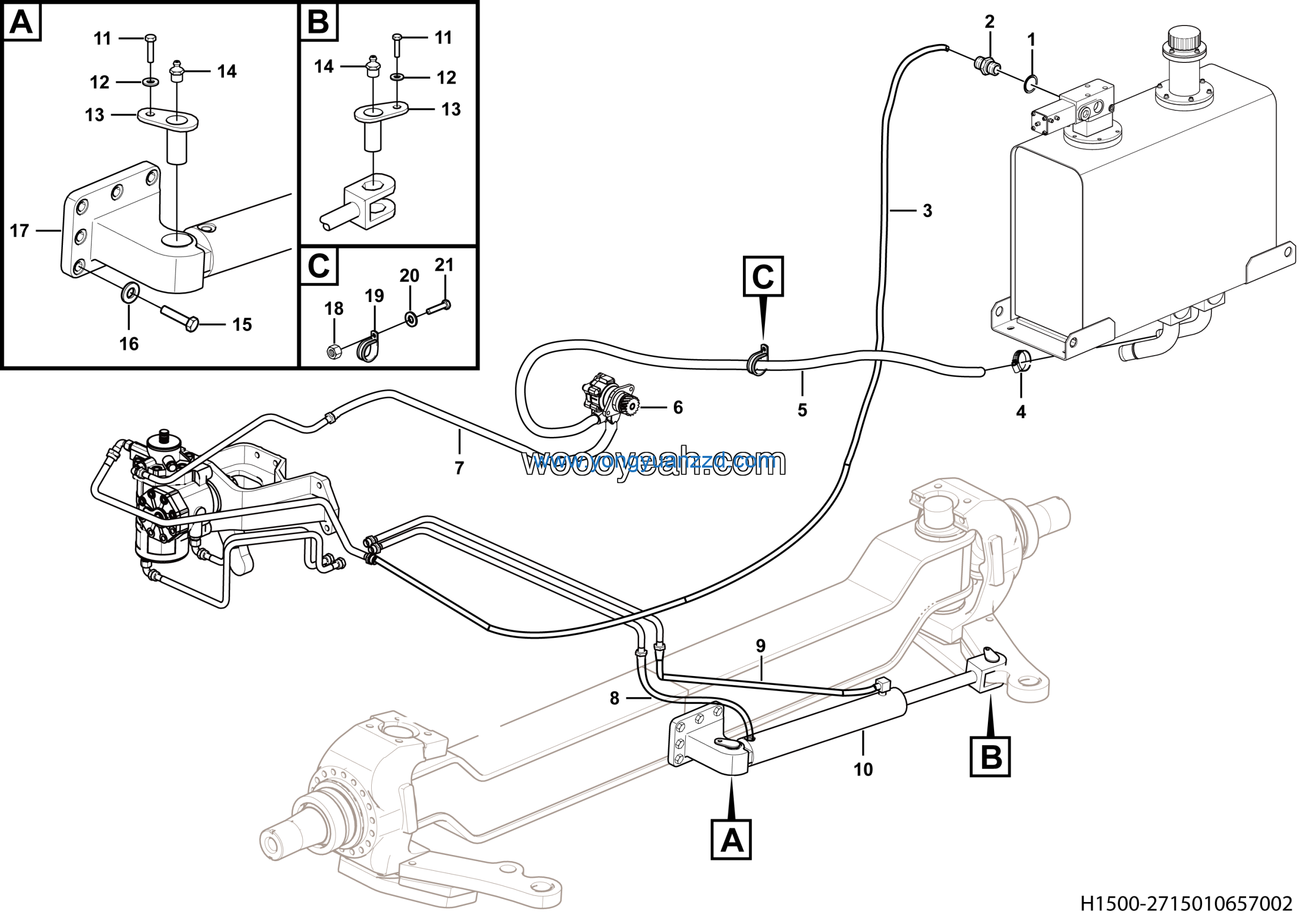

LGMG Mine Truck Mine Truck – Steering assembly – H1500-2715010657002
Category: Mine Truck > Mine Truck > M0860WAL0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Booster oil cylinder HSGL-70*35*415-785 | 4120000928 | 1 |
| 2 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 2 |
| 3 | Washer GB1230-12EpZn-45 | 4015000288 | 2 |
| 4 | Axis | 27150108681 | 2 |
| 5 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 6 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 6 |
| 7 | Washer GB93-16-65Mn | 4015000098 | 6 |
| 8 | Front axle steering holder | 27060100062 | 1 |
| 9 | Nut GB6170-M12EpZn-8 | 4013000011 | 2 |
| 10 | Clamp | 27150107941 | 2 |
| 11 | O-ring LGB168-11924 | 4041000771 | 1 |
| 12 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 13 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 2 |
| 14 | Straight joint LGB120-02622 | 4041000187 | 1 |
| 15 | Hose LGB165-010300 | 4041010111 | 1 |
| 16 | No longer used | 4030100020 | 2 |
| 17 | Hose | 27150106521 | 1 |
| 18 | Steering pump assembly(ZF) | 27150106131 | 1 |
| 19 | Hose LGB128-406060 | 4041000826 | 1 |
| 20 | Hose LGB128-006090 | 4041000922 | 1 |
| 21 | Hose LGB127-006137 | 4041010112 | 1 |
