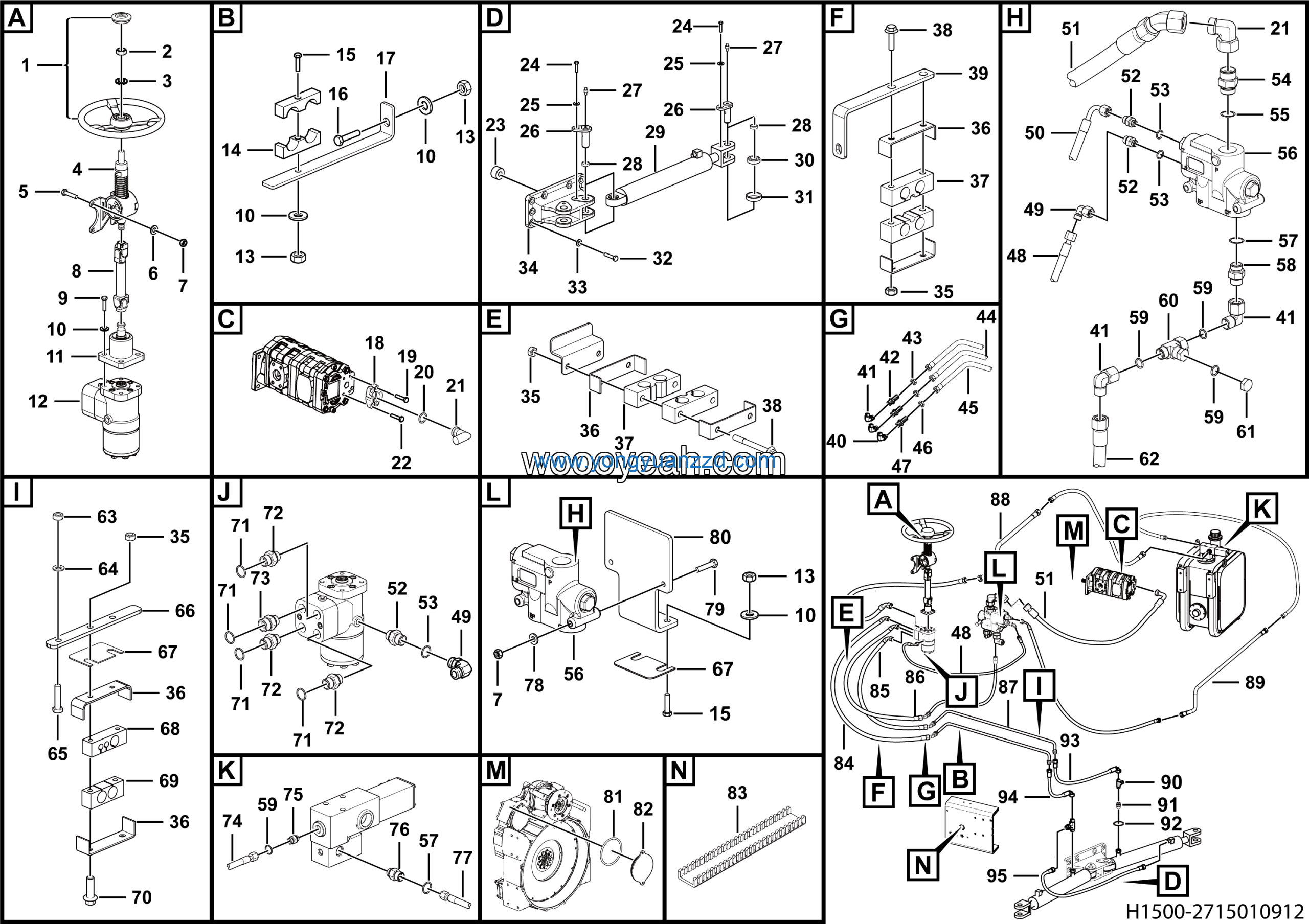

LGMG Mine Truck Mine Truck – Steering assembly – H1500-2715010912
Category: Mine Truck > Mine Truck > M086HWA10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 2 | Bracket assy | 4120001109 | 1 |
| 3 | Steering gear | 4120000719 | 1 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 5 | Hold-down block | 27150106471 | 4 |
| 6 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 7 |
| 7 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 8 | Bracket | 27150109041 | 3 |
| 9 | Outlet oil block | 27150109031 | 1 |
| 10 | Bolt GB16674.1-M10*50EpZn-8.8 | 4011000309 | 2 |
| 11 | Steering wheel 430 | 4120001247 | 1 |
| 12 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 1 |
| 13 | Combination joint LGB143-03019 | 4041001262 | 2 |
| 14 | Bolt GB16674.1-M10*55EpZn-8.8 | 4011000473 | 2 |
| 15 | Shaft | 27150106671 | 1 |
| 16 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 4 |
| 17 | Washer GB1230-12EpZn-45 | 4015000288 | 4 |
| 18 | Axis | 27150108681 | 4 |
| 19 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 20 | Sleeve | 27150108221 | 4 |
| 21 | Steering cylinder HSGL-70*40*405-790 | 4120001268 | 2 |
| 22 | Nut GB6173-M22*1.5EpZn-05 | 4013000152 | 1 |
| 23 | STOP | 27060101351 | 4 |
| 24 | Bearing GB9163-GE30ES | 4021000253 | 2 |
| 25 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 8 |
| 26 | Washer 16 | 27150105311 | 8 |
| 27 | Bracket | 27150108851 | 1 |
| 28 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 6 |
| 29 | Plate | 27150108421 | 6 |
| 30 | Block | 27150108321 | 4 |
| 31 | Bolt GB16674.1-M10*85EpZn-8.8 | 4011000136 | 4 |
| 32 | Bracket | 27150109111 | 1 |
| 33 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 34 | Combination joint LGB143-12616 | 4041001417 | 1 |
| 35 | Combination joint LGB143-12213 | 4041001218 | 3 |
| 36 | Clapboard joint | 27150109051 | 2 |
| 37 | NUT | 27150102951 | 2 |
| 38 | Right steering pipe | 27150109101 | 1 |
| 39 | Hose | 4041010209 | 1 |
| 40 | Nut | 27150103221 | 1 |
| 41 | Bulkhead joint M26 | 27150109061 | 1 |
| 42 | HOSE LGB165-003245 | 4041010149 | 1 |
| 43 | Combination joint LGB143-01406 | 4041001047 | 1 |
| 44 | Directional column | 4120001388 | 1 |
| 45 | Hose LGB165-003100 | 4041000529 | 1 |
| 46 | Hose LGB129-012175 | 4041010198 | 1 |
| 47 | Straight joint LGB120-01412 | 4041000131 | 3 |
| 48 | O-ring LGB168-10924 | 4041000784 | 3 |
| 49 | Straight joint LGB120-03028 | 4041000188 | 1 |
| 50 | O-ring LGB168-12331 | 4041000779 | 1 |
| 51 | Priority valve VLE-150 | 4120000720 | 1 |
| 52 | O-ring LGB168-11924 | 4041000771 | 2 |
| 53 | Straight joint LGB120-02222 | 4041000143 | 1 |
| 54 | O-ring LGB168-11124 | 4041000767 | 2 |
| 55 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 4 |
| 56 | Pressure test tee | 27150108791 | 1 |
| 57 | Plug LGB135-11019 | 4041000772 | 1 |
| 58 | Hose LGB129-006200 | 4041010166 | 1 |
| 59 | Nut GB6170-M12EpZn-8 | 4013000011 | 1 |
| 60 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 61 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 1 |
| 62 | Plate | 27150109601 | 1 |
| 63 | Adjusting shim | 27150109631 | 4 |
| 64 | Rubber clip | 27150109611 | 1 |
| 65 | Rubber clip | 27150109621 | 1 |
| 66 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 67 | Bolt GB16674.1-M10*95EpZn-8.8 | 4011000316 | 2 |
| 68 | O-ring LGB168-11724 | 4041000783 | 4 |
| 69 | Straight joint LGB120-02220 | 4041000132 | 3 |
| 70 | Straight joint LGB120-02620 | 4041000564 | 1 |
| 71 | Hose assembly lgb166-003085 | 4041010170 | 1 |
| 72 | Straight joint LGB120-01414 | 4041000133 | 1 |
| 73 | Straight joint LGB120-02622 | 4041000187 | 1 |
| 74 | Hose LGB165-010088 | 4041010125 | 1 |
| 75 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 76 | Bolt GB16674.1-M8*90EpZn-8.8 | 4011000493 | 2 |
| 77 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 78 | Fixing plate | 27150108771 | 1 |
| 79 | O-ring GB3452.1-106*3.55G | 4030000305 | 1 |
| 80 | Plate | 27150108551 | 1 |
| 81 | String casing | 27140105021 | 1 |
| 82 | Hose LGB129-006160 | 4041010199 | 1 |
| 83 | Hose LGB129-006165 | 4041010168 | 1 |
| 84 | Hose LGB166-010175 | 4041010200 | 1 |
| 85 | Left steering tube | 27150109081 | 1 |
| 86 | Return oil tube assembly | 27150109151 | 1 |
| 87 | Return oil tube assembly | 27150109171 | 1 |
| 88 | Steering transmission shaft | 4120001108 | 1 |
| 89 | Tee CC-22 | 4190001347 | 2 |
| 90 | Straight joint LGB155-01822 | 4041000822 | 2 |
| 91 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 2 |
| 92 | Hose LGB128-006085 | 4041000525 | 1 |
| 93 | HOSE LGB128-006058 | 4041010118 | 1 |
| 94 | Hose LGB127-006077 | 4041010201 | 2 |
| 95 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
