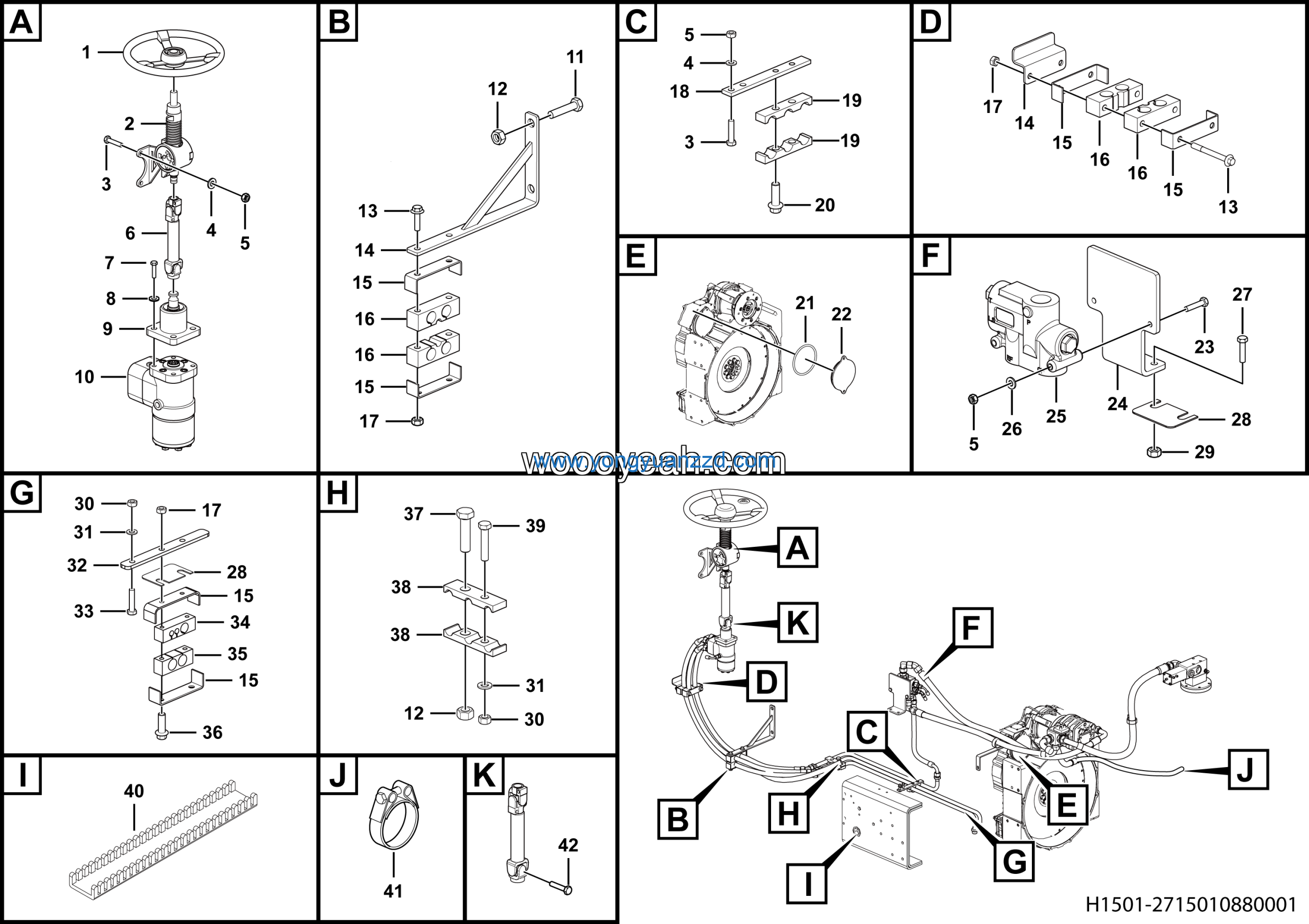

LGMG Mine Truck Mine Truck – Steering assembly – H1501-2715010880001
Category: Mine Truck > Mine Truck > M0860WAT0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Steering gear | 4120000719 | 1 |
| 2 | Bolt GB5782-M16*70EpZn-8.8 | 4011000231 | 2 |
| 3 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 3 |
| 4 | Bolt GB16674.1-M10*85EpZn-8.8 | 4011000136 | 4 |
| 5 | Bracket | 27150109311 | 1 |
| 6 | Plate | 27150108421 | 4 |
| 7 | Block | 27150108321 | 6 |
| 8 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 6 |
| 9 | Plate | 27150108431 | 1 |
| 10 | Plate | 27150108291 | 2 |
| 11 | Steering wheel 430 | 4120001247 | 1 |
| 12 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
| 13 | O-ring GB3452.1-106*3.55G | 4030000305 | 1 |
| 14 | Plate | 27150108551 | 1 |
| 15 | Bolt GB16674.1-M8*90EpZn-8.8 | 4011000493 | 2 |
| 16 | Fixing plate | 27150108771 | 1 |
| 17 | Priority valve VLE-150 | 4120000720 | 1 |
| 18 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 19 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 20 | Adjusting shim | 27150109631 | 4 |
| 21 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 22 | Directional column | 4120001388 | 1 |
| 23 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 24 | Washer GB97.1-12EpZn-300HV | 4015000168 | 6 |
| 25 | Plate | 27150109601 | 1 |
| 26 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 1 |
| 27 | Rubber clip | 27150109621 | 1 |
| 28 | Rubber clip | 27150109611 | 1 |
| 29 | Bolt GB16674.1-M10*95EpZn-8.8 | 4011000316 | 2 |
| 30 | Bolt GB5782-M16*80EpZn-8.8 | 4011000226 | 1 |
| 31 | Plate | 27150108301 | 2 |
| 32 | Bolt GB5782-M12*70EpZn-8.8 | 4011000212 | 1 |
| 33 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 5 |
| 34 | Cable protector | 27140108701 | 1 |
| 35 | No longer used | 4030100020 | 2 |
| 36 | Bolt GB5783-M10*40EpZn-10.9 | 4011000578 | 1 |
| 37 | Washer GB96.1-8EpZn-300HV | 4015000256 | 5 |
| 38 | Nut GB6170-M8EpZn-8 | 4013000033 | 7 |
| 39 | Steering transmission shaft | 4120001108 | 1 |
| 40 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 41 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 42 | Bracket assy | 4120001109 | 1 |
