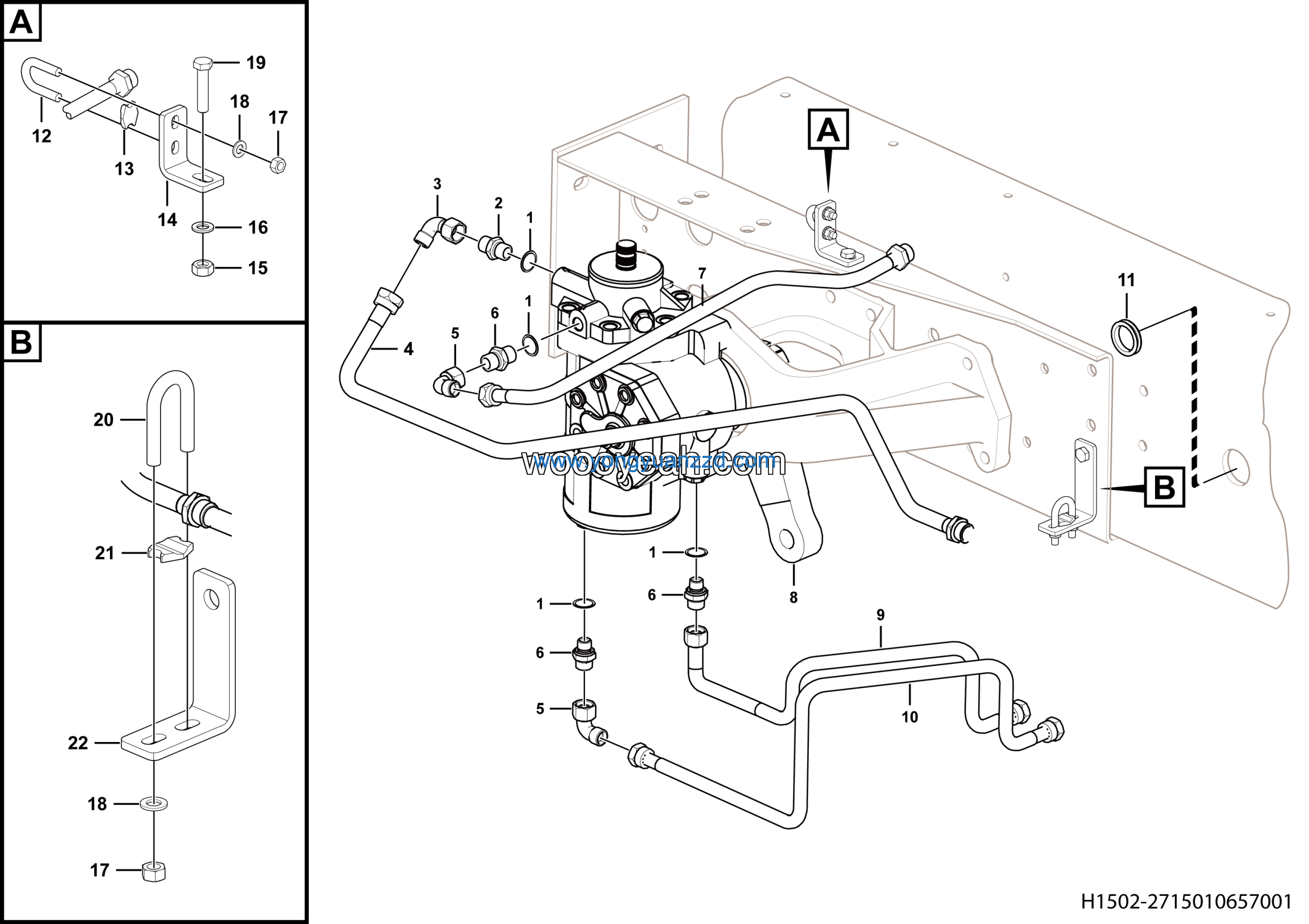

LGMG Mine Truck Mine Truck – Steering assembly – H1502-2715010657001
Category: Mine Truck > Mine Truck > M0860WEN0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe | 27150106321 | 1 |
| 2 | String casing | 27140105021 | 1 |
| 3 | U-Bolt LGB159-11826 | 4041001225 | 3 |
| 4 | Baseplate LGB160-1826 | 4041001226 | 3 |
| 5 | Bracket | 27150105991 | 1 |
| 6 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 7 | Washer GB96.1-10EpZn-300HV | 4015000197 | 1 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 9 |
| 9 | Washer GB96.1-8EpZn-300HV | 4015000256 | 9 |
| 10 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 1 |
| 11 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 5 |
| 12 | U-bolt LGB159-12028 | 4041001239 | 1 |
| 13 | Baseplate LGB160-2028 | 4041001240 | 1 |
| 14 | Bracket | 27150106961 | 1 |
| 15 | Straight joint | 27150102981 | 1 |
| 16 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 17 | Pipe | 27150106281 | 1 |
| 18 | Combination joint LGB143-02213 | 4041001156 | 3 |
| 19 | Straight joint LGB155-01822 | 4041000822 | 4 |
| 20 | Pipe | 27150106261 | 1 |
| 21 | Steering arm | 4120000984 | 1 |
| 22 | Pipe | 27150106301 | 1 |
