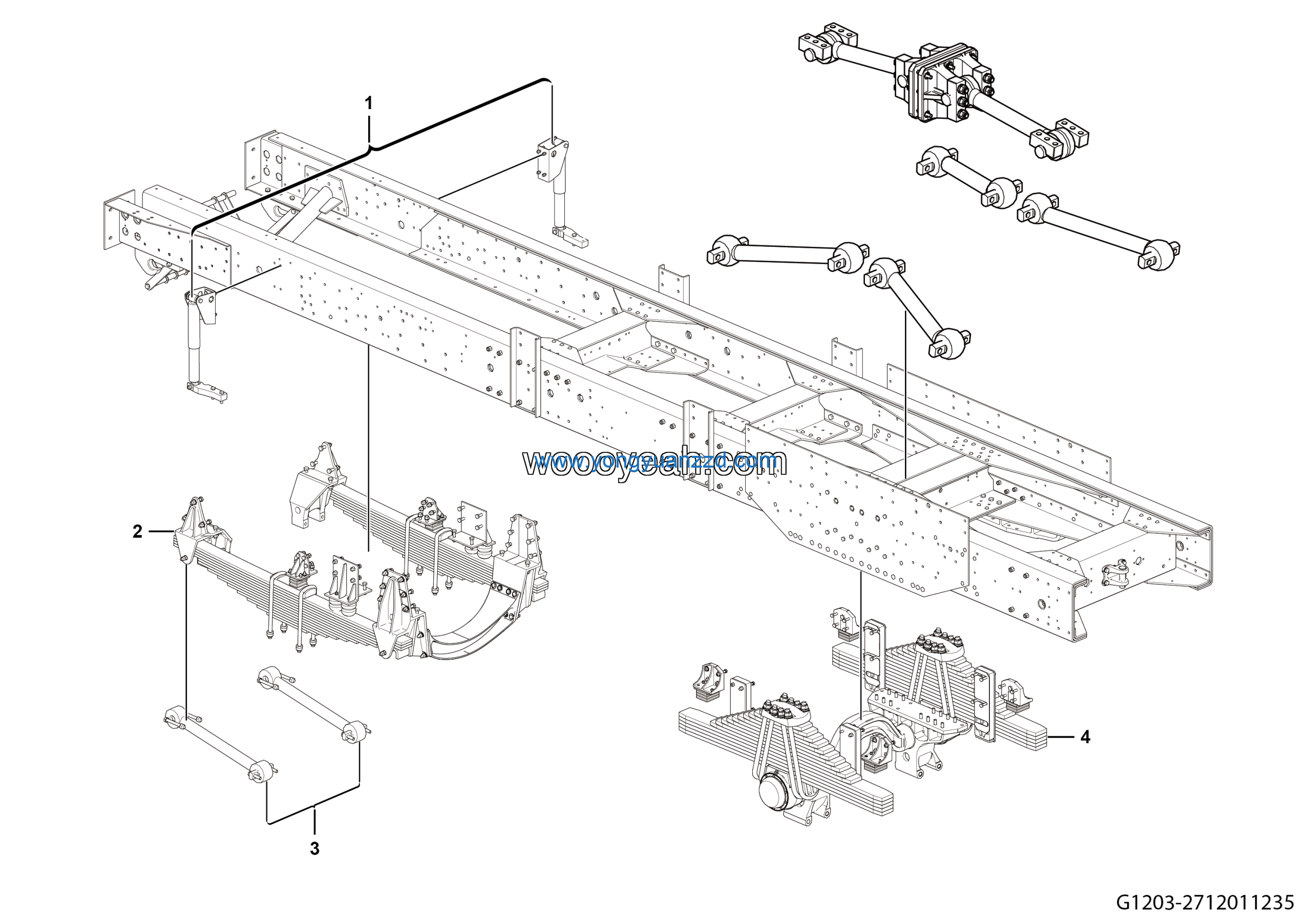

LGMG MT86D Mine Truck – Suspension assy – G1203-2712011235
Category: Mine Truck > MT86D > M086DWA51
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Shock absorber assembly | 27120115731 | 1 |
| 2 | Front blade spring nstallation assembly | 27120112361 | 1 |
| 3 | Front thrust rod install assembly | 27120112341 | 1 |
| 4 | Rear suspension assembly | 27120108981 | 1 |
| 5 | Rear thrusting rod mounting assembly | 27120103921 | 1 |
