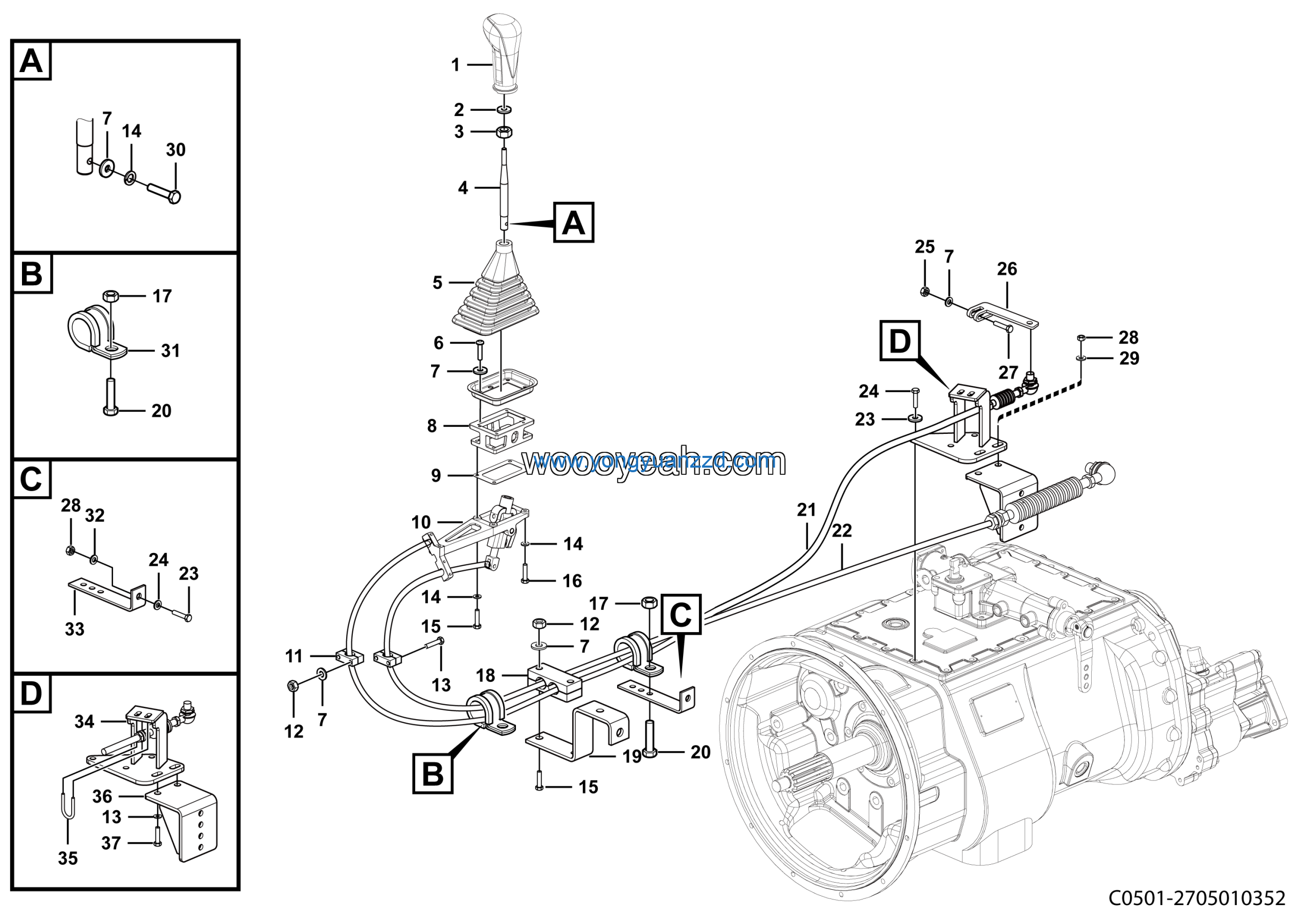

LGMG Mine Truck Mine Truck – Variable speed control assy – C0501-2705010352
Category: Mine Truck > Mine Truck > M0860WE01
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Controller | 27050101531 | 1 |
| 2 | IRONⅡ | 27050104672 | 4 |
| 3 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 6 |
| 4 | Bolt GB5782-M8*50EpZn-8.8 | 4011000223 | 4 |
| 5 | Washer GB93-8-65Mn | 4015000036 | 5 |
| 6 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 4 |
| 7 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 8 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 9 | IRONⅠ | 27050104661 | 2 |
| 10 | Bracket | 27050104682 | 1 |
| 11 | 7-Speed transmission shift lever | 4110000505 | 1 |
| 12 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 1 |
| 13 | The selector flexible shaft assembly | 27050101551 | 1 |
| 14 | The shift flexible shaft assembly | 27050101562 | 1 |
| 15 | Washer GB93-10-65Mn | 4015000025 | 6 |
| 16 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 17 | Nut GB889.1-M8EpZn-8 | 4013000210 | 1 |
| 18 | Selecting rocker arm | 4110000545 | 1 |
| 19 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 1 |
| 20 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
| 21 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 22 | Washer GB93-12-65Mn | 4015000026 | 1 |
| 23 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 24 | Flexshaft clamp | 27050101691 | 2 |
| 25 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 26 | Bracket | 27050101701 | 1 |
| 27 | Selecting flexible shaft bracket | 4110000515 | 1 |
| 28 | U-Clamp assy | 4190000302 | 2 |
| 29 | Shifting flexible shaft bracket | 4110000546 | 1 |
| 30 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 31 | Nut GB6170-M12EpZn-8 | 4013000011 | 1 |
| 32 | Transmission control lever | 27050101675 | 1 |
| 33 | Dust cover | 4110000209 | 1 |
| 34 | Screw GB70.1-M8*25-8.8 | 4014000171 | 6 |
| 35 | Washer GB848-8EpZn-300HV | 4015010215 | 14 |
| 36 | Manipulator connecting block | 27050101511 | 1 |
| 37 | Pad of paper | 27050101521 | 1 |
