LGMG MS25 Mine Truck – Frame assy – I1400-2714012718

Category:

LGMG MS25 Mine Truck – Frame assy – I1400-2714012718

Category: Mine Truck > MS25 > MS250WE01

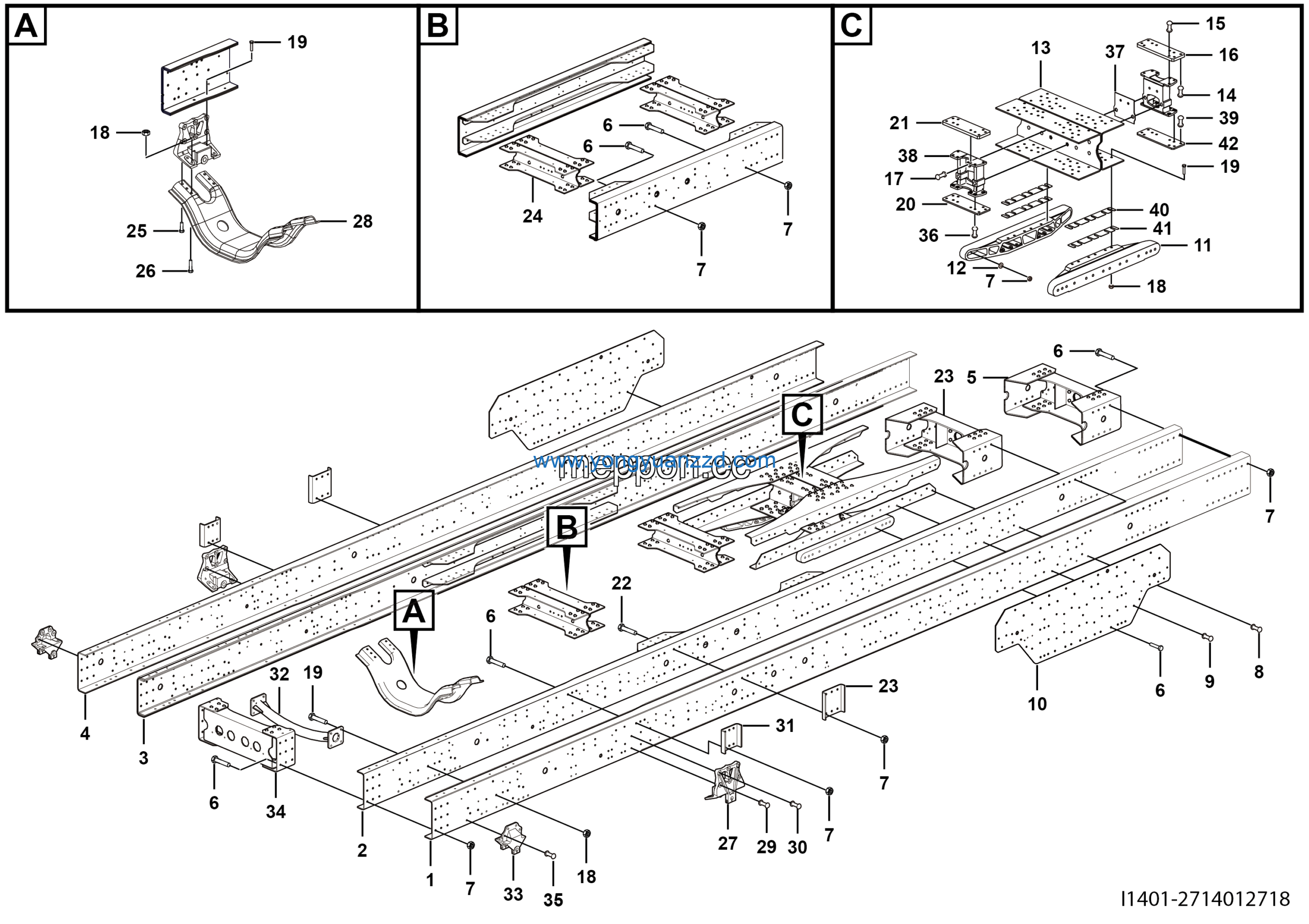

Parts List:

No. Part Name Part Number Qty
1 Plate 27140127291 2
2 Support 27120110921 2
3 Washer GB1230-16EpZn-45 4015000001 28
4 Balance shaft reinforce beam assembly 27140113581 1
5 RIVET GB867-14*48 4019000113 8
6 RIVET GB867-14*62 4019000119 12
7 BASE PLATE 27140113651 1
8 RIVET GB867-14*68 4019000121 2
9 Nut GB6185.2-M14*1.5-12 4013010266 23
10 Bolt GB5786-M14*1.5*50-12.9 4011010606 19
11 Left carling 27140127191 1
12 BASE PLATE 27140113661 1
13 BASE PLATE 27140113671 1
14 Bolt GB5786-M16*1.5*60-12.9 4011010219 6
15 UP CONNECT PLATE 27140113681 2
16 Beam 27140121411 1
17 BOLT GB5786-M14*1.5*30-12.9 4011010608 4
18 Bolt GB5786-M14*1.5*45-12.9 4011010607 8
19 Front plate spring rear support 27120110881 2
20 Beam 27120110891 1
21 RIVET GB867-14*85 4019010171 6
22 Left reinforce carling 27140127201 1
23 RIVET GB867-14*75 4019010172 6
24 FRONT CONNECT PLATE 27170117451 2
25 REINFORCE BEAM 27140115581 1
26 Front plate spring front support 27120110871 2
27 FIRST CROSSWISE BEAM ASSEMBLY 27140113791 1
28 RIVET GB867-16*55 4019000135 12
29 Rivet GB867-14*52 4019000115 12
30 3MM PLATE 27140113831 1
31 Seat 27120110931 2
32 RIVET GB867-14*36 4019000107 8
33 Right reinforce carling 27140127211 1
34 ADJUSTMENT GASKET 27140115641 2
35 ADJUSTMENT GASKET 27140115651 2
36 Plate 27140113841 1
37 Right carling 27140127221 1
38 FINAL BEAM ASSEMBLY 27140113521 2
39 BOLT GB5786-M16*1.5*50-12.9 4011010738 136
40 Nut GB6185.2-M16*1.5-12 4013010222 142
41 RIVET GB867-14*46 4019000112 32
42 RIVET GB867-14*55 4019000116 52
