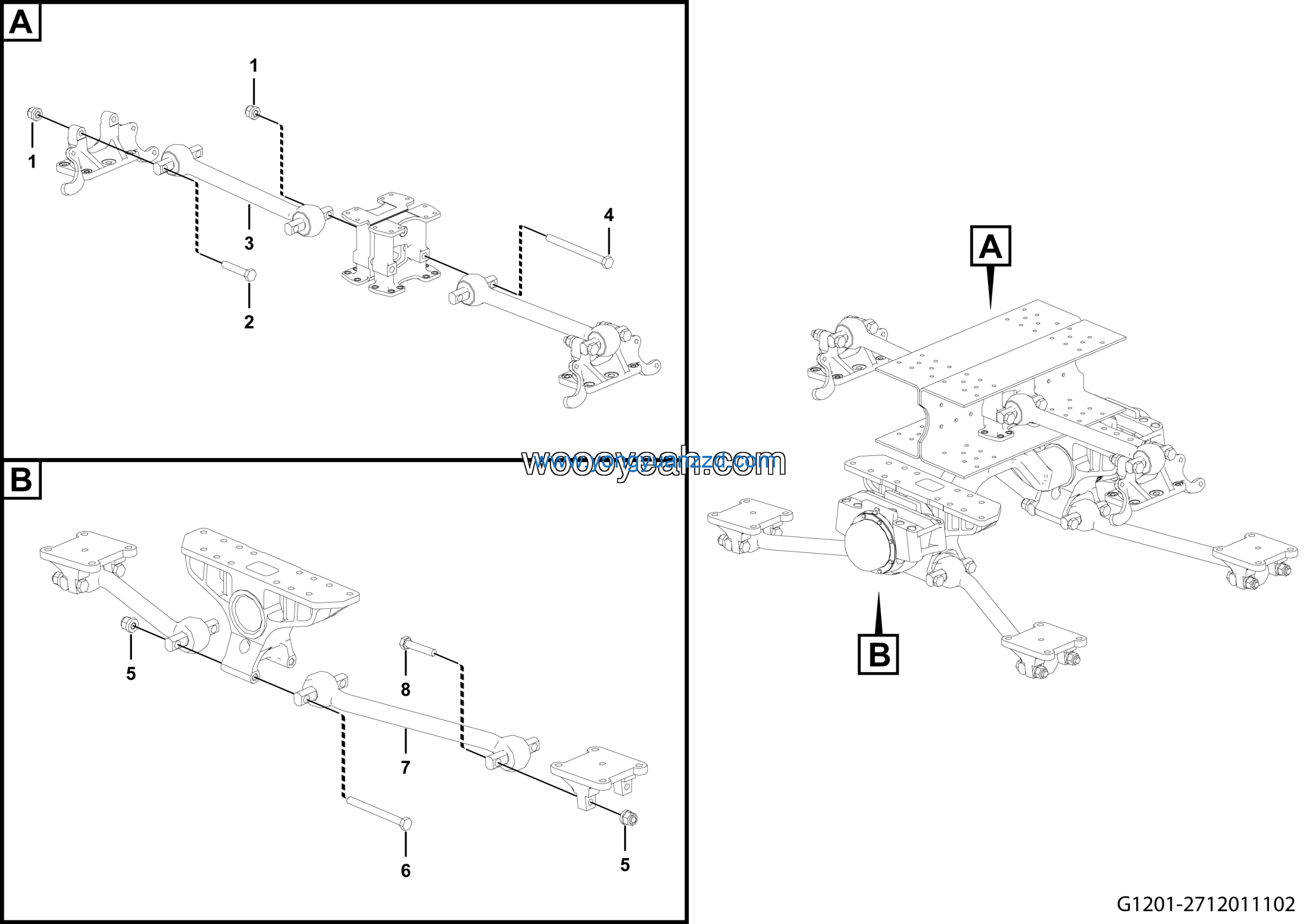

LGMG MS25 Mine Truck – Rear thrust rod installation assy – G1201-2712011102
Category: Mine Truck > MS25 > MS250WA31
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB2148-M24flZnyc-12-480 | 4013010263 | 6 |
| 2 | Bolt GB5782-M24*120flZnyc-12.9-480 | 4011010601 | 4 |
| 3 | Upr thrust rod assy | 4110001029 | 2 |
| 4 | Bolt GB5782-M24*270flZnyc-12.9-480 | 4011010603 | 2 |
| 5 | Nut GB2148-M22flZnyc-12-480 | 4013010264 | 12 |
| 6 | Bolt GB5782-M22*230flZnyc-12.9-480 | 4011010604 | 4 |
| 7 | Lower thrust rod assy | 4110001030 | 4 |
| 8 | Bolt GB5782-M22*110flZnyc-12.9-480 | 4011010602 | 8 |
