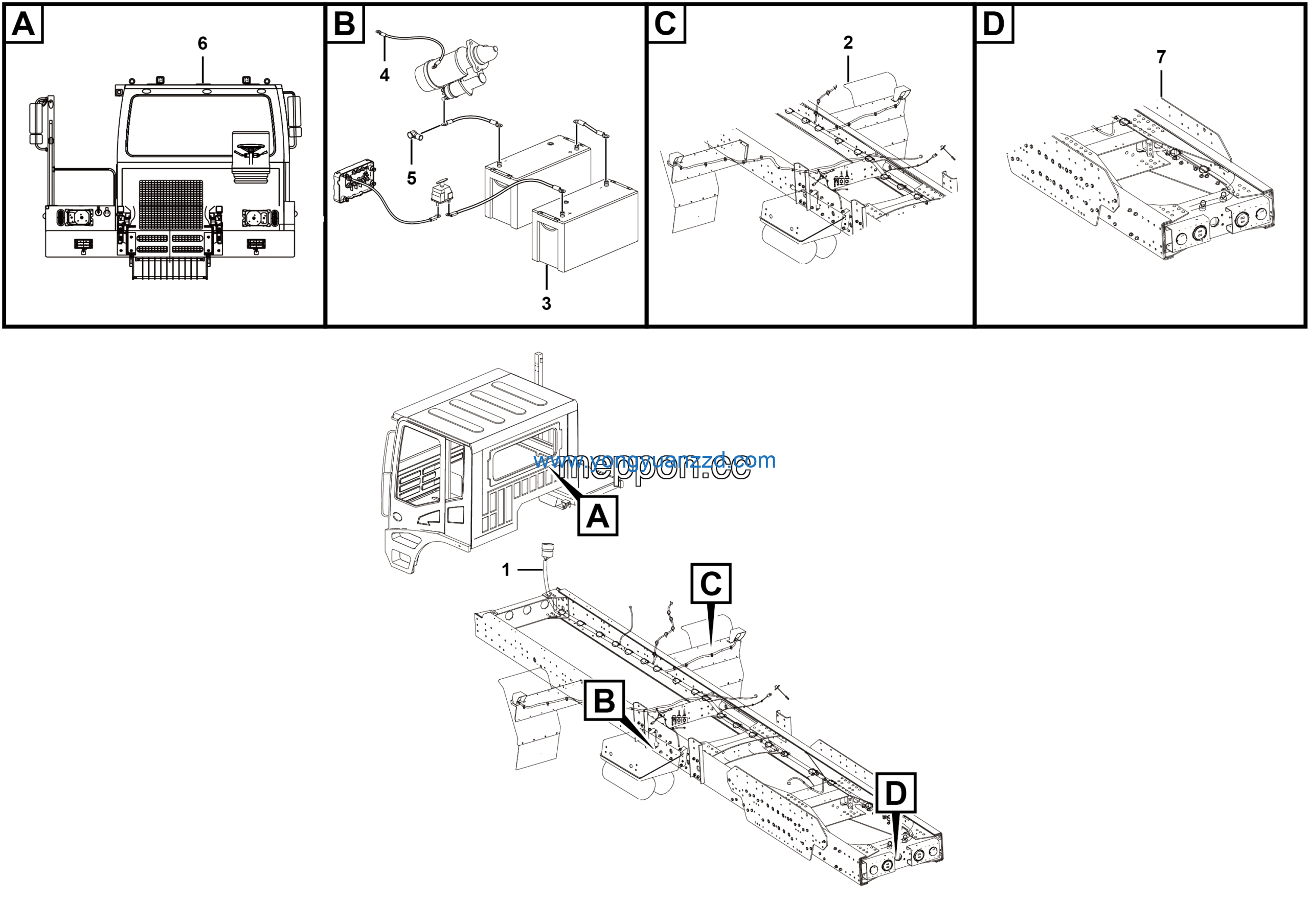

LGMG MS40 Mine Truck – Chassis electric system – K2001-2720010894
Category: Mine Truck > MS40 > MS400WE10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | CAGE WIRING HARNESS | 27200108921 | 1 |
| 2 | THE LEFT WING | 27200108901 | 1 |
| 3 | Wire | 27200104921 | 1 |
| 4 | Red battery cable sheath | 26370002451 | 1 |
| 5 | Wire | 27200107751 | 1 |
| 6 | Electrical module | 27200107511 | 1 |
| 7 | Frame central electrical module | 27200107521 | 1 |
| 8 | WING STIFFENER 1 | 27200108911 | 1 |
| 9 | Electrical system | 27370102081 | 1 |
