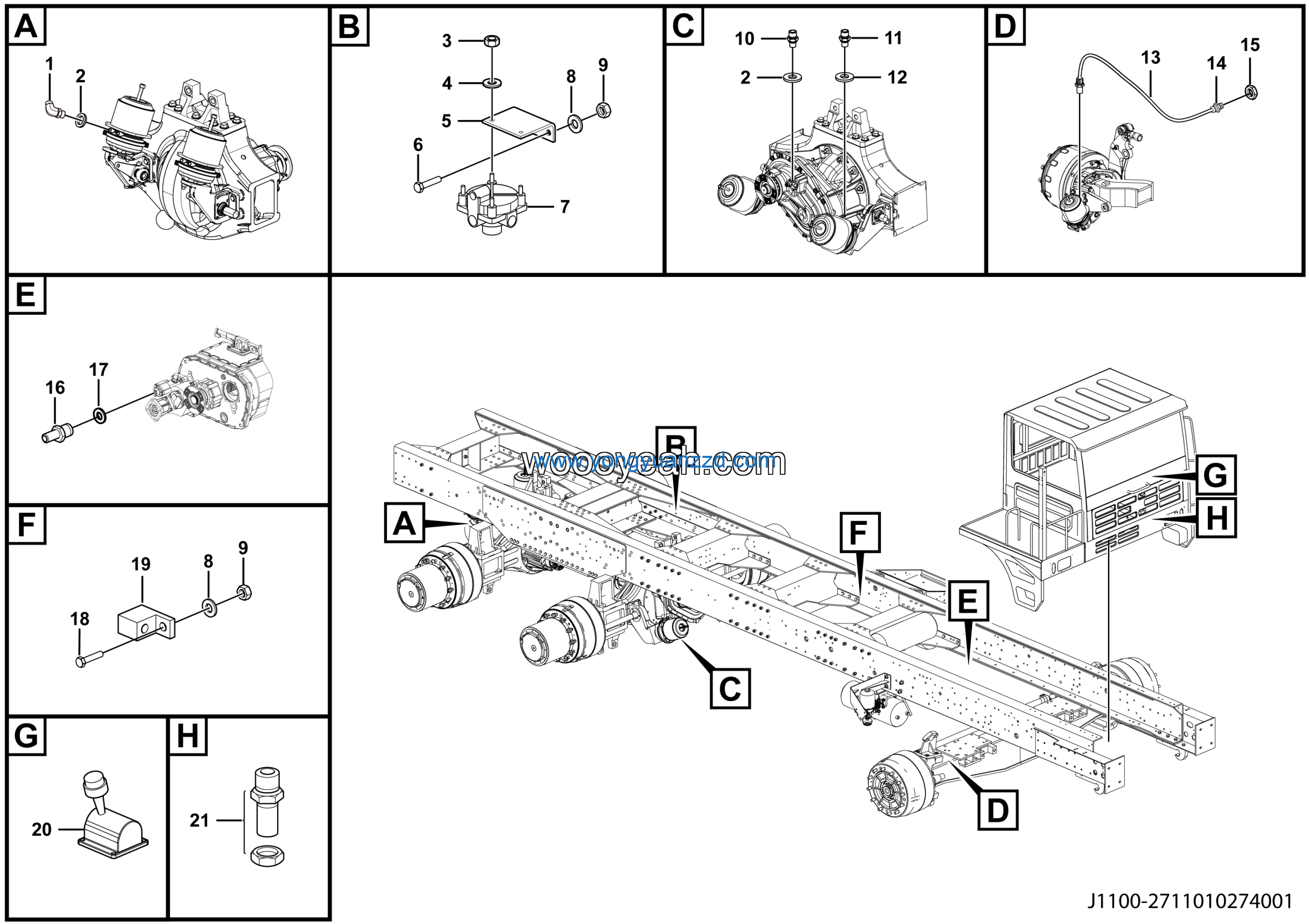

LGMG MS40 Mine Truck – Parking brake assy 1 – J1100-2711010274001
Category: Mine Truck > MS40 > MS400WA30
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | CONNECTOR | 27100100661 | 4 |
| 2 | Joint M12-M12 | 27110101331 | 1 |
| 3 | Washer JB982-12 | 4015000327 | 1 |
| 4 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 5 | Partition connector body L12 NG12 | 4120000257 | 2 |
| 6 | Nut M18 | 4120000230 | 4 |
| 7 | M10-M12 Joint | 27100102051 | 1 |
| 8 | Washer JB982-10 | 4015000140 | 1 |
| 9 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 5 |
| 10 | Pressure switch block | 27110101381 | 1 |
| 11 | M16-M18 rectangular connector | 27100100641 | 2 |
| 12 | Hand brake valve | 4120000134 | 1 |
| 13 | connector | 27110101371 | 1 |
| 14 | Washer JB982-16 | 4015000141 | 6 |
| 15 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 16 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 17 | Plate | 27100106811 | 1 |
| 18 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 2 |
| 19 | Relay valve | 4120001087 | 1 |
| 20 | Washer GB97.1-10EpZn-300HV | 4015000162 | 17 |
| 21 | Nut GB6170-M10EpZn-8 | 4013000007 | 21 |
