LGMG MT106 2025 – Fan shroud assy – L3901-2739010455.S1A
Category: 2025 > MT106 > M1060W3E0M047

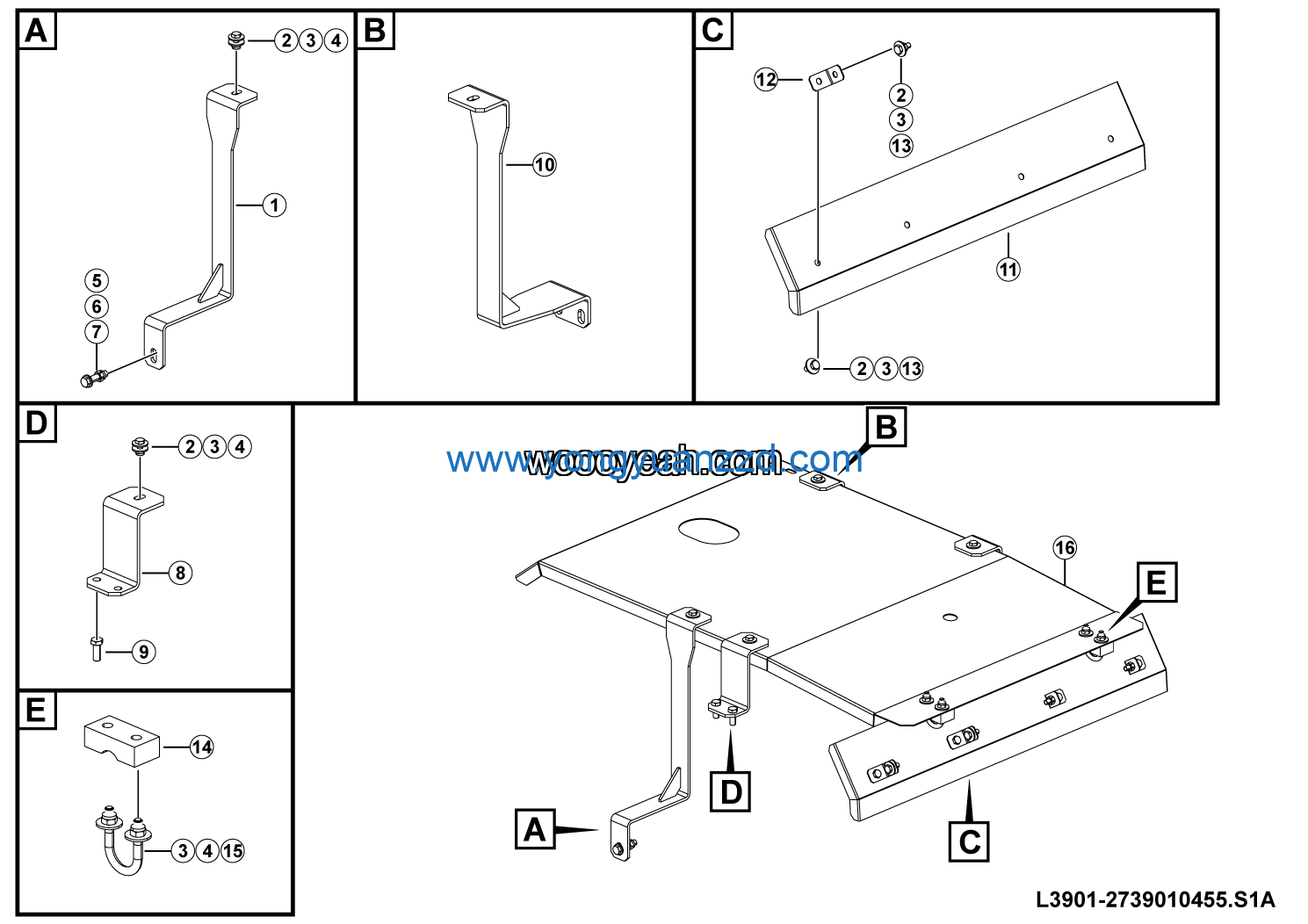

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Connecting plate wldmt | 27390104711 | 1 |
| 2 | Front guard plate | 27390100361 | 1 |
| 3 | Connecting plate | 27390100351 | 4 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 5 | Rubber mat | 27390100201 | 2 |
| 6 | U SHAP BOLT | 27390100171 | 2 |
| 7 | Shroud | 27390104561 | 1 |
| 8 | Connecting plate wldmt | 27390104491 | 1 |
| 9 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 12 |
| 10 | Washer GB96.1-10EpZn-300HV | 4015000197 | 21 |
| 11 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 9 |
| 12 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 3 |
| 13 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 14 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 3 |
| 15 | Connecting seat | 27390100801 | 2 |
| 16 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 4 |
