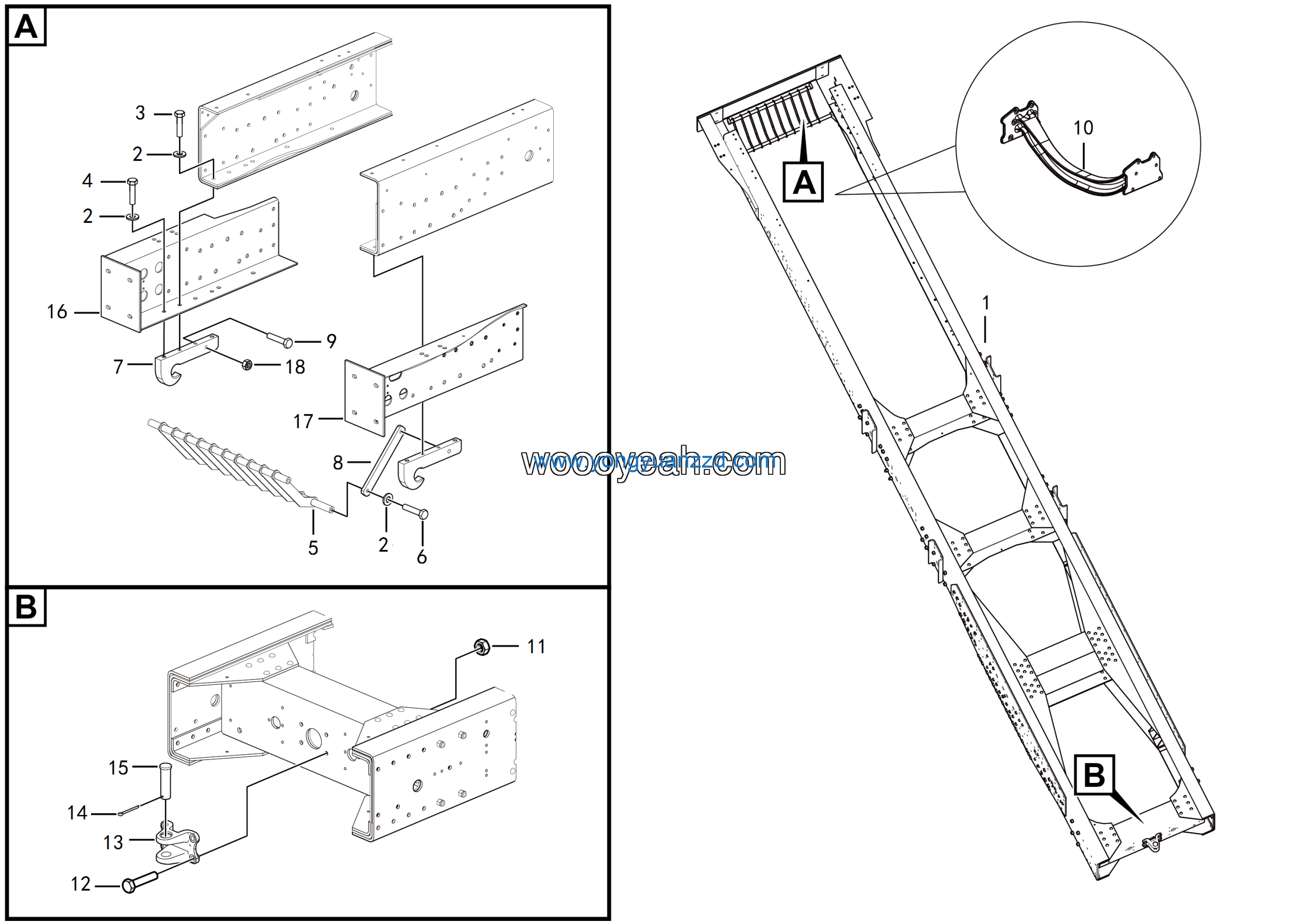

LGMG MT106 2025 – Frame assy – I1401-2714014849
Category: 2025 > MT106 > M1060W3E0M035
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | First beam | 27140124852 | 1 |
| 2 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 3 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 4 |
| 4 | Rear traction seat | 27140104822 | 1 |
| 5 | Pin GB91-6.3*71EpZn-Q235A | 4016010125 | 1 |
| 6 | Pin | 27140105842 | 1 |
| 7 | Plate | 27140149111 | 1 |
| 8 | Plate | 27140149091 | 1 |
| 9 | Nut GB6185.2-M16*1.5EpZn-8 | 4013010168 | 2 |
| 10 | Chasis | 27140148504 | 1 |
| 11 | Washer GB97.1-16EpZn-300HV | 4015000181 | 12 |
| 12 | Bolt GB5786-M16*1.5*55flZnyc-12.9-480 | 4011010640 | 6 |
| 13 | Bolt GB5786-M16*1.5*35flZnyc-12.9-480 | 4011010534 | 4 |
| 14 | Front guard | 27140104952 | 1 |
| 15 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 2 |
| 16 | Front pull hook | 27140149463 | 2 |
| 17 | Beam | 27140149131 | 2 |
| 18 | BOLT GB5785-M16*1.5*75EpZn-8.8 | 4011010461 | 2 |
