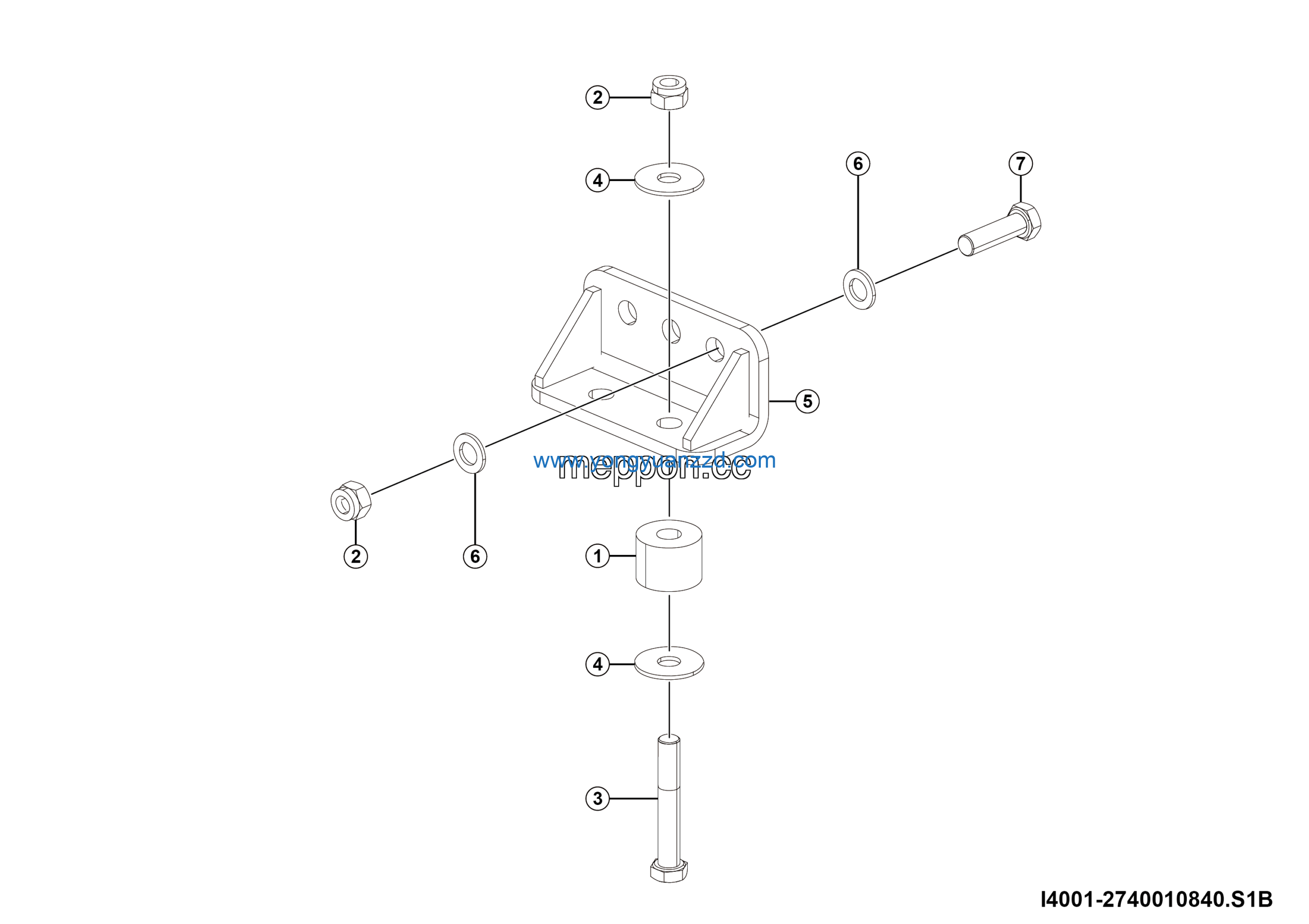

LGMG MT106 2025 – Front connection seat installation – I4001-2740010840.S1B
Category: 2025 > MT106 > M1060W3E0M047
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Block | 27170133181 | 2 |
| 2 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 5 |
| 3 | Bolt GB5785-M16*1.5*90flZnyc-12.9-480 | 4011010558 | 2 |
| 4 | Washer GB96.1-16flZnyc-300HV-480 | 4015010334 | 4 |
| 5 | Seat | 27170133151 | 1 |
| 6 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 6 |
| 7 | Bolt GB5785-M16*1.5*65flZnyc-12.9-480 | 4011010698 | 3 |
