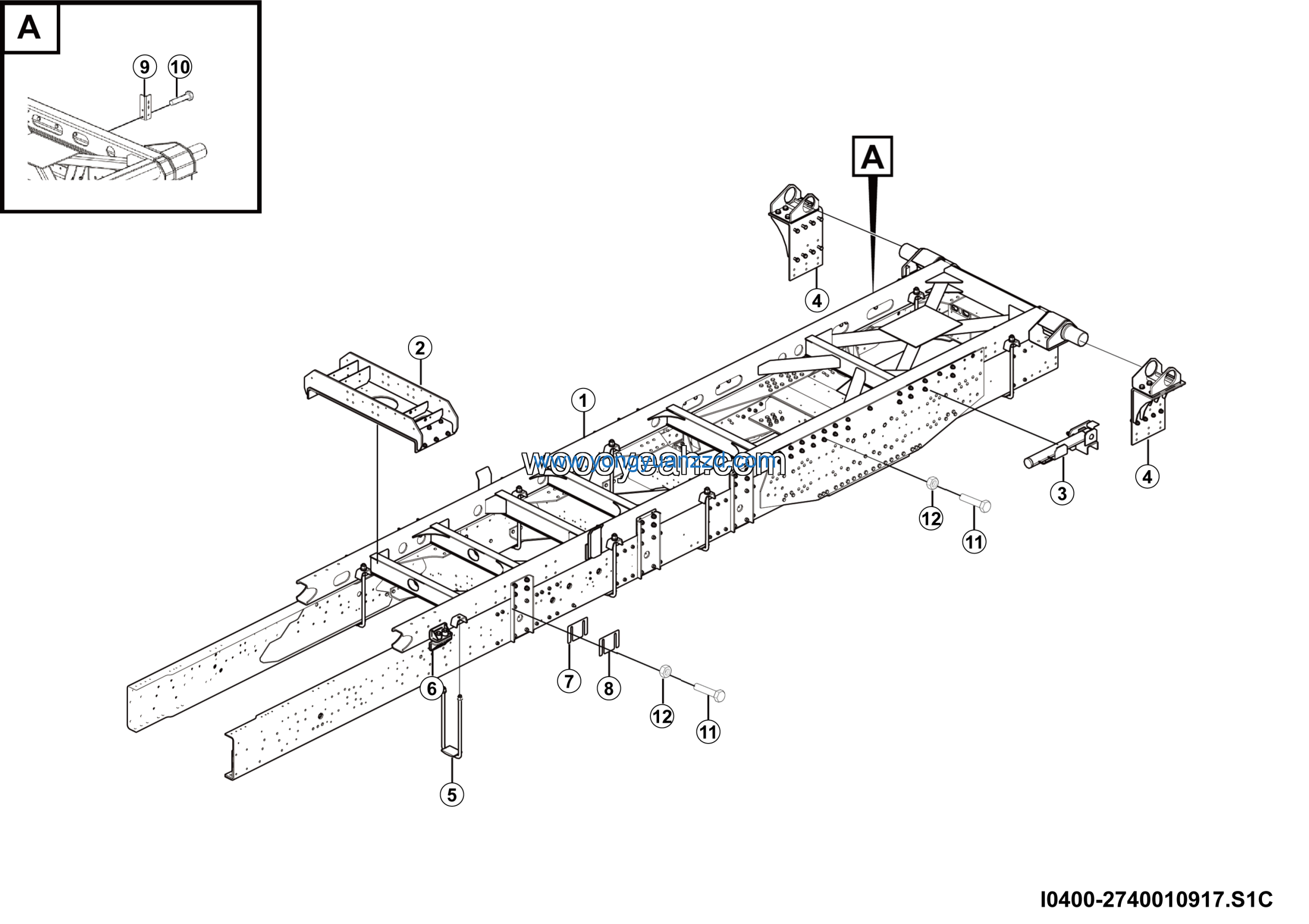

LGMG MT106 2025 – Sub-frame assembly – I0400-2740010917.S1C
Category: 2025 > MT106 > M1060W3E0M037
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 2 | Bolt QC340.2-M18*1.5*50EpZn-10.9 | 4011011598 | 78 |
| 3 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 78 |
| 4 | Auxiliary frame | 27400108703 | 1 |
| 5 | Lifting seat mounting | 27400109111 | 1 |
| 6 | Assembly | 27400108971 | 1 |
| 7 | Rear flip mount assembly | 27400113981 | 1 |
| 8 | U-bolt mounting assy | 27400108351 | 4 |
| 9 | Plate | 27400108401 | 2 |
| 10 | Spacer 210*150*0.5 | 27400119271 | 4 |
| 11 | Spacer 210*150*1 | 27400119281 | 4 |
| 12 | PLATE | 27170128381 | 1 |
