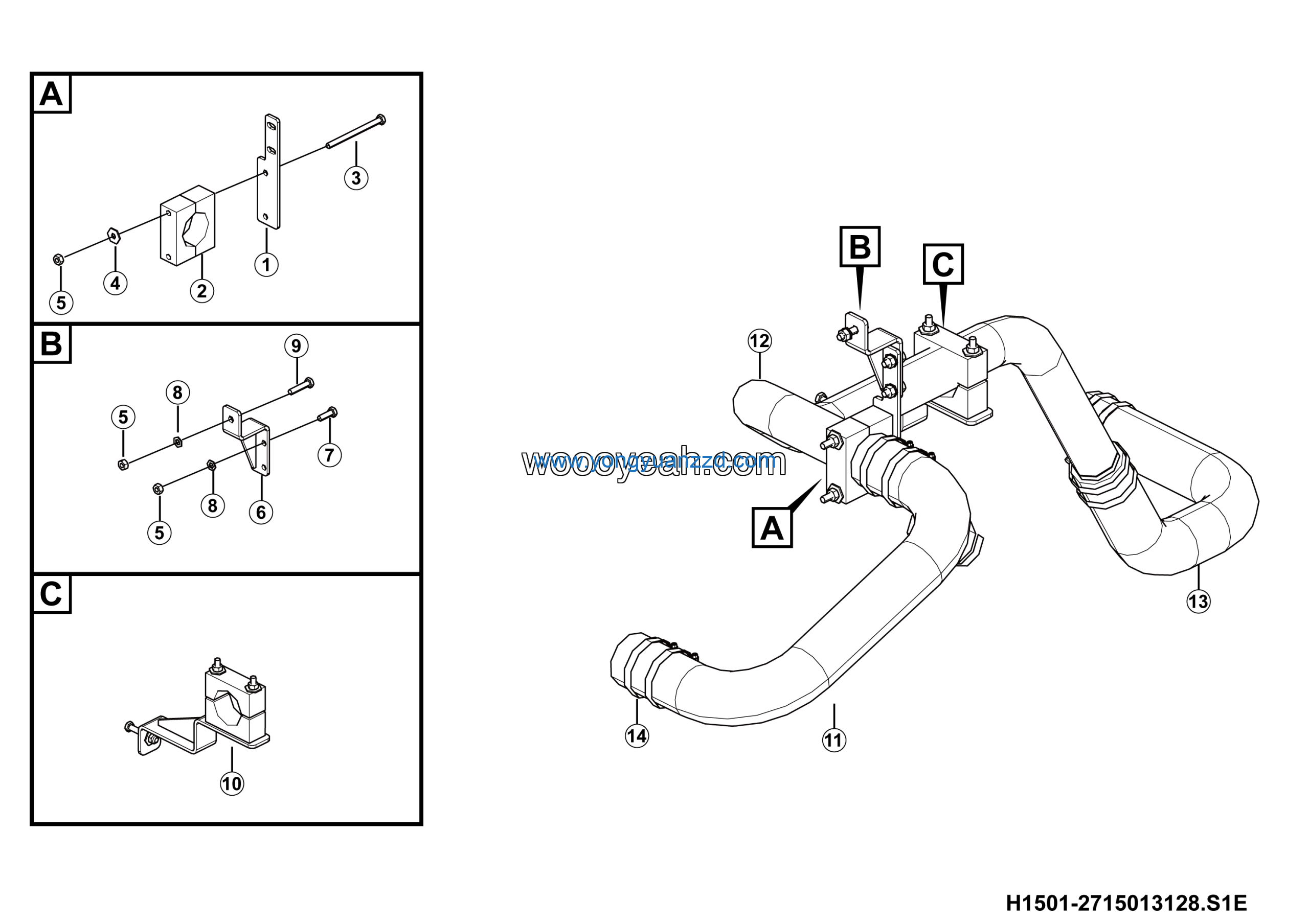

LGMG MT106H 2025 – ASM-Oil suction hose – H1501-2715013128.S1E
Category: 2025 > MT106H > M106HW3A0M809
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Asm-bracket | 27150130561 | 1 |
| 2 | Oil suction hose82*7*943 | 27150131263 | 1 |
| 3 | Welding pipe | 27150131273 | 1 |
| 4 | Pipe | 27150128171 | 1 |
| 5 | Butterfly spring clamp φ70-φ92 | 4190708164 | 4 |
| 6 | Plate 245*50*6 | 27150141961 | 1 |
| 7 | Clip | 27150128141 | 2 |
| 8 | Bolt GB5782-M10*130EpZn-8.8 | 4011000535 | 2 |
| 9 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 10 | Nut GB6170-M10EpZn-8 | 4013000007 | 5 |
| 11 | Pipe bracket weldment | 27150132001 | 1 |
| 12 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 13 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 14 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 1 |
