LGMG MT106H 2025 – Frame – G1401-2714018945.S1D
Category: 2025 > MT106H > M106HW3A0M808

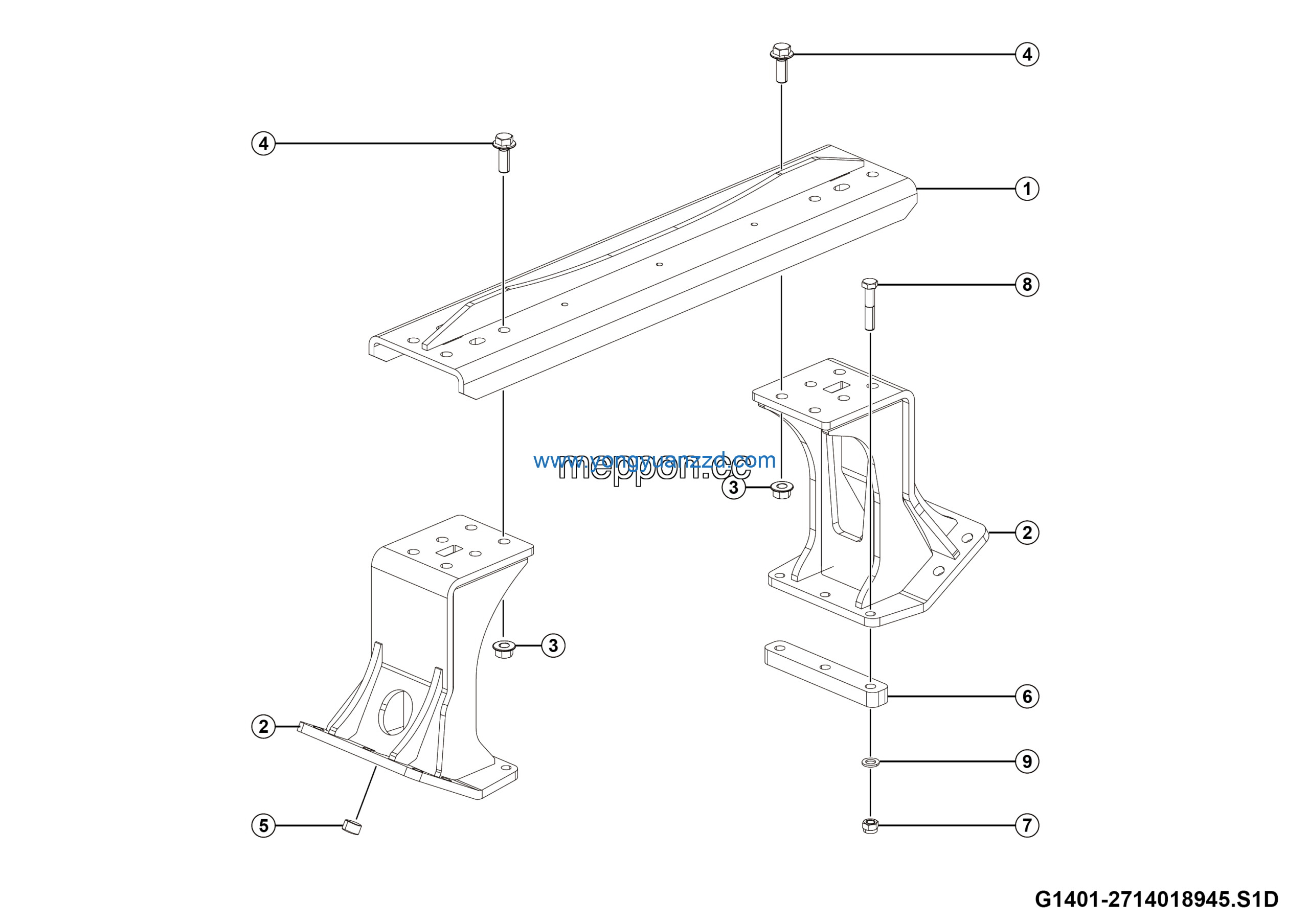

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hydro-pnenumatic spring mount crossbeam wldmt | 27120181152 | 1 |
| 2 | Walkway mid bracket wldmt | 27120183091 | 1 |
| 3 | Nut GB6177.2-RLM18*1.5flZnyc-12 | 4013010562 | 12 |
| 4 | Bolt QC340-M18*1.5*50flZnyc-12.9 | 4011011708 | 12 |
| 5 | Cushion block | 27120113681 | 2 |
| 6 | Connecting plate spacer 270 * 45 * 28 | 27140187981 | 2 |
| 7 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 6 |
| 8 | Bolt GB5785-M16*1.5*80flZnyc-12.9-480 | 4011010592 | 6 |
| 9 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 6 |
