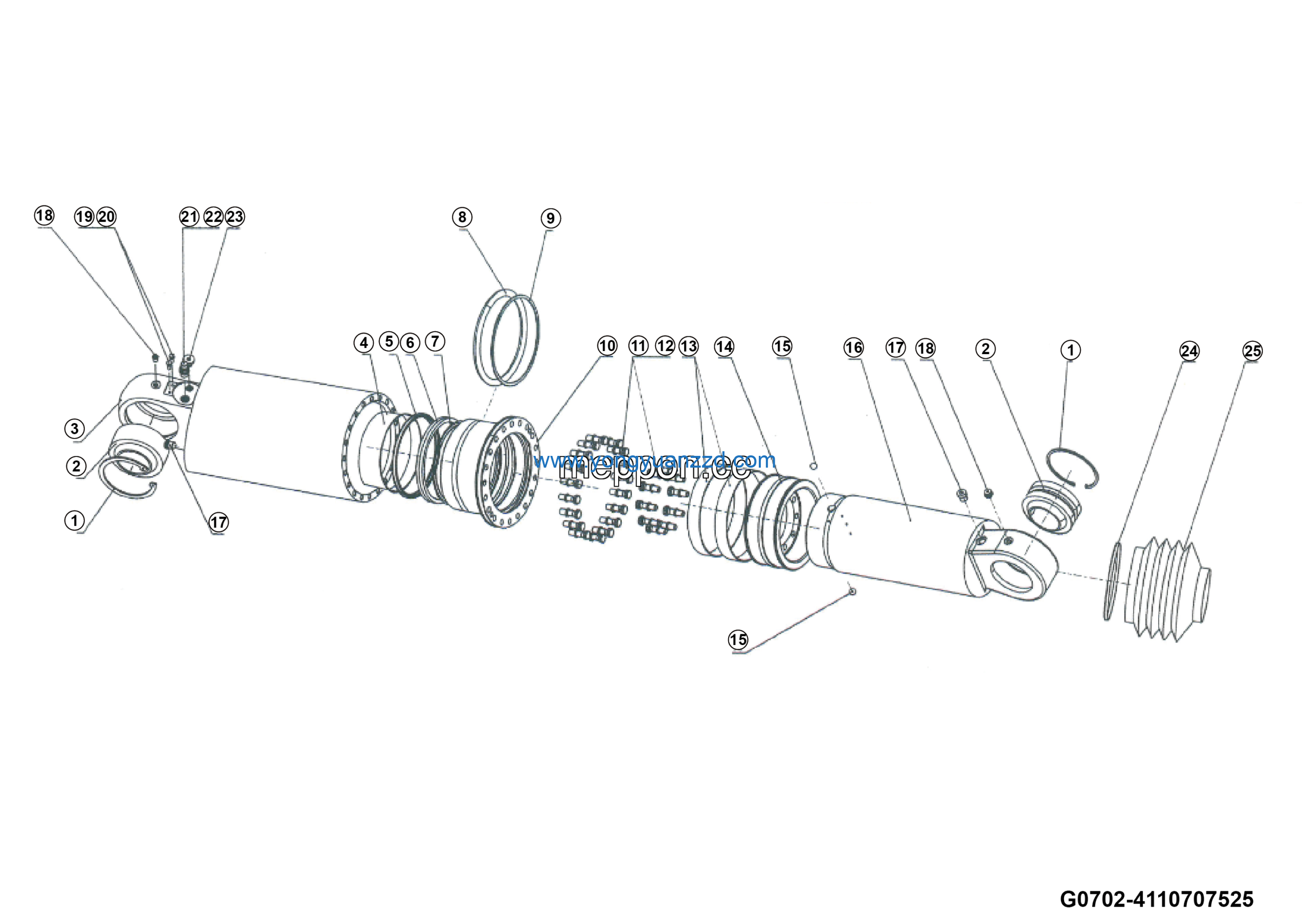

LGMG MT106H 2025 – Front hydro-pneumatic cyclinder assy lg12-d130d160l190m800（11513） – G0702-4110707525
Category: 2025 > MT106H > M106HW3A0M815
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Guide sleeve lgmt116h-006a | 4110707525109 | 1 |
| 2 | Bolt m10*40 | 4110707723012 | 28 |
| 3 | Washer GB93-10-65Mn | 4015000025 | 28 |
| 4 | Guide band 160*155*25 | 4110707525022 | 2 |
| 5 | Piston lgmt116h-001 | 4110707723018 | 1 |
| 6 | Steel ball 12 | 4110707525023 | 2 |
| 7 | Piston rod wldmt lgmt116h-11 | 4110707525024 | 1 |
| 8 | ED block 1104040957 | 4110705000002 | 2 |
| 9 | Grease nipple m8*1 | 4110707723014 | 2 |
| 10 | Washer m6 | 4110707954021 | 2 |
| 11 | Retaining ring 1108110016 | 4110705000016 | 2 |
| 12 | Bolt m6*16 | 4110707954022 | 2 |
| 13 | Gas charging valve | 4110705002005 | 1 |
| 14 | O-ring 1104040507 | 4110705000013 | 1 |
| 15 | Ed plug g1/4 | 4110707954025 | 1 |
| 16 | Clamp 190-210 | 4110707525025 | 1 |
| 17 | Dust shield 200*135*300 | 4110707524125 | 1 |
| 18 | Bearing 1104040169 | 4110705000017 | 2 |
| 19 | Cylinder barrel wldmt lgmt116h-12 | 4110707524103 | 1 |
| 20 | Guide band 138*130*40 | 4110707525104 | 1 |
| 21 | Stepseal 130*150.5*8.1 | 4110707723005 | 1 |
| 22 | U-ring 130*150*16.5 | 4110707723006 | 1 |
| 23 | Dust seal 130*145*8.5 | 4110707525021 | 1 |
| 24 | O-ring 145.42*7 | 4110707723007 | 1 |
| 25 | Protection ring 160*149.4*2.5 | 4110707723008 | 1 |
