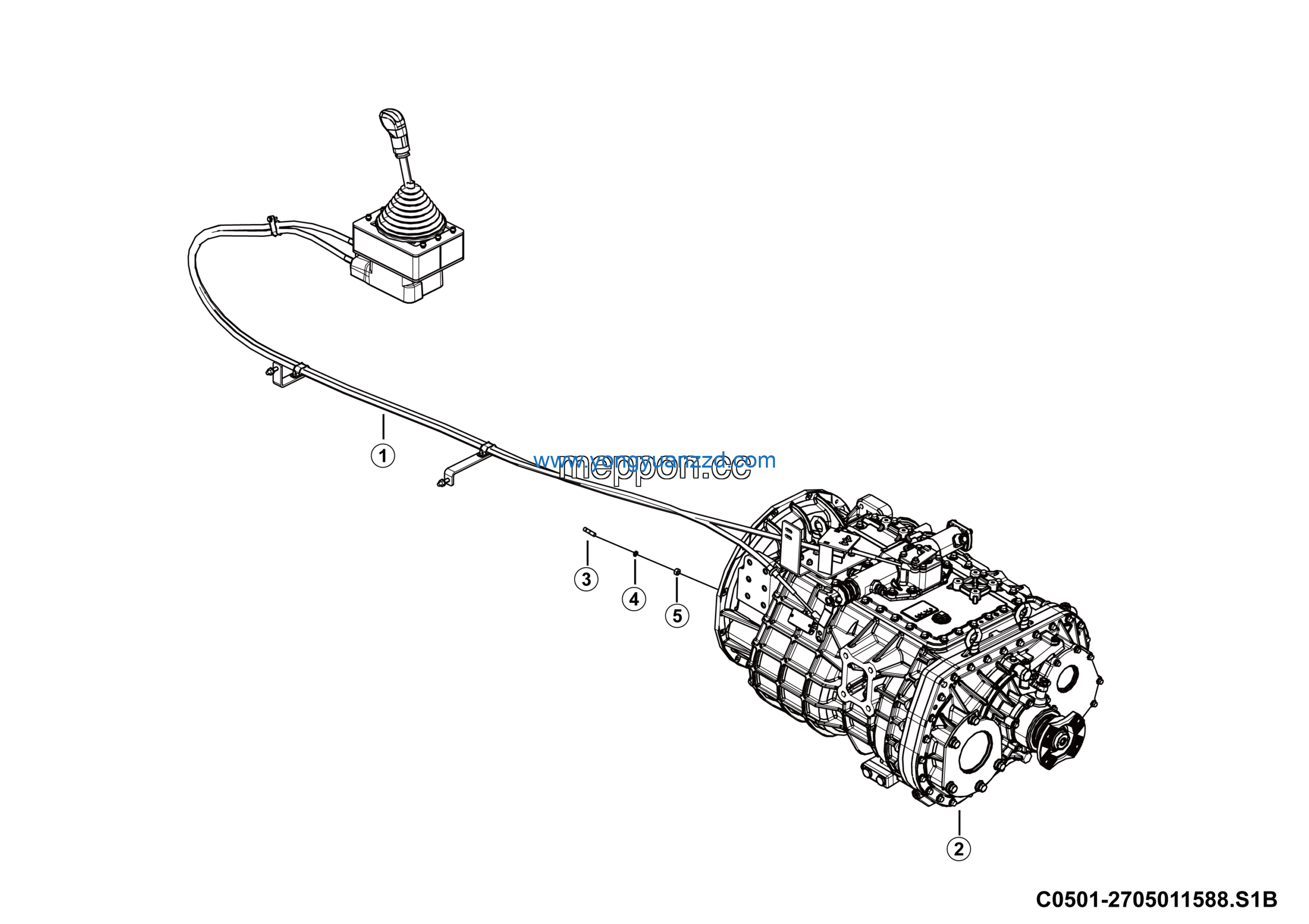

LGMG MT106H 2025 – Gear-box assembly – C0501-2705011588.S1B
Category: 2025 > MT106H > M106HW3A0M806
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Shift-control assembly | 27050121071 | 1 |
| 2 | Transmission box assy 8DS280 | 4110706144 | 1 |
| 3 | Stud GB899-A M10*30EpZn-8.8 | 4012010108 | 12 |
| 4 | Washer GB93-10-65Mn | 4015000025 | 12 |
| 5 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
