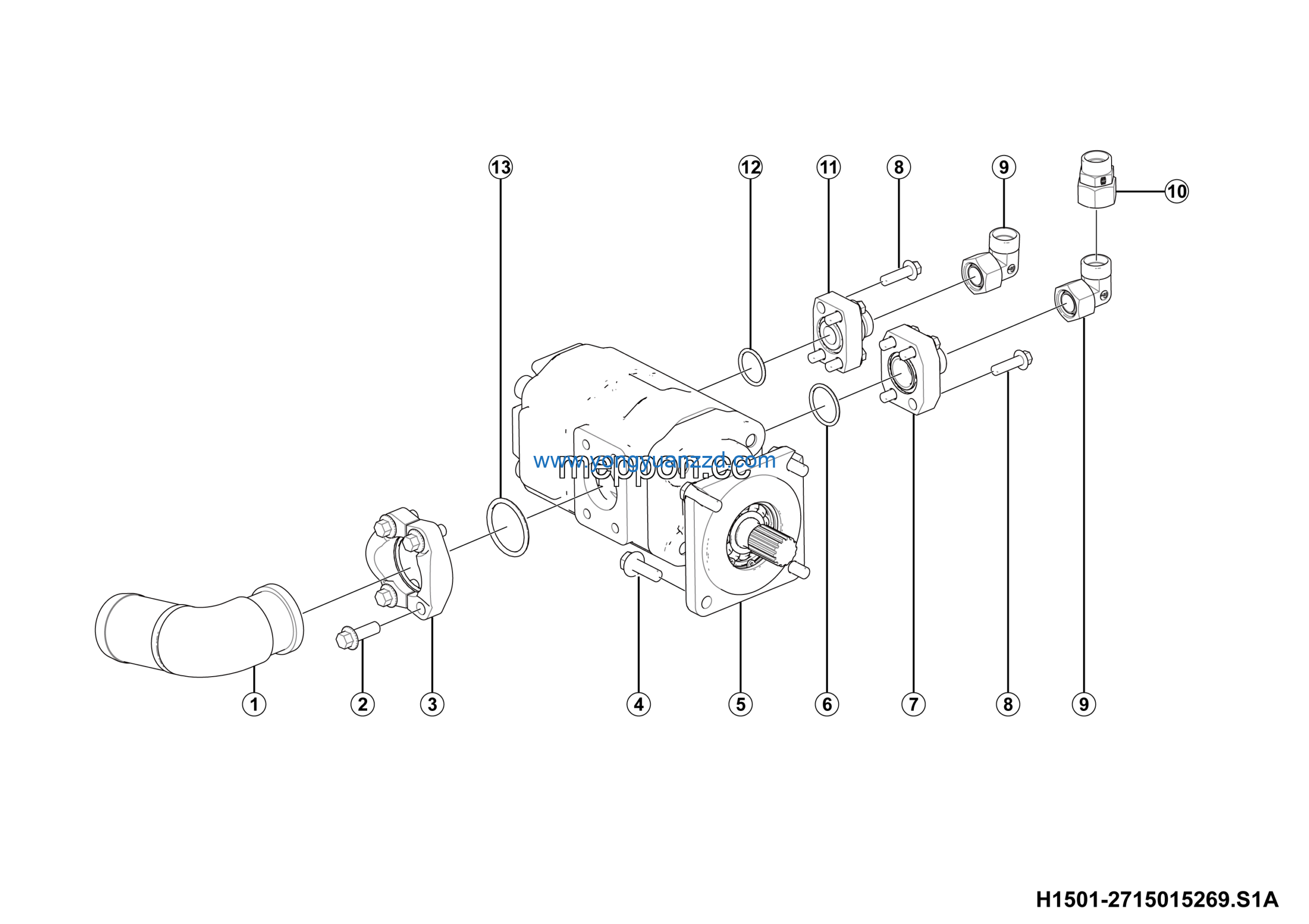

LGMG MT106H 2025 – Gear pump assy – H1501-2715015269.S1A
Category: 2025 > MT106H > M106HY3A0M304
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Joint DA22LOMDCF | 4120710847 | 1 |
| 2 | Joint | 27150123831 | 1 |
| 3 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 1 |
| 4 | O-ring GB3452.1-56.0*3.55G | 4030000133 | 1 |
| 5 | Oil suction pipe wldmt 01 | 27150152731 | 1 |
| 6 | Bolt GB16674.1-M12*35EpZn-8.8 | 4011000477 | 4 |
| 7 | Split flange LGB117-320760 | 4041000009 | 1 |
| 8 | Bolt GB5789-M12*35flZnyc-12.9-480 | 4011011844 | 4 |
| 9 | Gear pump 63/50-lg02 | 4120716796 | 1 |
| 10 | O-ring GB3452.1-37.5*3.55G | 4030000029 | 1 |
| 11 | Joint | 27150123841 | 1 |
| 12 | Bolt GB16674.1-M10*35EpZn-8.8 | 4011000164 | 8 |
| 13 | Combination joint LGB143-03019 | 4041001262 | 2 |
