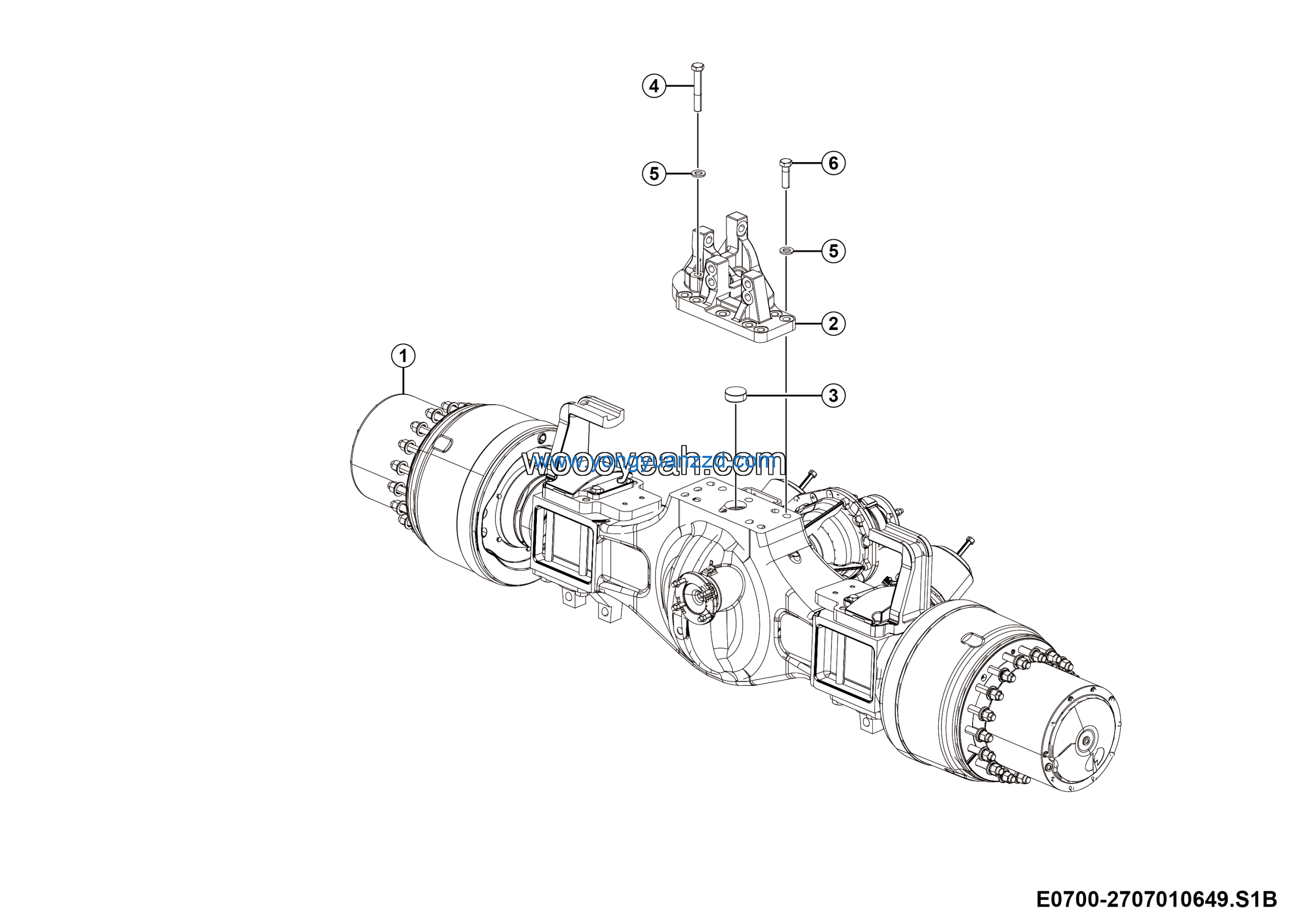

LGMG MT106H 2025 – Mid axle mounting assy hd40t（i=16.641） – E0700-2707010649.S1B
Category: 2025 > MT106H > M106HW3A0M805
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Mid axle assy HD40T（i=16.641） | 4110703133 | 1 |
| 2 | Support saddle | 27070104543 | 1 |
| 3 | Locating pin | 27070101441 | 1 |
| 4 | BOLT GB5785-M24*2*150-8.8 | 4011000117 | 1 |
| 5 | Washer | 27120111491 | 11 |
| 6 | Bolt GB5785-M24*2*80-12.9 | 4011011654 | 10 |
