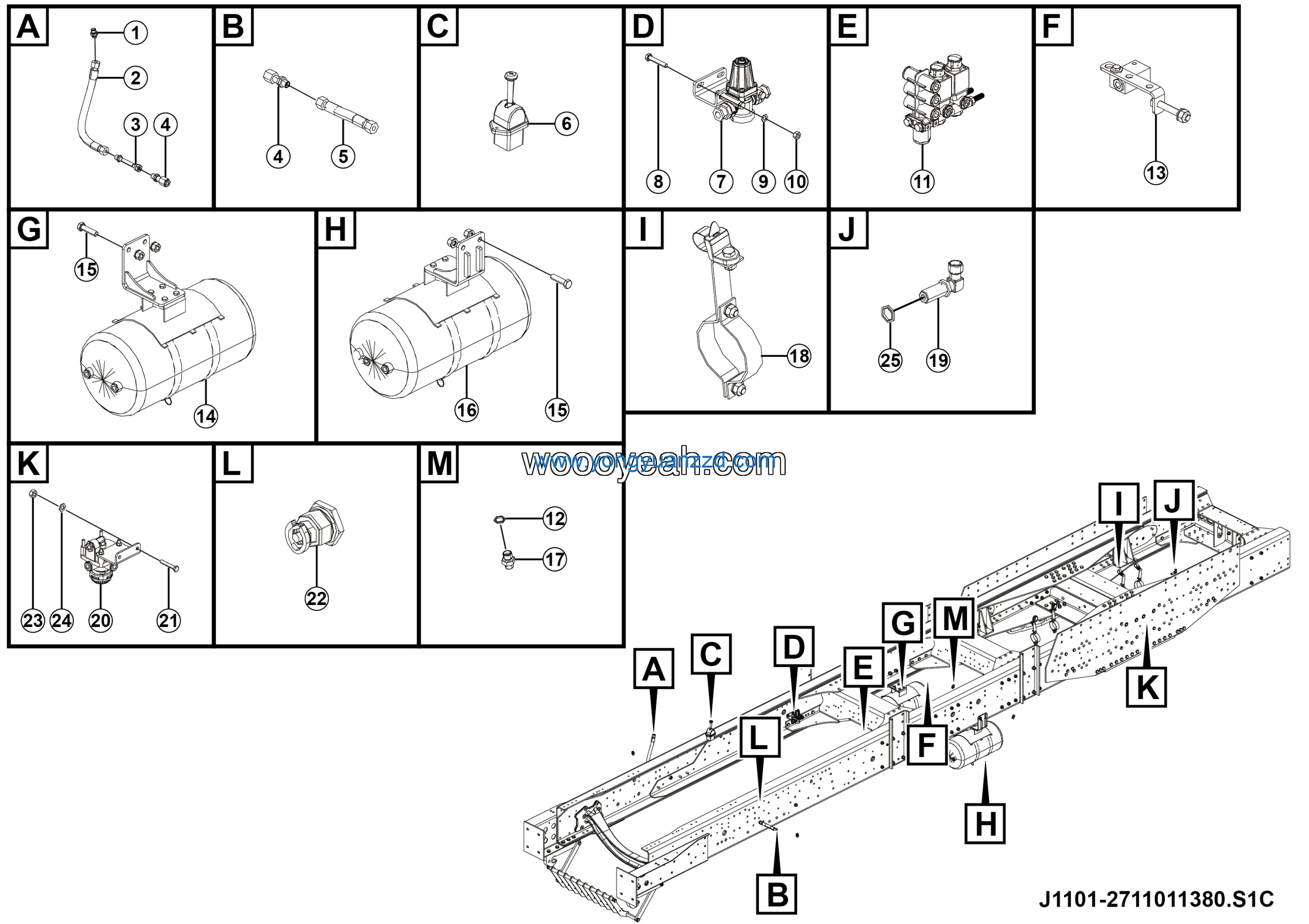

LGMG MT106H 2025 – Parking brake assembly – J1101-2711011380.S1C
Category: 2025 > MT106H > M106HW3A0M811
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 2 | Asm | 27110113131 | 1 |
| 3 | Washer JB982-12 | 4015000327 | 1 |
| 4 | Plate | 27110113001 | 1 |
| 5 | Installation assembly | 27110107581 | 1 |
| 6 | Bolt GB5782-M16*65EpZn-10.9 | 4011010012 | 4 |
| 7 | Module installation assembly | 27110113441 | 1 |
| 8 | Joint M12-M12 | 27110101331 | 1 |
| 9 | Asm-trachea fixing support assembly | 27110113671 | 4 |
| 10 | M16-M18 rectangular connector | 27100100641 | 2 |
| 11 | CONNECTOR | 27100100661 | 4 |
| 12 | Relay valve installation assembly | 27100117061 | 1 |
| 13 | Bolt GB5782-M10*60EpZn-8.8 | 4011000050 | 2 |
| 14 | Nut seat | 27110107611 | 1 |
| 15 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 16 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 17 | Washer JB982-16 | 4015000141 | 6 |
| 18 | TRACHEAL | 27100103591 | 1 |
| 19 | Steel pipe assembly | 27110102931 | 1 |
| 20 | Nipple | 27100118011 | 2 |
| 21 | Air pipe GPU-13-I-800-SG | 27100104361 | 1 |
| 22 | Hand brake valve | 4120000134 | 1 |
| 23 | Pressure limiting valve installation assembly | 27110106211 | 2 |
| 24 | Bolt GB5783-M8*50EpZn-8.8 | 4011000702 | 4 |
| 25 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
