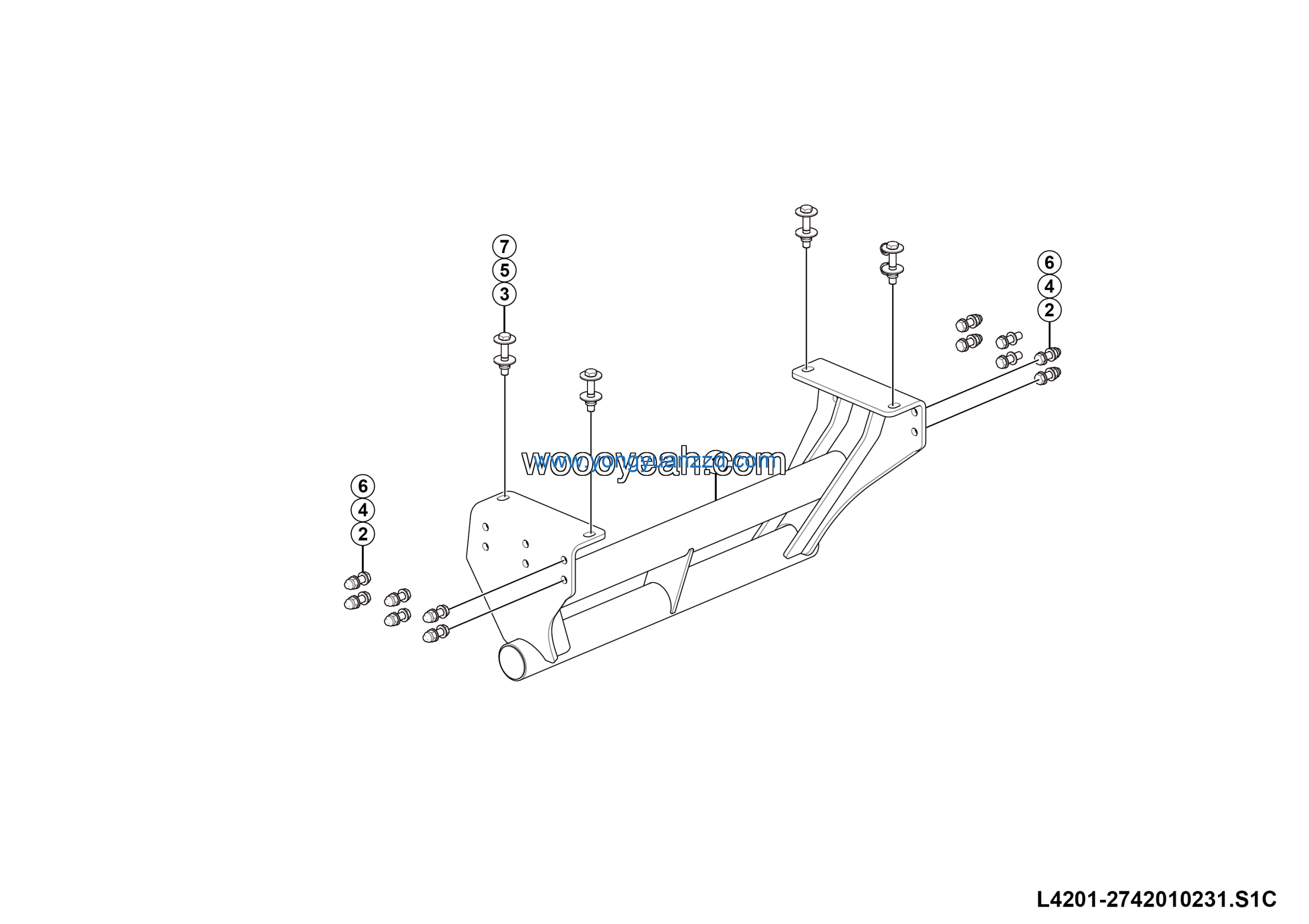

LGMG MT106H 2025 – Rear guard assembly – L4201-2742010231.S1C
Category: 2025 > MT106H > M106HW3A0A201
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27420100632 | 1 |
| 2 | Bolt GB5783-M16*55flZnyc-10.9-480 | 4011010865 | 12 |
| 3 | Bolt GB5785-M16*1.5*90flZnyc-12.9-480 | 4011010558 | 4 |
| 4 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 5 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 6 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 24 |
| 7 | Washer GB96.1-16flZnyc-300HV-480 | 4015010334 | 8 |
